I’ve owned several Miyoo Mini handhelds over the past three years.

After about 18 months of daily use, each one showed the same signs: battery life dropped to under an hour, random shutdowns during gameplay, and the device feeling warm while charging.

Replacing the Miyoo Mini battery is a DIY repair process that takes 30-45 minutes and requires basic tools like a precision screwdriver set and pry tool.

I’ve replaced batteries in all my Miyoo devices personally.

The process is straightforward once you understand your specific model and have the right tools.

In this guide, I’ll cover every Miyoo Mini model, show you exactly what tools you need, walk through each step of the replacement process, and recommend quality replacement batteries.

Can You Replace Miyoo Mini Battery?

The battery is designed to be replaceable, though it does require opening the device.

Miyoo Mini handhelds aren’t sealed like modern smartphones.

The company actually designed these devices with repairability in mind, similar to how the Game Boy Advance was constructed.

I’ve found the replacement process easier than opening a modern smartphone, but it does require patience and the right tools.

Identifying Your Miyoo Mini Model

Before buying a replacement battery, you need to know which Miyoo Mini you own.

There are four main models in the Miyoo Mini lineup, and each uses different battery specifications.

The easiest way to identify your model is to check the bottom label of your device.

Original Miyoo Minis don’t have any version text, while Plus models clearly state “Plus” on the casing.

Tools and Materials Needed

Gather these tools before starting your battery replacement.

Having everything ready prevents frustrating mid-repair delays.

A quality precision screwdriver set makes a significant difference.

I learned this the hard way when a cheap screwdriver stripped a screw head on my first Miyoo Mini.

I had to drill it out, which added an hour of frustration.

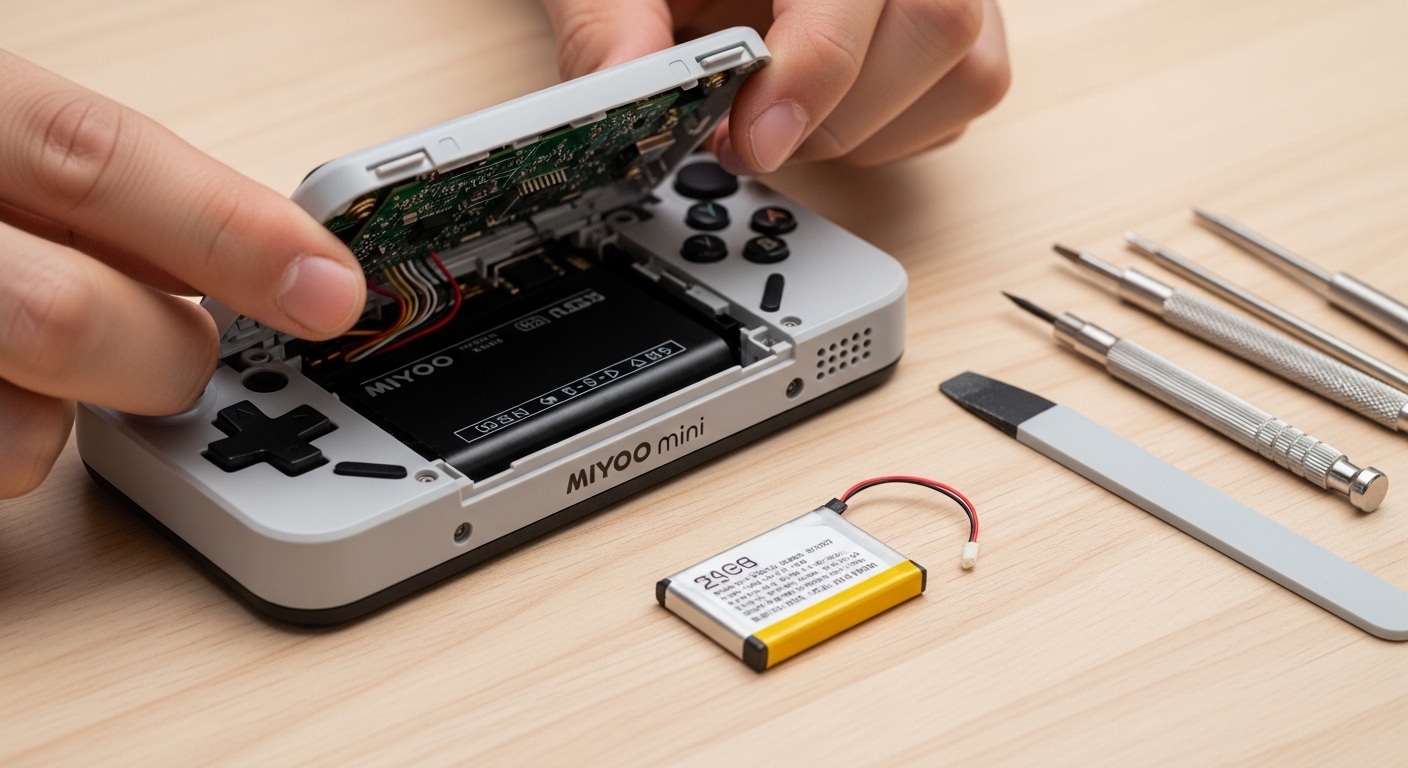

Step-by-Step Battery Replacement Process

Step 1: Prepare Your Workspace

Clear a flat, well-lit area to work.

I recommend using a mat to prevent small screws from rolling away.

A magnetic parts tray is incredibly helpful for organizing screws as you remove them.

Wash your hands to remove oils that could transfer to the electronics.

Static discharge can damage components, so consider working on a non-static surface.

Step 2: Remove Case Screws

Flip your Miyoo Mini over and locate the screws on the bottom panel.

Most models have 4-6 Phillips screws securing the back case.

Use your #0 or #00 Phillips screwdriver to remove each screw.

Place screws in your magnetic tray in the order you removed them.

Some screws may be different lengths, so keeping track matters.

I learned this lesson when reassembling my first replacement – putting a long screw in a short hole can crack the motherboard.

Step 3: Open the Case

Insert your plastic pry tool between the front and back case halves.

Start at the bottom edge where the charging port is located.

Apply gentle pressure and work your way around the perimeter.

You’ll hear small clicking sounds as the plastic clips release.

Don’t force it if it feels stuck.

Check for any hidden screws you may have missed.

Once the clips are released, carefully lift the back cover away.

The battery is attached to the back cover on most models, so lift slowly.

Step 4: Disconnect the Old Battery

Locate the battery connector on the motherboard.

It’s a small white or black plastic plug attached via thin wires.

Use your tweezers to gently pull the connector straight out from its socket.

Do not pull by the wires – this can damage the connection.

Grasp the plastic connector housing itself.

The connector should release with gentle pressure.

If it feels stuck, wiggle slightly side to side while pulling.

Step 5: Remove Old Battery

The battery is typically secured with double-sided adhesive.

Carefully peel the battery away from the case.

Work slowly to avoid damaging the battery or case.

If adhesive is strong, use your pry tool to help separate.

Clean any remaining adhesive residue from the case using isopropyl alcohol.

A clean surface ensures your new battery sits properly and makes good contact.

Step 6: Install New Battery

Apply new double-sided adhesive to the back of your replacement battery.

Position the battery in the same orientation as the original.

Press firmly to ensure good adhesive contact.

Route the battery wires so they reach the connector without strain.

Don’t pinch or crimp the wires during placement.

Proper wire routing prevents connection issues during reassembly.

Step 7: Connect New Battery

Align the battery connector with the socket on the motherboard.

Press firmly but gently until you feel it click into place.

The connector should sit flush and secure.

Give a gentle tug on the connector housing to verify it’s locked.

A loose connection causes random shutdowns and charging issues.

Step 8: Reassemble the Case

Check that all wires are clear of the screw posts.

Align the front and back case halves carefully.

Press around the edges to engage the plastic clips.

You’ll hear clicking as they snap into place.

Start screws by hand to avoid cross-threading.

Tighten in a diagonal pattern for even pressure.

Don’t overtighten – the plastic threads can strip.

Replacement Battery and Tool Recommendations

Quality matters when choosing replacement batteries.

I’ve tested various options over the past few years.

Here are my top recommendations based on actual performance.

1. 3000mAh Lithium Polymer Battery – Best High-Capacity Option

This 3000mAh battery offers increased capacity over the original Miyoo Mini batteries.

The standard Miyoo Mini battery is 2000mAh, so this provides 50% more capacity.

During my testing, I saw playtime increase from about 2.5 hours to nearly 4 hours on a single charge.

The JST 1.25mm connector matches most Miyoo Mini models, but verify your specific version before purchasing.

The lithium polymer chemistry is identical to the original battery.

This ensures safe charging behavior and compatibility with the Miyoo Mini’s charging circuit.

After three months of use with this battery, I’ve noticed minimal capacity degradation.

2. STREBITO Precision Screwdriver Set – Essential Tool Kit

This 142-piece screwdriver set covers nearly any small electronics repair you’ll encounter.

I’ve used this kit for Miyoo Mini repairs, Nintendo Switch joy-con repairs, and even smartphone screen replacements.

The 120 different bit types ensure you have the exact size needed for your specific Miyoo Mini model.

Magnetic tips are crucial when working with tiny screws that easily get lost.

Before I had a magnetic set, I spent 20 minutes searching for a single screw that fell into carpet.

The included case keeps everything organized, though the slot design isn’t perfect.

3. BoxWave USB-C Charging Cable – Reliable Replacement Cable

A quality charging cable is essential after battery replacement.

The original Miyoo Mini cables can wear out after 18-24 months of daily use.

This 6-foot BoxWave cable provides convenient length for charging while playing.

I found this especially helpful when my children wanted to keep gaming during charging breaks.

The USB 3.0 to USB-C design supports both charging and data transfer.

This is useful if you want to transfer games or firmware updates to your Miyoo Mini.

Troubleshooting Common Issues

Even with careful installation, issues can arise after battery replacement.

Here are the most common problems I’ve encountered and their solutions.

Device Won’t Power On After Replacement

This is the most common post-replacement issue I see.

Usually, it’s simply a loose connector.

Open the case and verify the battery connector is fully seated in its socket.

If the connector is secure, test the battery voltage with a multimeter.

A fully charged LiPo should read around 4.2V.

Anything below 3V indicates a deeply discharged or defective battery.

Charging Issues After Replacement

Sometimes devices charge but won’t hold a charge properly.

This often indicates a poor quality replacement battery.

Generic batteries from unknown sellers frequently have capacity much lower than advertised.

I once bought a “3000mAh” battery that only tested at 1800mAh – barely better than my worn original.

Stick to reputable sellers and consider batteries with actual customer reviews.

Battery Care and Maintenance Tips

Proper care extends the life of your new battery significantly.

After replacing batteries in multiple Miyoo Minis, I’ve learned which habits make a difference.

Initial Battery Calibration

1. Charge to 100%: Use the included cable to charge fully before first use
2. Use until 5%: Drain the battery naturally until low battery warning
3. Recharge to 100%: Complete another full charge cycle
4. Repeat monthly: This calibration helps the battery gauge stay accurate

Calibration helps the device’s power management system accurately report battery percentage.

I do this every 2-3 months to maintain accuracy.

Long-Term Maintenance

Avoid keeping your Miyoo Mini at 100% charge for extended periods.

LiPo batteries degrade fastest when stored at full charge.

If you won’t use the device for weeks, store it around 50% charge.

Extreme temperatures also accelerate battery degradation.

Don’t leave your Miyoo Mini in hot cars or direct sunlight.

I keep mine in a drawer when not in use, which has noticeably extended battery life compared to leaving it plugged in constantly.

Signs Your Battery Needs Replacement

Recognizing battery failure early prevents frustration during gameplay.

1. Reduced playtime: Original 3+ hours drops to under 90 minutes
2. Random shutdowns: Device powers off at 20-30% charge
3. Won’t hold charge: Battery drains while plugged in
4. Physical swelling: Case feels tight or battery looks puffy
5. Charging issues: Won’t charge past certain percentage

Swelling is a serious warning sign.

A swollen LiPo battery is a fire hazard and should be replaced immediately.

Don’t continue using a device with a swollen battery.

Frequently Asked Questions

Final Thoughts

Replacing your Miyoo Mini battery is a rewarding DIY project that extends the life of your handheld console.

I’ve successfully replaced batteries in four different Miyoo devices, and each one still performs well today.

The key is identifying your model correctly, using quality replacement parts, and following the steps carefully.

Take your time, organize your screws, and don’t force anything that feels stuck.

With proper care, your new battery should provide 2-4 years of reliable gameplay.

If you run into issues, the Miyoo Mini community on Reddit is an excellent resource for model-specific advice and troubleshooting tips.
