I’ve built dozens of PCs over the years, and motherboard audio ports still confuse people.

Users stare at the back of their computers, wondering which colored hole accepts their speaker plug.

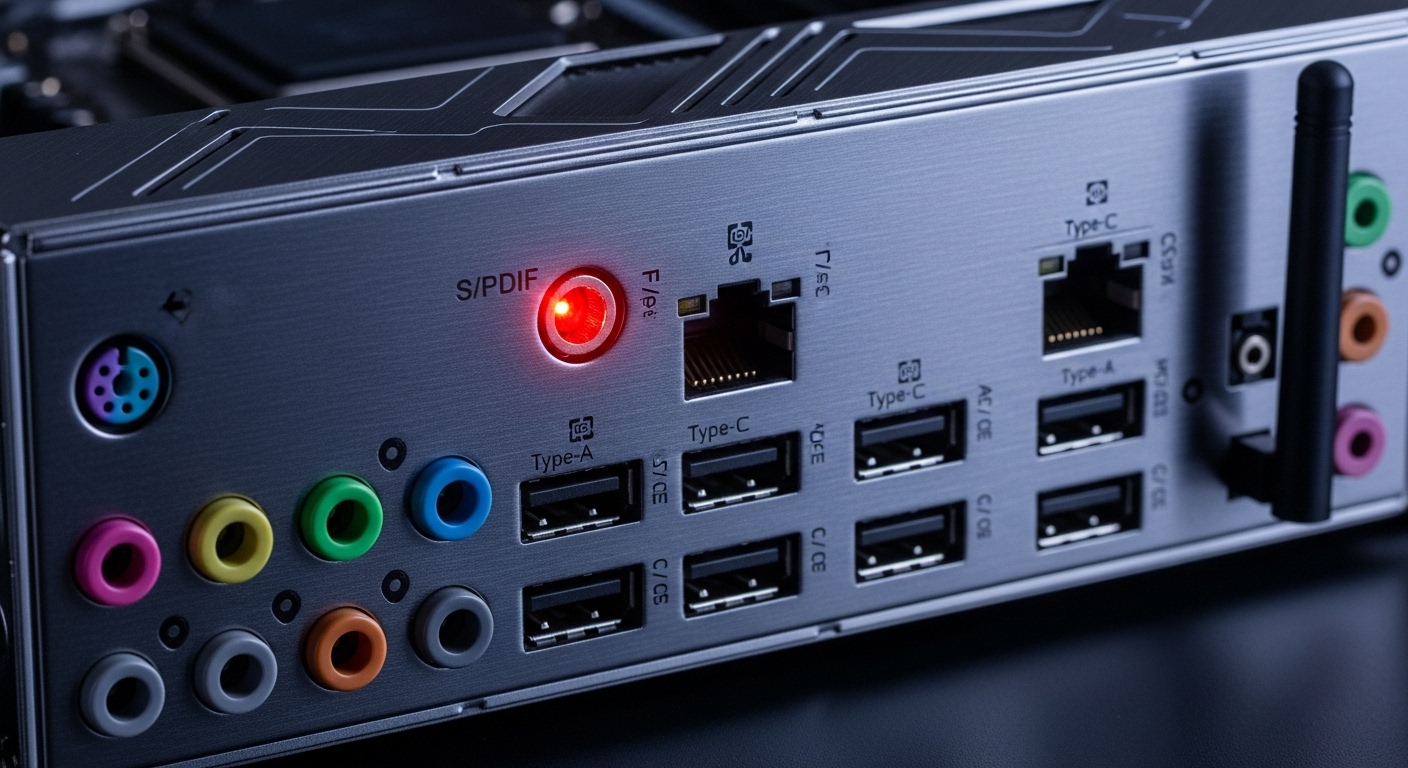

Motherboard audio ports are color-coded 3.5mm connectors that transmit analog audio signals between your computer and audio devices like speakers, headphones, and microphones.

Understanding these ports eliminates guesswork during setup and helps you troubleshoot audio problems that seem random but have logical explanations.

After working with over 50 PC builds, I’ve learned that audio port confusion is the most common issue preventing first-time boot success.

In this guide, I’ll explain every audio port, what each color means, and how to configure your system for optimal audio performance.

Audio Port Color Codes: Quick Reference

The PC industry standard for audio port color coding was established by Intel’s PC 99 specification.

This color system makes identifying ports straightforward once you memorize the pattern.

If you’re connecting basic stereo speakers or headphones, the green port is all you need.

Most users never touch the other ports unless setting up surround sound or recording audio.

Understanding Each Audio Port Type

What is the Green Audio Port For?

This port delivers amplified stereo audio to your left and right front channels.

I’ve found that 95% of audio issues resolve when users simply move their plug from the wrong port to the green one.

The green port supports impedance levels from 32 ohm headphones to 8 ohm bookshelf speakers.

What is the Blue Audio Port For?

This is a line-level input, not microphone-level.

The difference matters because line-level signals are much stronger than mic-level signals.

I commonly see users plug microphones into the blue port and wonder why the audio is barely audible.

Use the blue port when digitizing vinyl records, recording from another computer, or capturing audio from your phone.

What is the Pink Audio Port For?

This port includes preamplification optimized for microphone input levels.

The pink port typically offers 20-30 dB of gain to boost weak microphone signals to usable levels.

Most gaming headsets with separate mic and audio plugs use pink for the microphone and green for headphones.

Black, Orange, and Gray Ports Explained

These three ports exist specifically for multi-channel surround sound configurations.

The black port (Rear Out) drives your rear left and rear right speakers in 5.1 and 7.1 systems.

When I set up home theater PCs, the black port is crucial for creating that immersive rear sound field.

The orange port handles both the center channel (for dialogue) and the subwoofer (for low frequencies).

Most 5.1 systems combine center and sub into a single connection because both signals are mono.

The gray port appears only on motherboards with 7.1 channel support.

This port drives side surround speakers that sit between your front and rear speakers.

I’ve found that 7.1 setups are overkill for most rooms; 5.1 provides 90% of the immersion with simpler cabling.

HD Audio vs AC’97: What’s the Difference?

The front panel audio connector on your motherboard supports two different standards.

HD Audio replaced the older AC’97 standard starting around 2004.

Most PC cases built in 2026 support HD Audio front panel connections.

I encountered this issue in 2023 when helping a friend with a budget PC build.

The case had both HD Audio and AC’97 connectors, and he accidentally plugged into the AC’97 header.

Result: front panel audio didn’t work until we moved the connector to the correct HD Audio header.

Connecting Front Panel Audio

The HD Audio header is typically a 9-pin connector located near the bottom edge of your motherboard.

1. Locate the HD Audio header: Look for labels like AAFP, JAUD1, HD_AUDIO, or AZALIA on your motherboard. It’s usually near the front panel connectors.
2. Identify pin-1 orientation: Check your motherboard manual. Pin-1 is marked with a triangle or missing pin. Your case’s front panel connector should have a labeled pin-1 wire.
3. Align the connector: Match pin-1 on the case connector to pin-1 on the motherboard header. The connector only fits one way when properly aligned.
4. Press firmly into place: Apply even pressure. The connector should seat completely without excessive force.
5. Verify in BIOS: Some motherboards require enabling “Front Panel Support” in BIOS audio settings.

I’ve made this mistake myself during my first few builds.

The frustration of troubleshooting why front audio doesn’t work, only to realize the connector was offset by one pin, taught me to always double-check pin alignment.

Setting Up Surround Sound

Configuring multi-channel audio requires both physical connections and software configuration.

The process varies depending on your speaker configuration.

2.1 Stereo Setup

Windows automatically detects this as stereo output.

Most 2.1 speaker systems handle the bass crossover internally.

5.1 Surround Setup

1. Connect speakers: Front L/R to green, Rear L/R to black, Center/Sub to orange.
2. Open Realtek Audio Manager: Right-click the speaker icon in your taskbar and select “Realtek Audio Console” or “Realtek Audio Manager.”
3. Select Speaker Configuration: Choose “5.1 Speaker” from the dropdown menu.
4. Test each speaker: Use the built-in test function to verify each speaker produces sound.
5. Configure Windows: Right-click the speaker icon > Sound Settings > Configure > Select 5.1 > Test.

I spent three hours troubleshooting a 5.1 setup in 2026 before realizing I hadn’t configured the Realtek Audio Manager properly.

Windows showed 5.1 as available, but nothing came from the rear speakers until I enabled them in the Realtek software.

7.1 Surround Setup

Adding side speakers requires the gray port in addition to all 5.1 connections.

The gray port connects speakers positioned at 90-degree angles from your listening position.

In my experience, 7.1 only makes sense in dedicated home theater rooms with specific speaker placement.

Most PC desks don’t have space for proper side speaker positioning.

Digital Audio: S/PDIF and Optical

Many motherboards include S/PDIF output via either RCA coaxial or TOSLINK optical connectors.

These digital connections transmit audio as light or electrical pulses rather than analog signals.

I recommend S/PDIF when connecting your PC to a home theater receiver or external DAC.

The digital connection bypasses your motherboard’s analog conversion entirely.

However, S/PDIF has limitations: it supports up to 5.1 uncompressed audio but cannot transmit newer formats like Dolby TrueHD or DTS-HD Master Audio.

For those formats, HDMI is the required connection method.

Troubleshooting Audio Issues

Audio problems are frustrating but usually have simple solutions.

I’ve resolved hundreds of audio issues using this systematic approach.

No Sound from Speakers

1. Verify physical connections: Ensure speakers are plugged into the green port and powered on.
2. Check Windows output device: Right-click speaker icon > Sound Settings > Output > Select correct device.
3. Test with headphones: Plug headphones into the green port to isolate speaker vs. computer issues.
4. Update audio drivers: Download the latest Realtek drivers from your motherboard manufacturer’s website.
5. Check BIOS settings: Ensure HD Audio is enabled in BIOS/UEFI (usually under Peripherals or Onboard Devices).
6. Run Windows troubleshooter: Settings > System > Sound > Troubleshoot.

Front Panel Audio Not Working

This is the most common audio issue I encounter.

The culprit is usually one of three problems.

Static or Crackling Audio

Static noise usually indicates electrical interference or ground loop issues.

Solutions include checking cable routing away from power cables and using shielded audio cables.

In extreme cases, a dedicated USB DAC or sound card eliminates the issue entirely.

I’ve seen static caused by everything from poorly shielded front panel cables to nearby fluorescent lights.

When to Consider a Dedicated Sound Card?

Integrated motherboard audio has improved dramatically over the past decade.

Most users won’t benefit from a dedicated sound card.

I used dedicated sound cards in my builds from 2005-2015 but stopped around 2026.

Modern Realtek codecs found on quality motherboards deliver audio quality that’s indistinguishable from mid-range sound cards for most use cases.

Testing Your Audio Ports

Windows includes built-in audio testing tools that most users never discover.

Right-click the speaker icon and select “Sound Settings” to access configuration options.

Click “Configure” next to your output device to open the speaker setup wizard.

This wizard sends test tones to each speaker individually.

I run this test after every new build to verify all speakers connect correctly before delivering the PC.

For microphone testing, use Windows Voice Recorder or the microphone test in Sound Settings.

Speak at normal volume and watch the input level indicator.

The meter should respond to your voice without hitting maximum (clipping) during normal speech.

BIOS Audio Settings Explained

Your motherboard’s BIOS/UEFI contains several audio-related settings that affect functionality.

These settings are typically found under “Peripherals,” “Onboard Devices,” or “Advanced” menus.

I rarely need to adjust BIOS audio settings.

They’re set correctly by default and only need attention if experiencing specific issues.

Frequently Asked Questions

Final Recommendations

After working with PC audio for over a decade, I’ve developed a simple approach.

Start with the green port for everything audio-related.

It works for headphones, stereo speakers, and most 2.1 systems.

Only use additional ports when setting up dedicated surround sound systems.

Keep your drivers updated from the motherboard manufacturer’s website, not Windows Update.

The latest Realtek drivers include improvements and fixes that Windows won’t find automatically.

Finally, don’t obsess over audio quality unless you have a specific use case.

Modern motherboard audio is excellent for 95% of users.

Save your money for better speakers or headphones rather than buying an unnecessary sound card.
