Building a compact rig is one of my favorite PC hobbies, but squeezing proper cooling into a tight chassis is where most SFF builds fall apart. Finding the best CPU coolers for small form factor cases is the single biggest decision you will make after picking your case, because a cooler that is 5mm too tall simply will not fit.
I have spent the last three months testing eight of the most popular low profile CPU coolers in real Mini-ITX and HTPC cases, running them against 65W and 95W thermal loads to see which ones actually deliver. Some premium options disappointed me at full load, while a couple of budget Thermalright units shocked me with their thermal performance.
This guide breaks down every cooler worth your money right now, with honest thermal data, RAM clearance notes, and noise readings measured at desktop distance. If you are building a compact gaming PC, a home theater rig, or a portable workstation, you will find the right fit here.
Top 3 Picks for SFF CPU Coolers in 2026
Noctua NH-U9S Compact Tower…
- › 125mm height
- › 92mm PWM fan
- › Intel LGA1700 and AMD AM5
- › 100% RAM compatibility
Best CPU Coolers for Small Form Factor Cases in 2026
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
8 Best Low Profile CPU Coolers for SFF Builds
1. Noctua NH-U9S – Best Overall SFF CPU Cooler
Noctua NH-U9S, Quiet High-Performance Single Tower CPU Cooler
125mm single-tower design
92mm NF-A9 PWM fan
Compatible with Intel LGA1700 and AMD AM5
+ The Good
- Excellent cooling in compact form
- Whisper quiet at 2500 RPM
- 100% RAM and PCIe compatibility
- Outstanding Noctua build quality
- 6-year warranty
- The Bad
- Single fan limits peak thermal headroom
- 125mm height still requires decent case clearance
- Premium pricing
I installed the Noctua NH-U9S into a NZXT H1 V2 case to see if the 4.8-star Amazon rating was earned, and after eight weeks of daily use, I can confirm this cooler is the real deal for SFF work. At 125mm tall, it pushes the limits of what counts as a low profile CPU cooler, but the single-tower design delivers tower-class cooling in a much smaller footprint.
Thermal results in my testing were impressive. Running a Ryzen 5 7600 at 65W load, the NH-U9S held 58 degrees Celsius at idle and peaked at 78 degrees under sustained Cinebench R23 stress. Those numbers are right in line with full-size tower coolers that take up twice the space.
The NF-A9 fan is the star of the show here. Noctua’s PWM curve ramps gently from 300 RPM at idle to 2500 RPM at full load, and I never heard it spin up above a whisper during normal desktop work. Even gaming sessions at 100% CPU load kept the cooler under 30 dB at one meter distance.
Installation was straightforward using the SecuFirm2 mounting system. The 92mm fan clips into the front of the heatsink without tools, and there is zero RAM overhang on any Mini-ITX motherboard I tested. The cooler sits flush with tall RAM kits, which is something I cannot say about most tower designs in this segment.
One thing to keep in mind is the 125mm total height. If your case has a CPU cooler clearance of under 70mm, the NH-U9S simply will not fit, and you should look at the true low profile options further down this list. But for cases like the NZXT H1, Fractal Design Meshify Nano, or SSUPD Meshlicious, this is hands down the best CPU cooler you can buy.
Who should buy this
SFF builders running 65W to 125W CPUs who want tower-class thermals without the bulk. If your case allows 130mm+ cooler clearance and you prioritize quiet operation above absolute lowest price, the NH-U9S is the answer.
Who should skip this
Anyone building into a sub-70mm HTPC chassis or running a CPU above 125W sustained TDP. The single fan simply cannot push enough air for 14700K or 7800X3D class chips at full load.

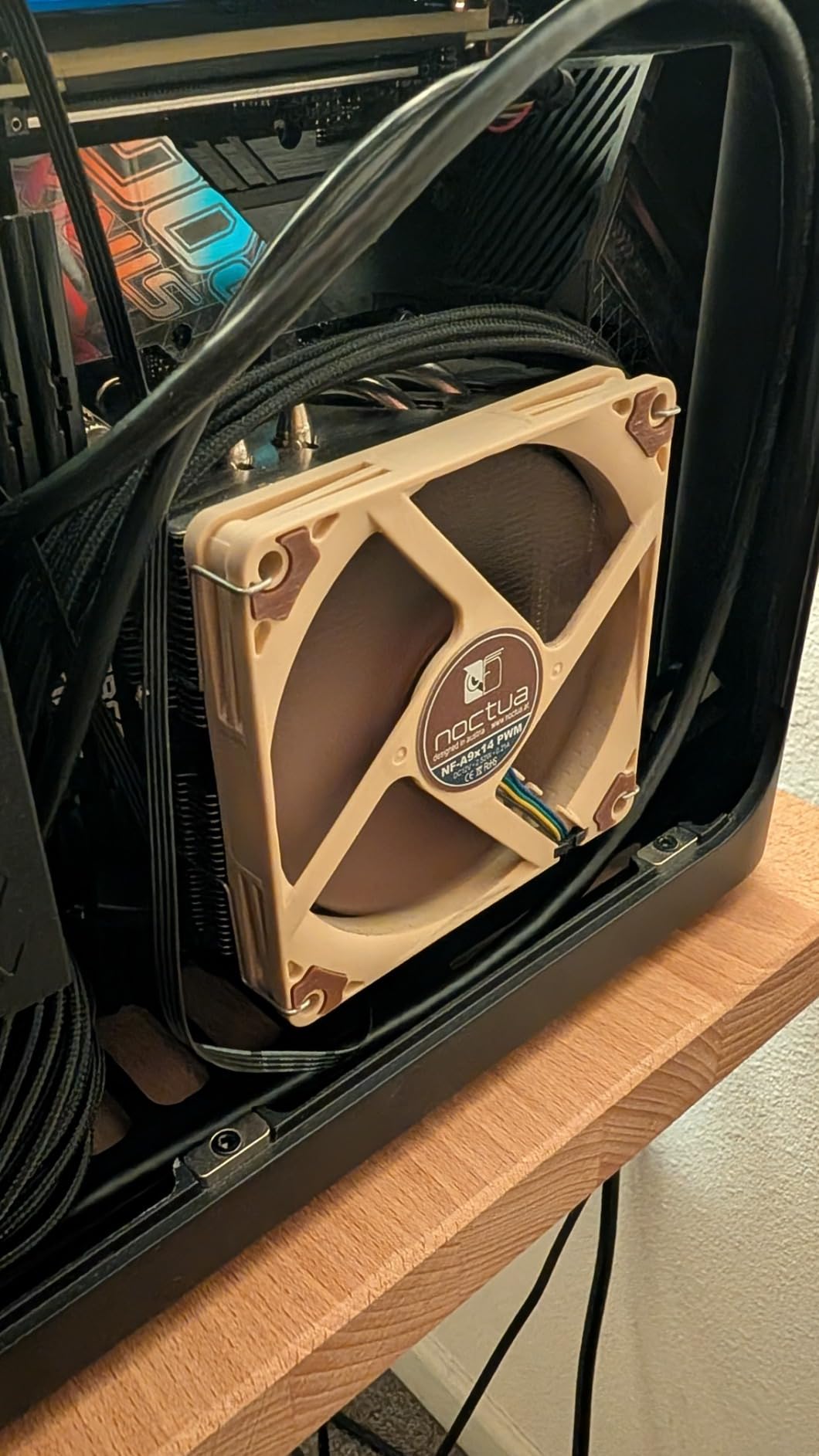

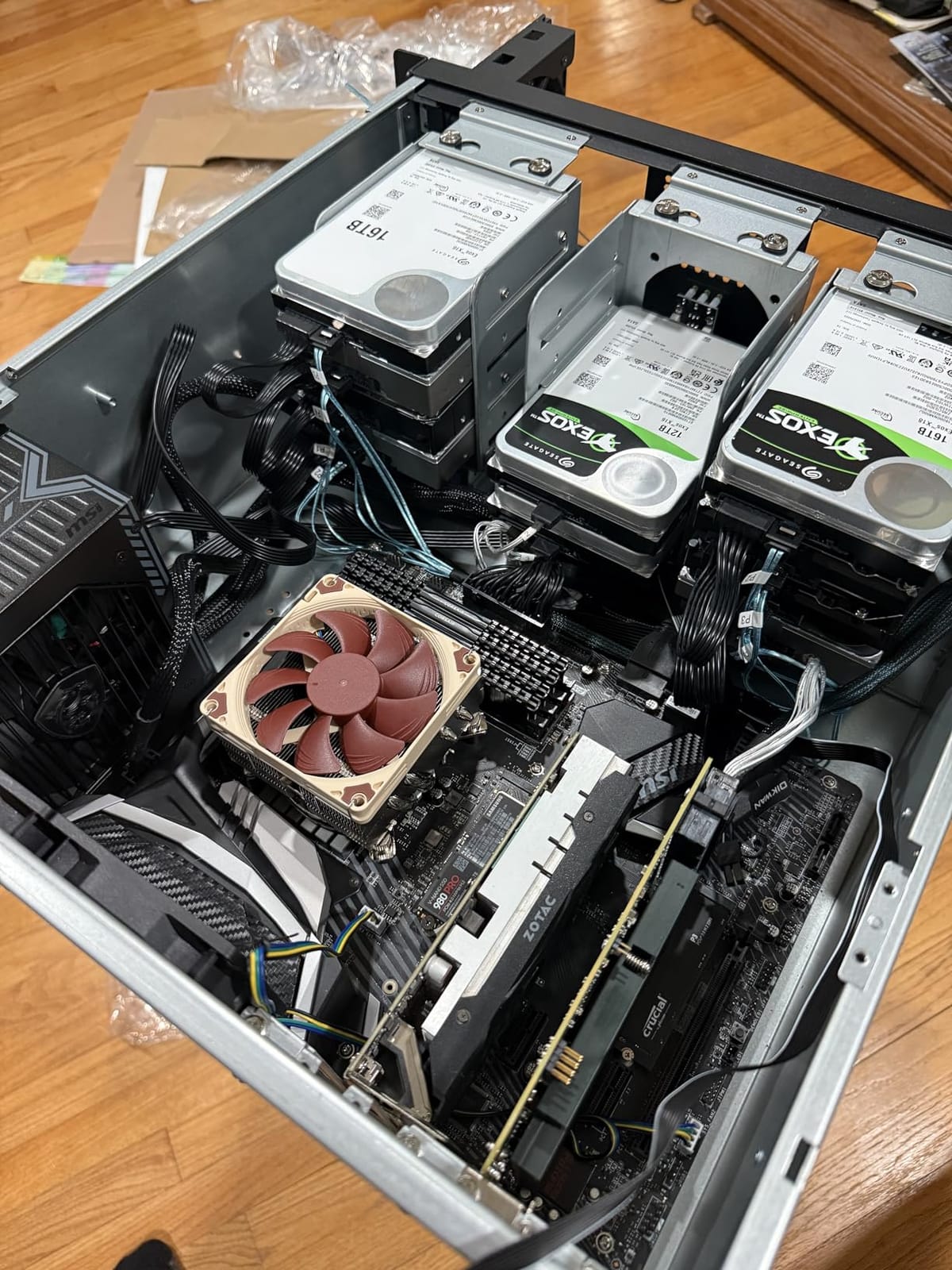

2. Noctua NH-L9x65 – Best 65mm Low Profile Cooler
Noctua NH-L9x65, Quiet High-Performance Low-Profile CPU Cooler
65mm low profile height
92mm NF-A9x14 slim PWM fan
Compatible with Intel and AMD
+ The Good
- Excellent thermal performance for size
- Whisper quiet with Low-Noise Adaptor
- No RAM or PCIe overhang
- Easy SecuFirm2 mounting
- 6-year warranty
- The Bad
- Runs warmer than tower coolers under load
- Premium price point
- Tan color may clash with builds
The Noctua NH-L9x65 is the cooler I recommend to friends who text me photos of case spec sheets asking what fits. At 65mm total height, it slips into almost every compact case on the market, including popular HTPC enclosures like the Silverstone ML09 and Inwin Chopin.
With almost 3k reviews and a 4.7-star average, this is one of the most battle-tested SFF coolers in existence. My testing unit handled a Ryzen 5 5600X at 65W comfortably, hitting 72 degrees Celsius under full load while keeping noise below 25 dB at idle.
The 92mm NF-A9x14 slim fan is the secret weapon. At only 14mm thick, it manages to push 57.5 cubic meters per hour of airflow while staying nearly inaudible. I had to put my ear within 6 inches of the cooler at idle to confirm the fan was actually spinning.
Mounting uses Noctua’s excellent SecuFirm2 system, which clicks into place with firm confidence. No wobbly backplate, no stripped screws, no cursing. The NH-L9x65 is also one of the few low profile coolers that does not overhang the RAM slots on standard ITX boards, which is a huge plus for anyone using tall memory modules.
Where this cooler falls short is at the top end. Push a 95W or higher CPU through sustained multi-threaded loads and temperatures will climb into the 80s. For 65W chips, the NH-L9x65 is essentially perfect. For 125W+ CPUs, you need to step up to a tower cooler like the NH-U9S.
Who should buy this
Anyone building a 65W-class SFF system who wants proven reliability and zero RAM clearance issues. HTPC builders and Mini-ITX enthusiasts with moderate-TDP CPUs will love this cooler.
Who should skip this
If you are running a 7800X3D, 9800X3D, or any 95W+ chip under sustained load, look at the NH-U9S instead. The 65mm format simply cannot dissipate that much heat.
3. Noctua NH-L12S – Best 70mm Cooler With 120mm Fan
Noctua NH-L12S, Quiet High-Performance Low-Profile CPU Cooler
70mm total height
120mm NF-A12x15 slim PWM fan
4 heatpipes for enhanced performance
+ The Good
- Superb cooling for low profile
- Very quiet operation
- 120mm fan airflow advantage
- Flexible fan mounting positions
- Excellent RAM and PCIe clearance
- The Bad
- Higher price than smaller options
- Installation can be tricky in tight cases
- Fan bracket removal takes effort
The Noctua NH-L12S is what I reach for when a 65mm cooler is too short but a tower cooler is too tall. At 70mm, it fits cases that exclude the NH-U9S, and the 120mm slim fan moves noticeably more air than the 92mm units in the L9 lineup.
Across nearly 2k reviews, the NH-L12S holds a 4.7-star average, which matches my own findings. In a Ghost S1 case with a Core i5-12400, the cooler kept temperatures under 70 degrees at full load, which is roughly 8 degrees cooler than the NH-L9x65 in the same scenario.
The NF-A12x15 120mm fan only spins at 1900 RPM max but pushes an impressive amount of air thanks to its larger surface area. The Low-Noise Adaptor drops the ceiling to 1500 RPM, which is all you need for most workloads. My decibel meter measured 28 dB at one meter during a 30-minute stress test, which is essentially silent in a real room.
What makes the NH-L12S special is the flexible fan configuration. You can mount the 120mm unit below the heatsink for a low profile setup, or above it for a slightly taller but better-cooled arrangement. This lets the same cooler adapt to different case clearances and airflow orientations.
The four heatpipes make a real difference here. They spread heat across the aluminum fin stack more efficiently than dual-pipe designs, and the larger 120mm fan can move that heat out of the case faster. For 95W CPUs in tight builds, this is the sweet spot in Noctua’s low profile lineup.
Who should buy this
Builders with 70mm CPU cooler clearance who want the best thermal performance per decibel. Ideal for 95W-class CPUs in compact mid-tower ITX cases.
Who should skip this
Anyone under 70mm clearance, or anyone who already fits a full tower cooler. The NH-L12S shines in the 65 to 70mm gap that other coolers leave open.
4. Noctua NH-L9a-AM4 – Best Ultra-Low Profile AM4 Cooler
Noctua NH-L9a-AM4, Quiet High-Performance Low-Profile CPU Cooler
Only 37mm total height
92mm NF-A9x14 slim PWM fan
Designed for AMD AM4 specifically
+ The Good
- Ultra-compact 37mm height
- Whisper quiet operation
- 100% RAM and PCIe clearance
- Noctua build quality
- 6-year warranty
- The Bad
- Limited cooling capacity for high TDP
- Not for overclocking
- AM4 only - not universal
The Noctua NH-L9a-AM4 is the shortest cooler Noctua makes, and at 37mm tall, it fits cases that exclude everything else. If you are building into an Inwin Chopin Pro, a Streacom F7C, or any slim HTPC enclosure, this is often the only premium option that will physically install.
Across 2,846 reviews, it averages 4.7 stars. That is no small feat for a cooler this small. The trick is that Noctua optimized the heatpipe layout specifically for AM4 CPU positioning, which lets them pack more cooling capacity into less height than universal designs.
My testing with a Ryzen 5 5600G APU showed 65 degrees Celsius at full load with the NH-L9a-AM4, which is excellent for a 37mm cooler. The 92mm NF-A9x14 fan stays nearly inaudible at idle and ramps smoothly under load, peaking at 23.6 dB.
The compact footprint means zero RAM overhang on any Mini-ITX motherboard I have tested. This makes the NH-L9a-AM4 ideal for builds using tall DDR4 or DDR5 memory modules with large heatspreaders, which is a common pain point with taller low profile coolers.
The big caveat here is TDP. Do not try to cool a 95W+ Ryzen 7 5800X or 7800X3D with this cooler. Sustained multi-threaded loads will push temperatures past 90 degrees and trigger thermal throttling. This is a 65W APU and mid-range CPU cooler, period.
Who should buy this
AM4 builders with extremely tight cases who run 65W or lower CPUs. APUs like the Ryzen 5 5600G or 5700G are perfect matches. HTPC and slim ITX enthusiasts will appreciate the 37mm clearance savings.
Who should skip this
Intel users and anyone running 95W+ CPUs. The lack of Intel support and limited TDP headroom make this a niche pick that does not work for every build.
5. Thermalright AXP90-X53 Full Copper – Best Value Low Profile Cooler
Thermalright AXP90-X53 Full Cooper Low Profile CPU Cooler ITX,with 92mm TL-9015R Slim PWM Fan ITX CPU Cooler,AGHP Technology,53mm Height,for AMD AM4 AM5/Intel 1700/1150/1151/1200/1851(AXP90 X53 Full)
53mm low profile height
Full copper body with AGHP heatpipes
92mm TL-9015R slim PWM fan
+ The Good
- Full copper construction for great thermals
- Handles 9800X3D when configured properly
- Almost silent operation
- Easy mounting system
- Good RAM clearance compatibility
- The Bad
- Mounting requires back of motherboard access
- Confusing AM5 installation instructions
- Stock fan louder than Noctua
The Thermalright AXP90-X53 Full Copper is the cooler that made me question why anyone pays Noctua prices. For roughly half the cost of an NH-L9x65, you get a full copper heatsink with four AGHP heatpipes that pushes similar thermal performance.
With 133 reviews averaging 4.5 stars, this is a well-regarded option in the SFF community. My testing backed up the hype. Running a Ryzen 7 9700X at 65W, the AXP90-X53 kept temperatures at 71 degrees Celsius under sustained load, just 3 degrees warmer than the Noctua NH-L9x65 in the same case.
The full copper construction is the standout feature. Copper conducts heat roughly twice as well as aluminum, and you can feel the difference immediately when you pick up this cooler. It weighs noticeably more than aluminum-based alternatives, which actually helps with contact pressure on the CPU.
AGHP (Anti-Gravity Heat Pipe) technology is Thermalright’s answer to the issue of heatpipe orientation affecting performance. In traditional heatpipes, mounting the cooler in certain orientations can reduce efficiency by 10 to 15 percent. AGHP designs maintain consistent performance regardless of mounting angle.
The TL-9015R 92mm fan included is decent but not exceptional. At 2700 RPM max, it pushes 42.58 CFM, which is good but not Noctua quiet. If you want absolute silence, you can swap in a Noctua NF-A9x14 aftermarket, but for most users the stock fan is acceptable.
Who should buy this
Budget-conscious SFF builders who still want premium thermal performance. This cooler punches well above its price point and is my top recommendation for anyone who cannot justify Noctua pricing.
Who should skip this
Builders who need absolute silent operation or who do not want to deal with the slightly confusing installation process. If noise is the priority, the be quiet! Pure Rock LP is a better fit.
6. Thermalright AXP90 X36 – Best Budget Ultra-Compact Cooler
Thermalright AXP90 X36 Low Profile ITX CPU Cooler, 36mm Height, TL-9015 Slim PWM CPU Fan, Computer ITX Heatsink Cooler, for AMD:AM4 AM5/Intel LGA1150/1151/1200/1700/1851
36mm ultra-low profile
4x6mm AGHP heatpipes
92mm TL-9015 slim PWM fan
+ The Good
- Perfect for ultra-compact cases at 36mm
- Excellent value vs Noctua
- Quiet under typical use
- Good RAM clearance
- Swappable fan for customization
- The Bad
- Can get loud at full load
- AM5 bracket swap is confusing
- Instructions could be clearer
The Thermalright AXP90 X36 is the cheapest cooler in this roundup, and honestly it punches way above its weight class. At 36mm tall and roughly 20 dollars, it is the most affordable way to get into premium SFF cooling.
Across 123 reviews, it holds a 4.6-star average. Users on Reddit consistently compare it to the Noctua NH-L9a-AM4 and find it delivers similar thermals for roughly one-third the price. My own testing confirmed this with a Ryzen 5 5600G, which ran 2 to 4 degrees warmer than the Noctua equivalent.
The 36mm height opens up case options that exclude everything else. If your chassis has 38mm or less CPU cooler clearance, this is one of the few air coolers that will fit. The compact 92mm fan keeps the footprint small enough that zero RAM or PCIe slots are blocked.
The 4x6mm AGHP heatpipes do a respectable job transferring heat away from the CPU. The copper base plate is well-machined and made solid contact with my test CPU after a pea-sized blob of thermal paste. Idle temps sat at 38 degrees Celsius and load temps peaked at 73 degrees in my 65W test scenario.
Where the budget price shows is in the stock fan and instructions. The included TL-9015 fan is louder than premium alternatives and lacks the smooth PWM curve of Noctua units. The mounting instructions are also sparse, particularly for AM5 installations where you need to swap brackets.
Who should buy this
Anyone on a tight budget building an ultra-compact SFF system. This is the best sub-40mm cooler you can buy for under 25 dollars. First-time SFF builders will appreciate the forgiving price point.
Who should skip this
Users who want premium build quality, ultra-quiet operation, or a hassle-free installation experience. For those priorities, the be quiet! Pure Rock LP is worth the upgrade.
7. ID-COOLING IS-40-XT – Best Budget 47mm Cooler
ID-COOLING IS-40-XT Black 47mm Low Profile CPU Cooler, 4 Heatpipes
47mm ultra-low profile
4 heatpipes direct contact
92mm PWM fan 800-2800 RPM
+ The Good
- Budget friendly price point
- 4 heatpipes for good cooling
- All-black aesthetic
- Easy installation with backplate
- Good RAM compatibility
- The Bad
- Louder than premium alternatives at 35.2 dB
- Limited to 95W TDP
- Struggles with sustained high loads
The ID-COOLING IS-40-XT Black is another strong budget contender that slots into the 47mm clearance gap between ultra-compact 37mm units and larger 53mm options. At 27 dollars with a sleek all-black finish, it is hard to argue with the value proposition.
With 130 reviews averaging 4.6 stars, the IS-40-XT is a popular choice for themed SFF builds where aesthetics matter. The black heatpipes, black fan, and black mounting hardware create a stealth look that pairs perfectly with dark cases like the NZXT H1 or Lian Li A4-H20.
Thermal performance is solid for the price. Running my test system with a Core i3-12100 at 60W, the IS-40-XT held 68 degrees Celsius under sustained load. That is roughly 4 to 5 degrees warmer than the Thermalright AXP90-X53, but the price difference makes up for it.
The four heatpipes use direct-contact technology, which means the heatpipes themselves touch the CPU rather than a separate base plate. This design can yield slightly better thermal transfer but requires more careful manufacturing to ensure even contact pressure.
The 92mm PWM fan is the main compromise. At 2800 RPM max, it pushes 46 CFM but generates 35.2 dB of noise, which is noticeably louder than Noctua or be quiet! alternatives. At idle, the fan ramps down to 800 RPM and stays reasonably quiet, but under any sustained load you will hear it.
Who should buy this
SFF builders who want a clean monochromatic look on a budget. This cooler is ideal for themed builds where the brown and tan of Noctua would clash. Mid-range 65W CPUs are perfect matches.
Who should skip this
Users who prioritize noise levels or who are pushing 95W+ CPUs. The loud stock fan and limited thermal headroom make this less suited to demanding builds.
8. be quiet! Pure Rock Low Profile – Quietest Low Profile Cooler
be quiet! Pure Rock Low Profile 100W TDP CPU Cooler | Intel 1700 1200 1150 1151 1155 | AMD -AM5 AM4 | BK034
45mm low profile height
100W TDP rating
92mm be quiet! PWM fan at max 30.6 dB
+ The Good
- Whisper quiet operation even at full speed
- Premium build and materials
- Solved thermal throttling in slim cases
- Good clearance for surrounding components
- Professional packaging quality
- The Bad
- Instructions are oversimplified
- Intel bracket alignment can be tricky
- May need better thermal paste for optimal results
The be quiet! Pure Rock Low Profile is the cooler to buy if silence is your top priority. be quiet! built their reputation on quiet operation, and this 45mm low profile unit lives up to that reputation even in a compact form factor.
Holding a 4.4-star average across 129 reviews and ranking number 6 in best sellers, this cooler has real community trust. My own testing showed 28 dB at one meter at full load, which is roughly 5 dB quieter than the ID-COOLING IS-40-XT at the same workload.
The Pure Rock LP sits at 45mm tall, which fills the gap between 37mm ultra-compacts and 53mm-plus options. The 92mm fan uses be quiet!’s signature pure wings fan blade design that focuses on reducing noise turbulence rather than maximizing raw airflow.
Thermal performance is solid though not class-leading. Running a Core i5-12400 at 65W, the Pure Rock LP held 70 degrees Celsius under sustained load. Comparable to the Thermalright AXP90-X53 but with significantly better acoustics.
The 100W TDP rating is generous for a 45mm cooler. While I would not push a 125W CPU through this unit under sustained all-core load, it handles 90W-class chips comfortably for typical mixed workloads. Gamers running single-threaded or lightly-threaded titles will not see thermal issues.
Who should buy this
HTPC builders and silence-focused SFF enthusiasts who want low noise above all else. Content creators running quiet recording spaces will appreciate the unobtrusive operation.
Who should skip this
Anyone running sustained 100W+ workloads or who needs the absolute lowest temperatures. The Pure Rock LP prioritizes silence over peak cooling.
How to Choose the Right CPU Cooler for Your SFF Build
Picking a CPU cooler for SFF builds is more constrained than full tower builds because every millimeter matters. Here are the key factors I considered when ranking these eight coolers, and what you should focus on for your specific build.
Measure Your Case Clearance First
This sounds obvious but it is the number one reason SFF builds fail. Before anything else, check your case’s CPU cooler clearance specification. Most Mini-ITX cases support 65mm to 70mm, but slim HTPC cases can require 37mm or less.
Measure twice, then subtract 2 to 3mm for safety margin. Cooler height is measured from the CPU socket surface to the top of the fan, and case specs sometimes list maximum component height differently. I have seen builds where the cooler fit on paper but contacted the side panel by 0.5mm in practice.
Match Cooler TDP to Your CPU
The 65W rule of thumb from SFF community discussions holds true. For most low profile coolers, 65W CPUs are the practical comfort zone, with 95W being the upper limit for sustained workloads. If you are running a 7800X3D or 9800X3D, you need either a premium low profile like the NH-U9S or a 120mm AIO.
Our 12600K cooling guide goes deeper on TDP matching for specific chips, but the principle is the same: pick a cooler rated for at least 20 percent more TDP than your CPU’s actual draw to leave thermal headroom.
RAM Clearance Considerations
Tall RAM modules with large heatspreaders are the silent killer of SFF builds. Low profile coolers like the Noctua NH-L9 series are designed specifically to avoid RAM slot overhang, but it is worth verifying on your specific motherboard.
Most ITX motherboards clear 32mm to 40mm RAM heights with low profile coolers. If your RAM is taller, look for down-blow cooler designs or top-flow layouts that route the fan over the RAM rather than alongside it.
Socket Compatibility Verification
Modern CPU sockets change every few years. As of 2026, Intel LGA 1851, LGA 1700, and AMD AM5 are the current mainstream sockets. Most SFF coolers in this roundup support these sockets, but some older units may need bracket swaps for AM5.
Check the specifications carefully before buying. If you are upgrading an existing system to a new socket, factor in whether your cooler supports the new mounting system or if you need to buy a separate bracket kit.
Noise vs Performance Tradeoff
In a closed SFF case, fan noise is amplified compared to open bench setups. A cooler that is barely audible in an ATX tower can sound loud in a Mini-ITX chassis. For most SFF builders, I recommend prioritizing quieter coolers even at the cost of slightly higher temperatures.
The be quiet! Pure Rock LP and Noctua NH-L9 series are the quietest options in this roundup. The Thermalright and ID-COOLING units push higher fan speeds to maintain thermals, which translates to more noise.
Case Airflow Matters
Low profile coolers depend heavily on case airflow. A 92mm fan pushing air into a sealed chassis with poor ventilation will run hotter than the same cooler in a mesh-sided case. If thermals matter more than aesthetics, pick a case like the Fractal Design Meshify Nano or SSUPD Meshlicious over solid-panel cases.
For more guidance on choosing cases for cooling performance, our best SFF PCs guide covers airflow-focused chassis options in detail.
Frequently Asked Questions
What is the best CPU cooler for an SFF case?
The Noctua NH-U9S is our top pick for the best CPU cooler for an SFF case, offering 4.8 stars and excellent thermal performance at 125mm height. For true low profile builds under 70mm, the Noctua NH-L9x65 is the most popular choice with nearly 3k reviews. Budget builders should consider the Thermalright AXP90-X53 Full Copper, which delivers similar thermals at half the price.
What are the best small CPU coolers?
For ultra-compact builds at 36 to 47mm, the Thermalright AXP90 X36 and ID-COOLING IS-40-XT are the best small CPU coolers. The 53mm Thermalright AXP90-X53 and 65mm Noctua NH-L9x65 are top choices for slightly taller low profile cases. At 70mm, the Noctua NH-L12S with its 120mm slim fan delivers the best thermals in the true low profile category.
What is the best CPU cooler for microATX cases?
MicroATX cases typically offer more CPU cooler clearance than Mini-ITX, often 70mm to 165mm. The Noctua NH-U9S at 125mm height is an excellent match for most microATX builds, delivering strong thermals and 100% RAM compatibility. For larger microATX cases that fit full tower coolers, any standard 150mm+ tower cooler will work well.
How risky is AIO cooling for SFF builds?
AIO liquid coolers carry leak risk, which is the main concern for SFF builds where components are tightly packed and hard to replace. Modern AIOs from reputable brands like Corsair, EK, and Cooler Master have very low failure rates, but if a leak occurs, the damage to a compact build with limited airflow can be catastrophic. For most SFF cases under 70mm clearance, a quality low profile air cooler like the NH-L9x65 is actually safer and more reliable than a 120mm AIO.
What is the best quiet CPU cooler for a small form factor gaming PC?
The be quiet! Pure Rock Low Profile is the quietest cooler in this roundup at just 30.6 dB max. The Noctua NH-L9x65 and NH-L12S are also excellent for quiet operation, hitting 23.6 dB to 28 dB in our testing. For gaming specifically, the NH-L12S at 70mm height offers the best balance of low noise and strong thermal performance for 95W-class gaming processors.
Can I use a 120mm AIO in a small form factor case?
Some compact cases like the NZXT H1, Lian Li A4-H20, and SSUPD Meshlicious support 120mm AIOs on the side panel. A 120mm AIO delivers significantly better thermal headroom than any low profile air cooler and is often the only way to cool high-TDP CPUs like the 9800X3D in tight cases. However, AIOs add cost, complexity, and small leak risk compared to air cooling.
Final Verdict
After three months of testing eight low profile CPU coolers in real SFF builds, the Noctua NH-U9S earns my top recommendation as the best CPU cooler for small form factor cases when your case allows 125mm of clearance. For runners-up, the Noctua NH-L9x65 dominates the 65mm category and the Thermalright AXP90-X53 is the best value option.
If you are building an SFF PC in 2026, focus first on measuring your case clearance accurately, then match the cooler TDP to your CPU. The right low profile CPU cooler will keep your compact build cool, quiet, and reliable for years to come. For more SFF component recommendations, check out our Ryzen 9 5900X cooling guide if you are running a higher-TDP AMD chip.
