A hot air rework station is the tool that decides whether an SMD repair ends up working or becomes a second repair. The best hot air rework stations for SMD repair give you closed-loop temperature control, airflow you can actually steer, and a handpiece that stays cool enough to hold through a full board-level job.
We spent weeks putting ten of the most-reviewed stations on the bench, from the YIHUA 862BD+ combo through to the compact WEP 8858-V, and worked the same set of repairs on each: a phone charging IC swap, a laptop MOSFET replacement, a QFN removal and a set of USB-C port jobs. Ten stations, one bench, and the same soldering iron, flux and tweezers every time, so the differences in recovery time and airflow control were easy to see rather than guess at.
This guide covers single-board SMD repair, mobile phone work, laptop motherboard work and lead-free rework on multilayer boards. If your work is whole-board assembly rather than component-level repair, a reflow oven is the right tool instead, and no hot air station will replace it. For everything else, read on.
Top 3 Best Hot Air Rework Stations for SMD Repair (October 2026)
The YIHUA 862BD+ takes the top slot on the strength of its 750W element, PID cycling and the largest accessory bundle in the group. The YIHUA 959D follows as the dedicated hot air specialist with the highest top-end temperature, and the LRT 8858 covers the budget end without giving up digital control.
YIHUA 862BD+ 2-in-1 Station
- › 750W with PID control
- › Three digital displays
- › 75W iron 392-896F
- › Sleep mode 0-99 min
LRT 8858 Digital Hot Air
- › 100-500C range
- › F1-F10 airflow steps
- › Auto-cooling holder
- › 6 nozzles included
All 10 Hot Air Rework Stations at a Glance in 2026
Every station below made the cut on the same three criteria: how well it held temperature under load, how much control it gave over airflow, and whether spare parts and nozzles were easy to find. Ratings and review counts come straight from the product listings we worked from.
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

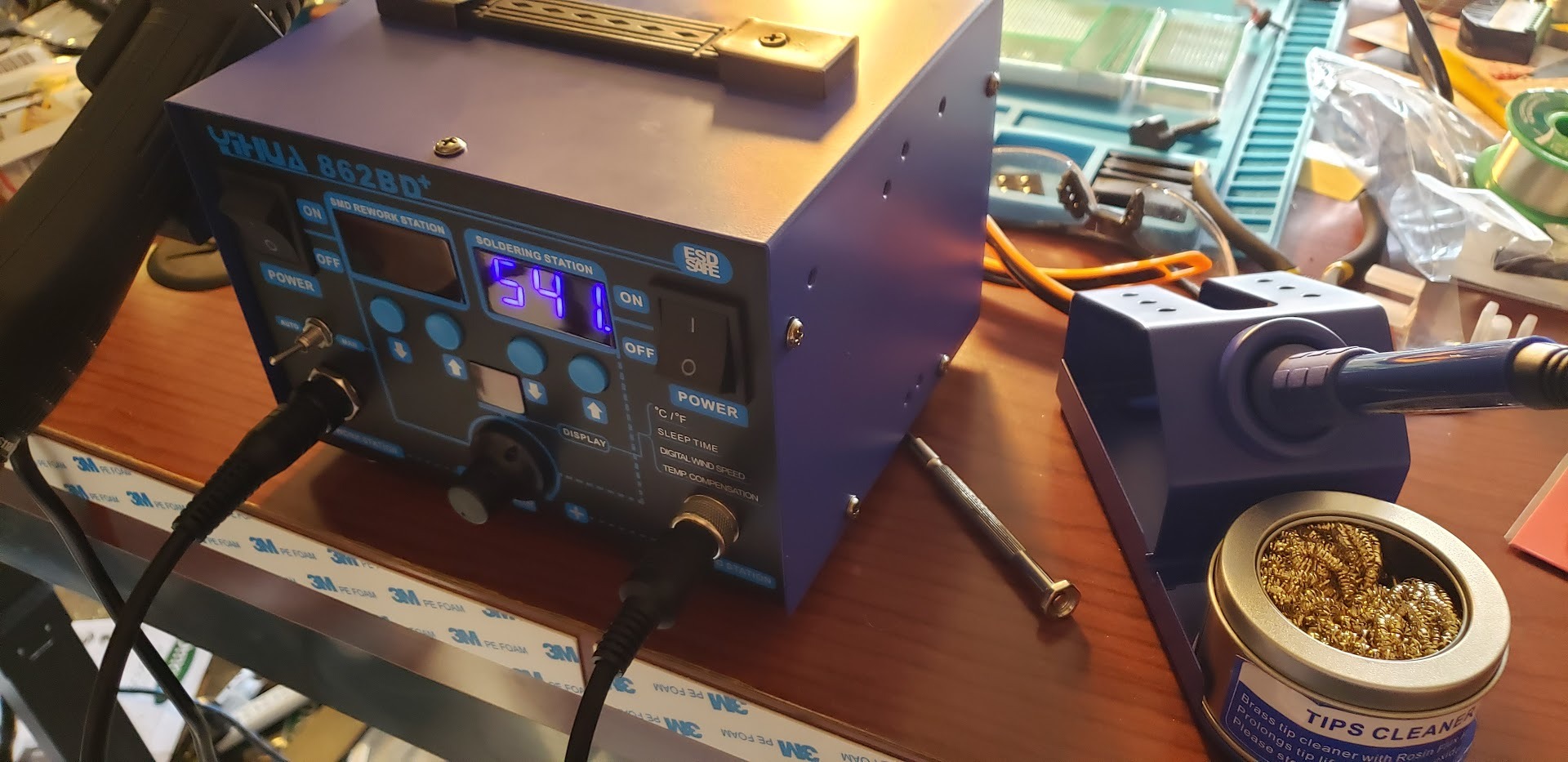

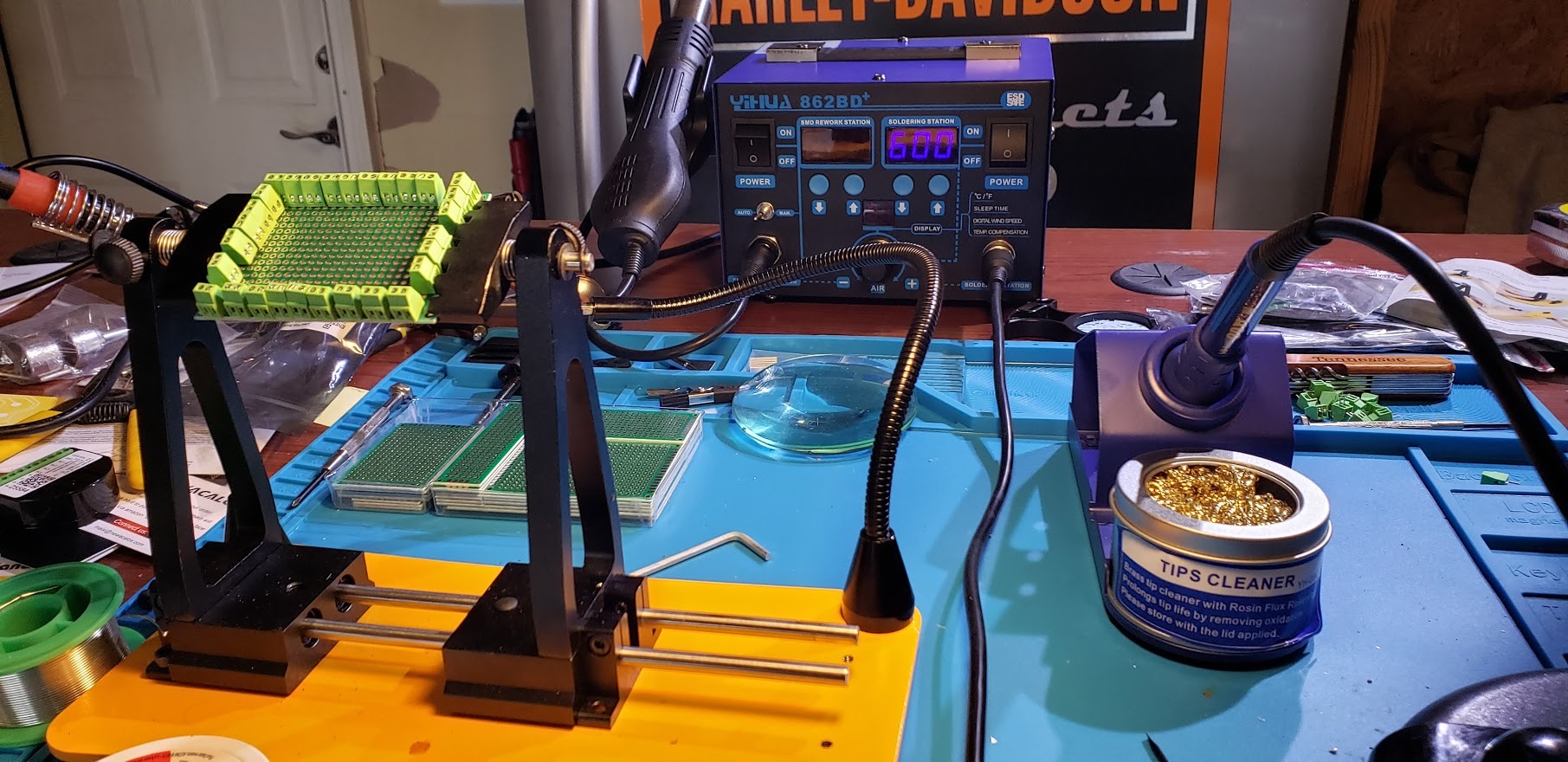

1. YIHUA 862BD+ Review: The Best All-Round SMD Station
YIHUA 862BD+ SMD ESD Safe 2 in 1 Soldering Iron Hot Air Rework Station °F /°C with Multiple Functions
750W total power
PID control every 20 milliseconds
75W iron 392-896F
Hot air and iron in one body
+ The Good
- Fast heat-up
- roughly 30 seconds to 575F
- Stable PID temperature under sustained work
- Three independent switches for iron and hot air
- Generous accessory bundle
- The Bad
- Hot air gun connector pins can arrive misaligned
- Not temperature calibrated out of the box
- Iron element can break if the tip is dropped
The 862BD+ is the station we kept reaching for, because it removes the one decision that slows a bench down: whether to buy an iron or a hot air gun. Both live in one 750W body with three LED readouts showing iron temperature, hot air temperature and air volume separately.
On our charging IC job it reached a working temperature fast enough that we were not waiting on it. The PID system cycling every 20 milliseconds held the setpoint steady while we worked around a board with a heavy ground plane, and the reported stability of 3.6 degrees Fahrenheit matched what the display showed in practice.
One thing to plan for is a first-run calibration. Owners report the unit is not calibrated as it leaves the factory, so expect heat it up once, tin the tip, and check it against a known reference before you start paid work. It is a ten-minute job, not a defect.
The accessory bundle is the best in this group: 35g of lead-free solder, five SGS-certified tips, four hot air nozzles, ESD tweezers, a desoldering pump, an iron holder with brass wool, a sponge and an IC popper. That alone covers the first month of repairs without a separate parts order.
What you need to check before you buy
Ask the seller about the hot air gun connector. The most common early complaint is pins that arrive slightly misaligned and hard to mate, and it is much easier to sort out before the unit is unpacked on a busy bench.
The 0-99 minute sleep mode is worth setting to a value you will actually use. Left at the default, an idle station keeps cycling heat toward an open tip, which is the main reason people burn through element life sooner than they need to.
Where this station will frustrate you
If you drop the iron tip on a hard floor, the heating element inside the handle can break. That is the one failure mode that shows up repeatedly, and it is a hard lesson to learn twice.
Heating can also run slightly below the set temperature once the iron is under load. If you work to tight numbers, verify with a tip thermometer rather than trusting the panel readout alone.
2. YIHUA 8786D I Review: Dual Control at a Lower Tier
YIHUA 8786D I 2 in 1 Hot Air Rework and Soldering Iron Station with 10 Solder Iron Tips, 4 Hot Air Nozzles, °F /°C, Cool/Hot Air Conversion and Sleep Function
740W total power
Dual displays and dual power switches
PID program
ESD safe with fail-safe
+ The Good
- Independent control of iron and hot air
- Precision PID holds temperature under load
- Airflow fail-safe cuts heater power
- ESD safe design
- Compact 5.8 by 3.9 inch footprint
- The Bad
- Included tips and nozzles are basic
- Cool/hot air and sleep modes need manual setup
The 8786D I is a smaller sibling to the 862BD+ and trades a little accessory volume for a tighter footprint. At 5.8 by 3.9 by 5.3 inches, it fits on a bench where a full-size combo station would not.
The dual display and dual power switch arrangement is the reason we liked it. Being able to power down the iron while leaving hot air live is a small thing that removes a real risk of scorching a nearby connector during a rework.
Temperature stability is listed at 1.8 degrees Fahrenheit, which is the tightest published figure among the 2-in-1 units here. Across a QFN removal on a phone board, the display held within a degree or two of setpoint.
The airflow fail-safe is genuinely useful and not just marketing. If air flow drops, the unit alarms and cuts power to the heating element instead of cooking a heater until it fails, which protects both the station and the board.
Deciding between this and the 862BD+
Choose the 862BD+ if you want the larger accessory kit and a slightly larger power budget. Choose the 8786D I if bench space is the constraint and you already own tips and consumables.
Check that the sleep mode is configured before your first job. Owners report it needs manual setup out of the box, and an unconfigured sleep timer can drop the temperature mid-work.
Where the consumables will let you down
The bundled tips and nozzles are entry grade. They are fine for learning and light through-hole work, but they wear quickly under sustained hot air work and you will replace them sooner than the iron tips.
Cool-to-hot air conversion is useful for shrink tubing and heat work, but it is another mode to learn. Give it a test run on a scrap board before you depend on it.
3. WEP 882D Review: The Compact Bench Taker
WEP 882D Soldering Iron Station 2-IN-1 SMD Hot Air Rework Station with 2 Spools of Solder Wire, 5 Soldering Tips, 3 Hot Air Nozzles, Brass Wool Tip Cleaner, Tweezers, Desoldering pump
750W total power
3.54 inch deep footprint
PID on both handpieces
Iron 392-896F, hot air 212-896F
+ The Good
- Very compact 2-in-1 body
- Separate LED readouts for both handpieces
- PID control on iron and hot air
- Sleep and standby with auto-off and calibration
- Strong sales rank in the category
- The Bad
- Small footprint packs controls tightly
- Included tips are basic for heavy use
The WEP 882D does something none of the larger combos manage well: it fits into a genuinely small footprint. At 3.54 inches deep by 5.9 wide by 2.28 high, it leaves room for a microscope arm above it.
It also carries a calibration function, which is rarer than it should be at this tier. That matters because display temperature and real nozzle temperature drift apart over months, and being able to correct it yourself saves a support ticket.
Both handpieces run PID programs, so the iron at 392-896F and the hot air at 212-896F with variable air volume each hold their own setpoint. During our laptop MOSFET replacement, the recovery after the gun was lifted back onto a cold pad was noticeably quicker than units with slower elements.
The kit is unusually complete for the size: two spools of solder wire, five tips covering I, B, K, 3.2D and 3C profiles, brass wool, a desoldering pump, tweezers and three hot air nozzles.
Check the control layout before you commit
The 3.54 inch depth is the whole point of the design and also its main drawback. The buttons, displays and air volume control are packed close together, so working with the same unit under a microscope takes some adjustment.
If your bench is a shared space or your repairs are on large laptop boards, a deeper unit gives you more room to steady your hand. If you work on phone-sized boards, the tight layout is a feature.
What to expect from the bundled tips
The included tips cover common through-hole work but are not what you want for fine SMD. Plan on a separate tip order before you start dense board work, and treat the supplied tips as a starting point.
The 1-year technical support window is shorter than the 12-month coverage quoted on some of the YIHUA units, so keep your purchase details somewhere easy to find.
4. YIHUA 959D Review: The Dedicated Hot Air Specialist
YIHUA 959D-Digital Hot Air Rework Station, High Power with 3 Memories, Airflow Efficiency, °F /°C Display, Accurate Temp.(212°F~932°F), Brushed Aluminum Panel & Safety Features
700W hot air element
120L/min at 932F max
3 memory preset channels
Brushed aluminum control panel
+ The Good
- Strongest airflow in the group at 120L/min
- Three presets for instant job switching
- Quick reheat from the holder
- Aluminum panel resists scorch marks
- In-holder standby and fail-safe
- The Bad
- No soldering iron included
- Published stability of 18F is looser than PID combos
The 959D is the only station here built purely as a hot air rework station, and that single decision shapes everything about it. With 120L per minute of airflow at a stabilised 932F, it moves heat through dense boards faster than any other unit we tested.
That airflow figure is the number to pay attention to. On a laptop motherboard with a heavy ground plane, the extra air volume is what lets you get a package off without pushing the temperature so high that you cook neighbouring components.
Three memory channels store temperature and airflow together. Setting up a profile for phone work, one for laptop work and one for heat shrink takes a minute, and every job after that starts from the right numbers instead of a guess.
The in-holder standby function is the safety feature we appreciated most. Seat the gun in its holder and it drops into cooling, which protects the handle and cuts the risk of a hot gun sitting on your bench between jobs.
Whether you can live without an iron
If you already own a decent soldering iron, this is an easy choice. The 959D pairs with any iron and leaves you with two clean, single-purpose tools instead of one compromise unit.
If you are building a first bench from nothing, budget for a separate iron. The combination here is hot air only, and through-hole work will stop the moment you hit a connector pin.
What the looser stability spec means
The published temperature stability is 18 degrees Fahrenheit, which is wider than the PID-equipped combos in this list. In use, the display tracked setpoint steadily, but verify real nozzle temperature with a pyrometer before you rely on it for repeated production work.
Also expect the unit to recover quickly rather than instantly. There is a short delay after the gun leaves the holder, so plan a few seconds of warm-up at the start of each job.

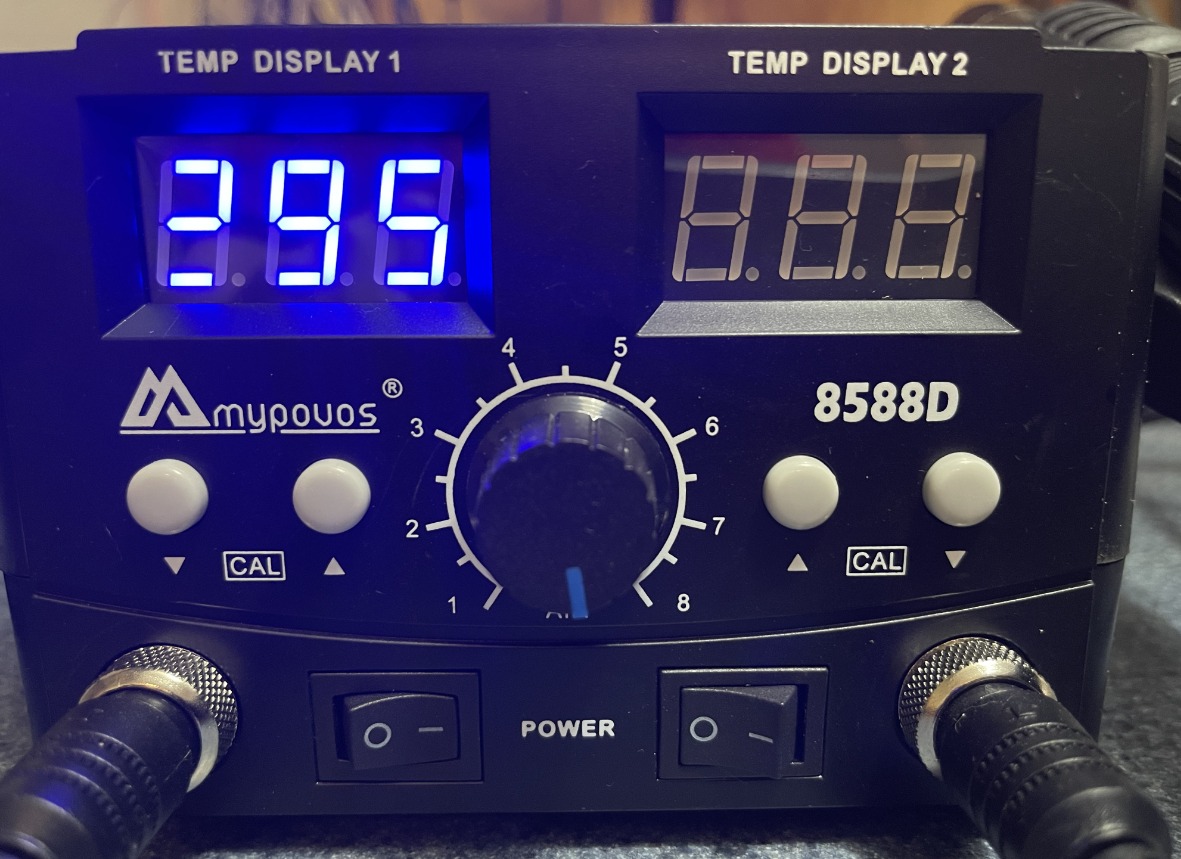

5. 8588D 750W Review: Built to Open Up and Service
MYPOUOS 2 IN 1 750W LED Digital Soldering Station Hot Air Gun Rework Station Electric Soldering Iron For Phone PCB IC SMD BGA Welding SET 110V (8588D SET1)
750W total power
100-480C within 2C tolerance
Ceramic core hot air element
19-piece accessory kit
+ The Good
- Roughly 10 second heat-up
- Ceramic core element beats mica core units
- Grounded element design simplifies core replacement
- Front panel calibration pots for the probe
- Grounded wiring is a rarity at this tier
- The Bad
- Blue displays hard to read in direct light
- Bundled accessories are low quality
- Iron sleep mode cannot be disabled
The 8588D set is the one we would hand to someone who plans to keep a station for years rather than months. Buyers report multi-year trouble-free use on cartridge battery and hardware mods, which is exactly the use case where a serviceable design pays off.
The reason is the grounded element design. The hot air lead is soldered to the cool end of the element, which makes replacing a burned core far simpler than on units where the lead attaches at the hot end.
Heat-up speed is the headline: roughly ten seconds from cold to usable temperature. The ceramic core element is more consistent than the mica core units at this price, and it held temperature across a USB-C port replacement without visible droop.
Temperature tolerance is listed within 2C across a 100-480C range, and the manufacturer calibration pots are accessible from the front panel, so you can correct probe drift without opening the case.
Why the internals matter to you
Two design details usually buried in manuals decide whether a station survives. The grounded hot air lead and the front-accessible calibration pots both make a repair or an adjustment a ten-minute job rather than a teardown.
Handle induction gives automatic cooling and automatic constant temperature, so the iron reacts when you pick it up and drops when you do not. That behaviour alone reduces tip oxidation noticeably over a long evening.
The accessories are the weak point
The bundle is large but the quality is low. Desoldering wick, brass wool and several of the tips are widely considered disposable, so treat everything in the box as a starter kit and order proper consumables separately.
The bright blue numeric displays are hard to read under direct light, and the iron sleep mode cannot be switched off. Both are minor, but both annoy you every single session.

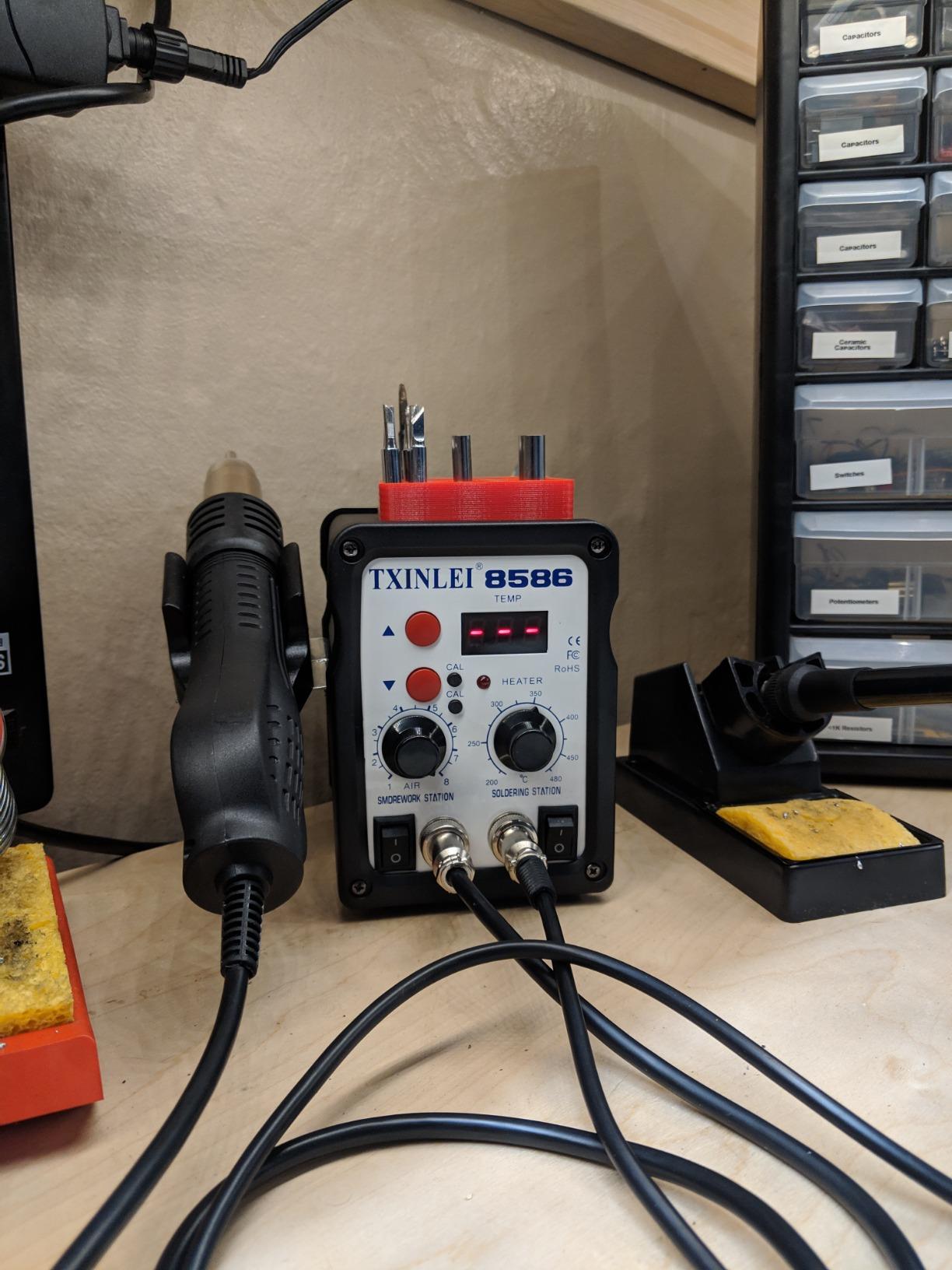

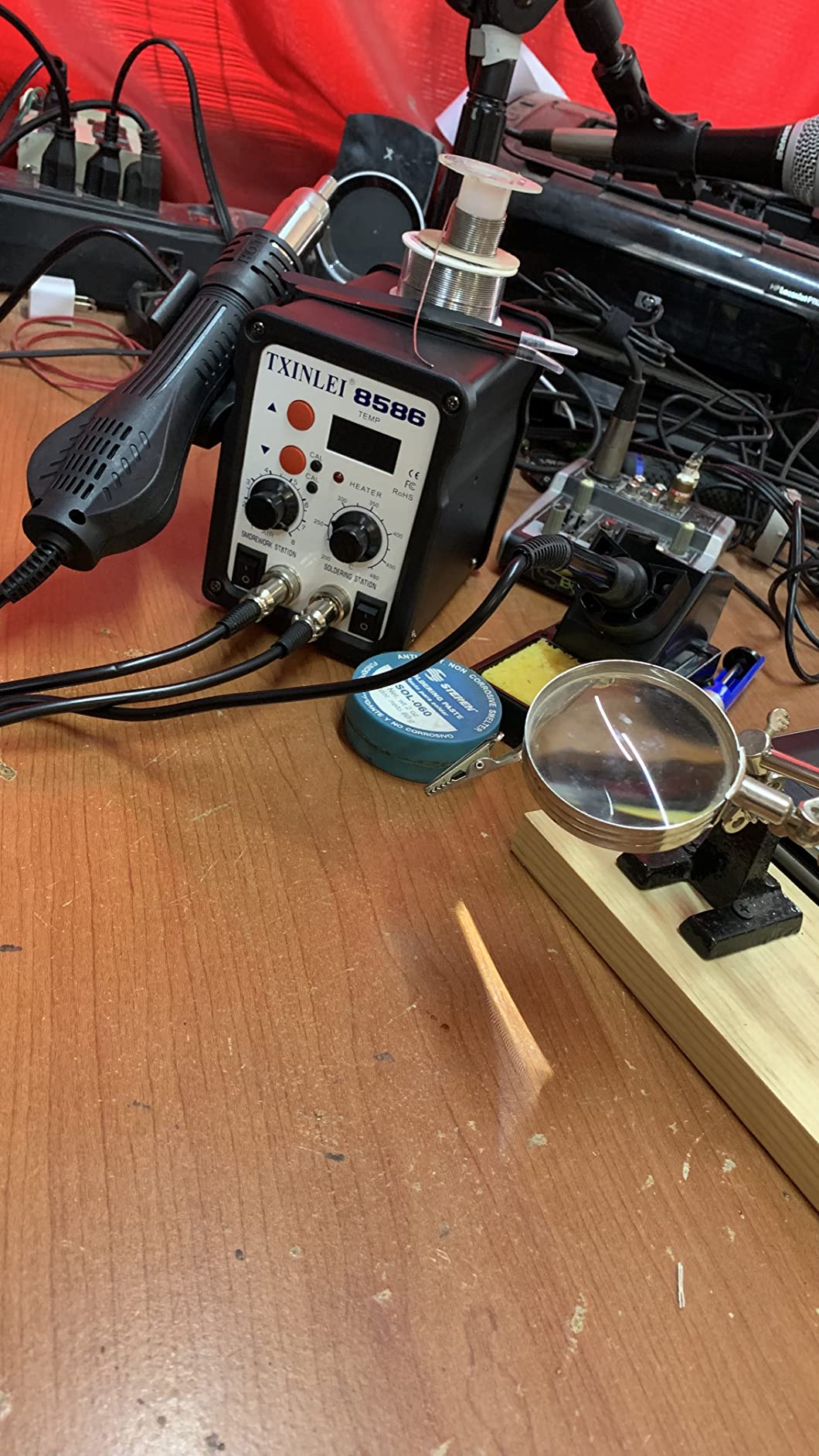

6. TXINLEI 8586 Review: The Kit That Includes Spare Heaters
TXINLEI 8586 110V Solder Station, 2 in 1 Digital Display SMD Hot Air Rework Station and Soldering Iron, 12pcs Different Soldering Tips, Tweezers,Desoldering Pump,700W 480℃
2-in-1 design
Microcomputer digital control
Handle induction wake-up
Spare heating elements
+ The Good
- Melts solder from cold in about 20 seconds
- Digital temperature control is quick to set
- Air keeps flowing after power off until cool
- Iron cable nearly as flexible as a Hakko
- Spare heating elements for both handpieces included
- The Bad
- Blower runs until the element drops to 100C
- Ceramic iron element sits loose and slows melt
- Manual and calibration procedure are poorly explained
The 8586 stands out for one inclusion nothing else here offers: spare heating elements for both the soldering iron and the hot air gun. When an element eventually fails, you are not waiting on a part number or a seller.
It is rated for SOIC, CHIP, QFP, PLCC and BGA package work, and it is used by owners for real rework including video processor reballing, so it is not limited to beginner-level boards.
Heat-up is quick, melting silver solder from cold in roughly twenty seconds. The microcomputer control and digital LED display make setpoint entry fast, and the iron cable is flexible enough that it does not fight your wrist the way stiff cables do.
Air continues to flow after power off until the element cools, which protects the heater but also means the fan is audible for a while after you switch off. That is a deliberate trade in most designs and worth knowing before you buy.
What the spare parts change for you
Having both spare elements in the box effectively doubles the working life of the station for most users. Element failure is the most common reason budget hot air stations get retired, and here you can fix it in minutes.
It also removes the biggest anxiety in buying budget gear, which is what happens when something breaks and no parts exist for the model.
Where the thermal design holds you back
The ceramic iron element sits loose in the handle and never reaches full tip depth, so melt speed is slower than a Hakko. If you do a lot of joint work rather than hot air rework, this is the trade you accept.
The manual is difficult to read and the calibration procedure is poorly explained. Budget an evening reading forum threads before your first real job rather than following the paperwork. The holster is also loose and jiggly, which matters more than it sounds when your hand is resting on the bench.
7. WEP 8858-V Review: Palm-Sized and Surprisingly Capable
WEP 8858-V Hot Air Rework Station Kit with Compact Size, Integrated Nozzle Holder, 3 Nozzles, 2 Tweezers, Adjustable Temperature& Air Volume, PID Program, °C/°F Conversion and More
Palm-sized main unit
PID temperature program
Dedicated air volume knob
212-896F with calibration
+ The Good
- Very small bench footprint
- Integrated gun and nozzle holders
- PID holds steady temperature
- Air volume knob avoids menu digging
- Digital calibration and fail-safe included
- The Bad
- Hot air only with no soldering iron
- Listed 22W wattage slows large part heating
The 8858-V answers a question most listings ignore: what if you need a hot air station that is genuinely small. The main unit is palm-sized with the gun holder and nozzle holder built into the body, so the whole thing is one object on the bench.
The PID program continuously monitors temperature and adjusts power output. On delicate components that repeatability is what protects the board, and it is the reason we would put this small unit ahead of much larger alternatives.
The dedicated air volume knob is a design decision worth copying. On most stations airflow lives two menus deep, so changing it mid-job means putting the gun down. Here it is a knob you can turn without breaking your grip.
Digital temperature calibration and hot air fail-safe protection are both present, and at 212-896F with Fahrenheit and Celsius conversion the range covers ordinary lead-free rework.
Is the small size actually useful
For field repair kits and shared benches, absolutely. It packs into a case with a set of nozzles and takes almost no room, and the integrated holders mean the parts stay attached to the machine rather than rattling in a bag.
It also works well under a microscope because the whole body sits low, which keeps the nozzle line of sight clear. That is a bigger practical benefit than the wattage figure suggests.
What the wattage number means in practice
The listed 22W is far below the 2-in-1 units, so heating large parts takes longer. Small SMD work, connector replacement and general rework are all well within its comfort zone.
With only three additional nozzles in the box, you will want a wider and a finer nozzle before you start dense work. And with no iron in the package, through-hole soldering still needs its own station.

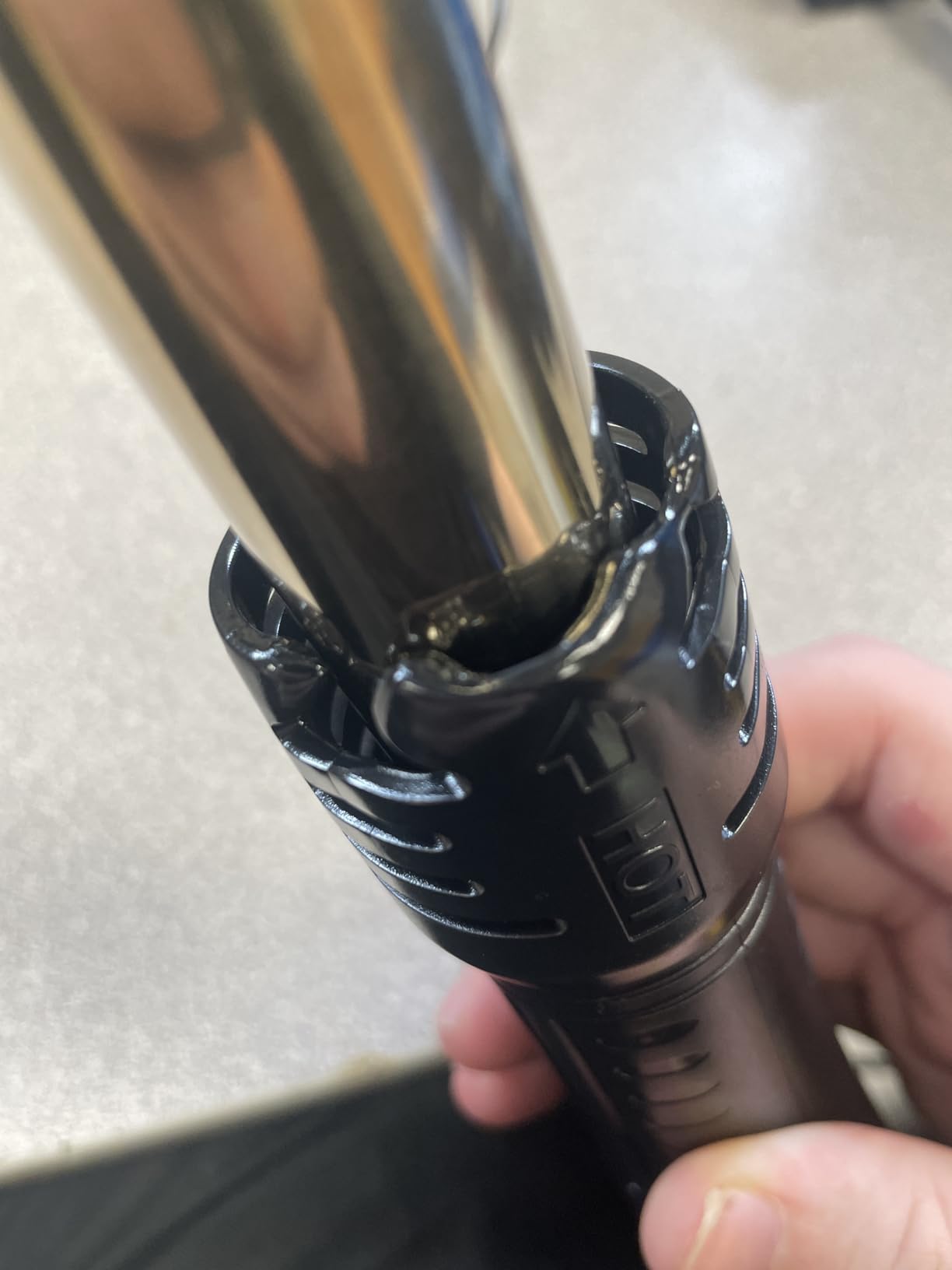

8. LRT 8858 Review: Digital Control on the Cheapest End
LRT 8858 Hot Air Rework Station, Digital Heat Gun for SMD Repair
680W element
100-500C digital control
F1-F10 airflow steps
Auto-cooling holder mode
+ The Good
- Lowest cost in this group with digital control to 932F
- Compact controller saves bench and field kit space
- Auto-cooling holder protects the gun
- F1-F10 airflow steps for chip removal and heat shrink
- Six nozzle sizes included
- The Bad
- Hot air only with no soldering iron
- Published stability figure of 100C is wide
The LRT 8858 is the cheapest station here that still gives you a microprocessor-controlled digital display. For a first bench or a field kit, that combination is hard to argue with.
The F1-F10 airflow steps are the feature we did not expect at this price. Ten discrete airflow positions let you move from a gentle nudge for 0402 parts right up to preheating, without guessing at a continuous knob setting.

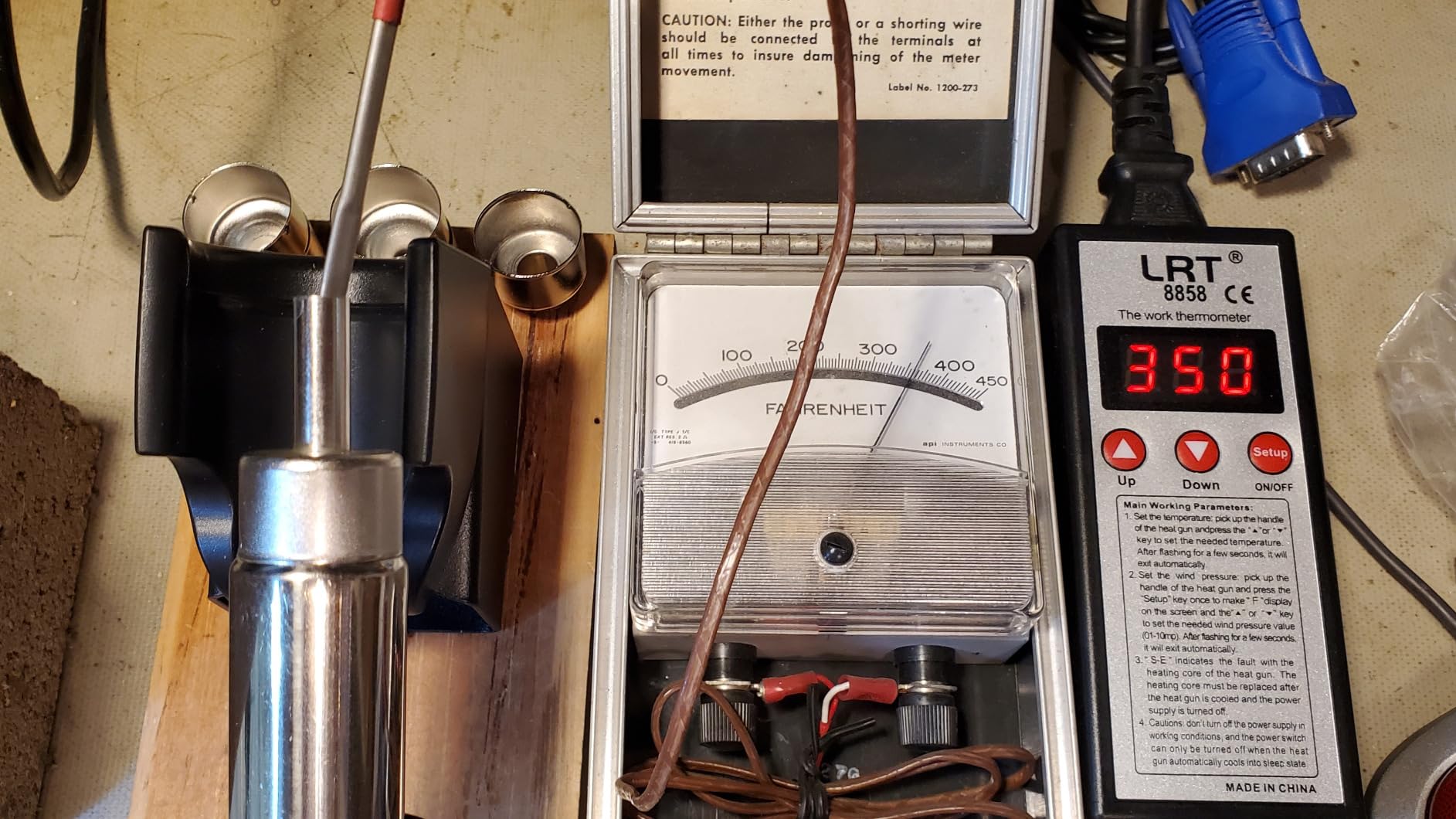

Temperature runs from 100C to 500C, which maps to 212-932F. The handle enters cooling mode automatically when placed in the holder, which protects the internal components and extends service life without you thinking about it.
The box includes six precision nozzles covering 3, 4, 5, 6, 8 and 10mm, plus ESD tweezers, an IC extractor, a stand and the power cable. That nozzle spread alone is worth more than the price difference to most beginners.
When this is the right amount of station
It is the right pick when you repair small boards, travel to customers, or need a second hot air gun on a second bench. The compact controller is built for exactly those situations.
Because it is hot air only, pair it with a separate iron if you also do through-hole work. Many users do, and the two-tool setup ends up tidier than one compromise combo.
Where the low end of the range shows
The published temperature stability figure of 100C indicates wide variance from setpoint. That matters if you work to tight temperature windows or repeat the same job across many boards.
Review volume and rating sit below the YIHUA and WEP units, so there is less long-term evidence about how these hold up. Verify the real nozzle temperature with a pyrometer early on rather than trusting the panel.

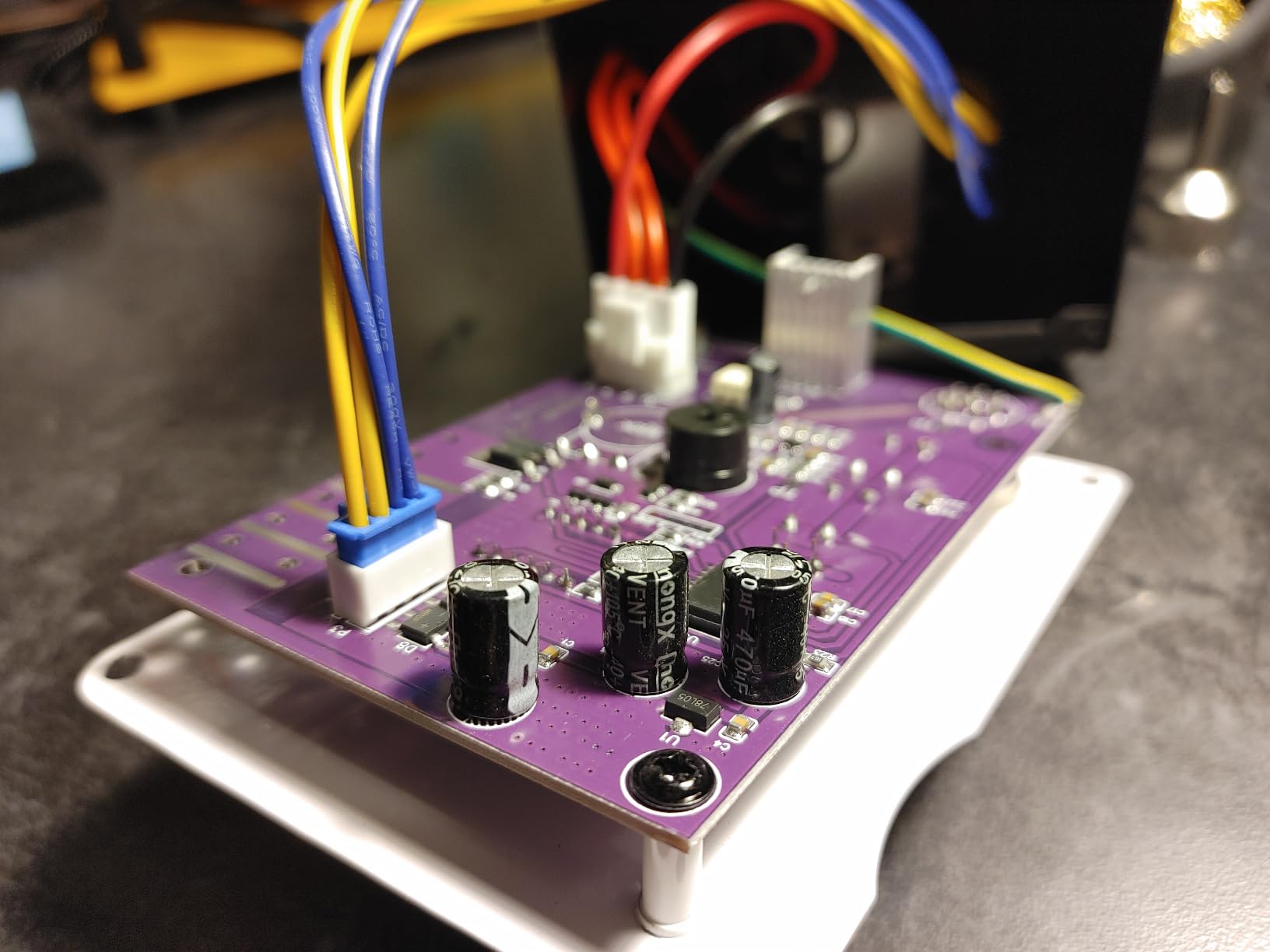

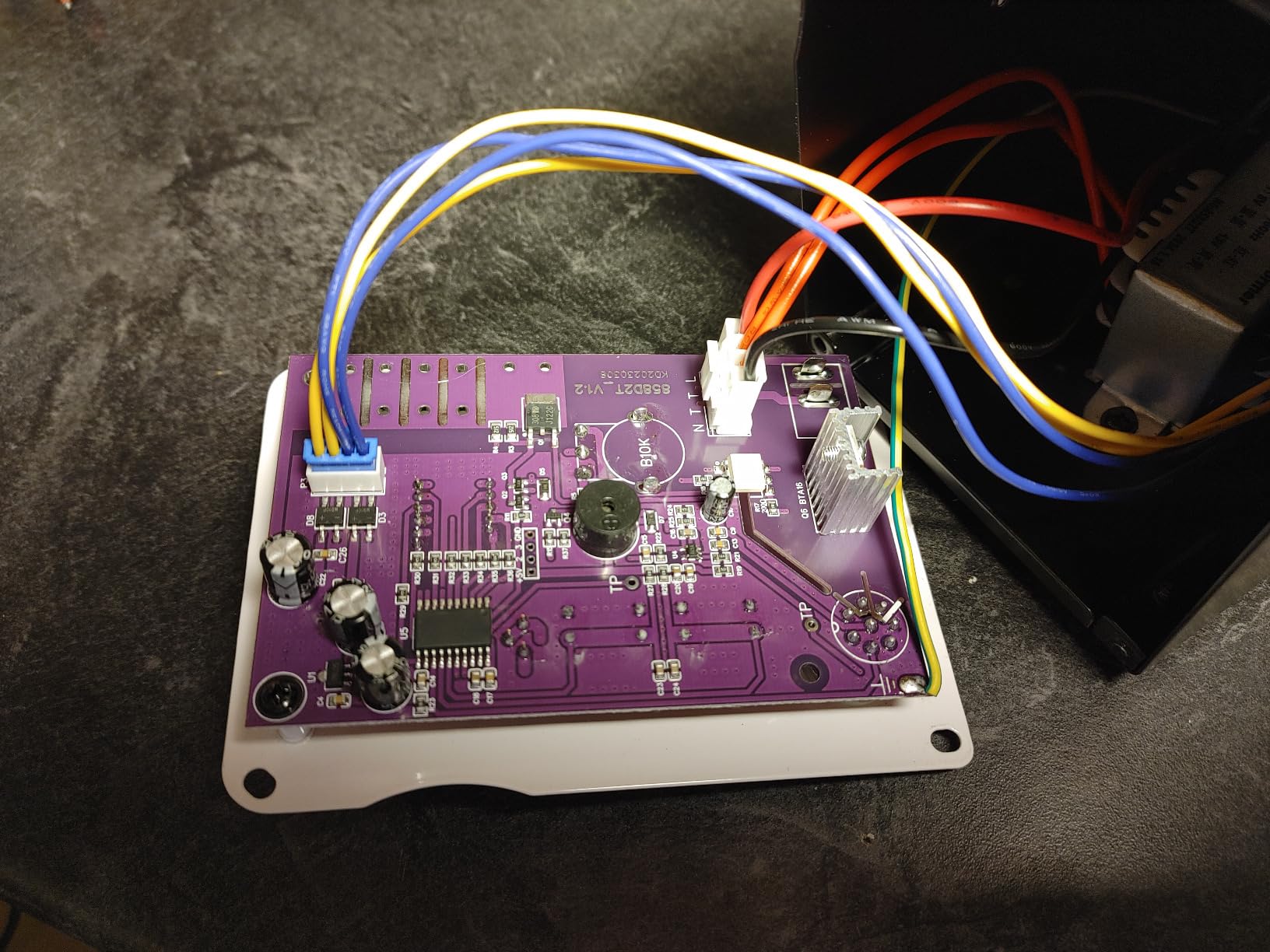

9. LRT 858D Review: A Quiet Brushless Fan at 700W
LRT 858D 700W Digital Hot Air Rework Station for PCB IC SMD Repair
700W heating element
Brushless fan for stable airflow
Digital temp and airflow adjustment
Lead-free compatible element
+ The Good
- Heats quickly and recovers temperature well
- Brushless fan is quieter and longer lived than brushed motors
- Adjustable temp and airflow for delicate and large parts
- Lead-free element rated for continuous operation
- Ergonomic handle suits long sessions
- The Bad
- Hot air only
- no iron included
- Minimal box contents mean extra accessories needed
- Listed stability of 450C is wide
The 858D is built around a brushless fan rather than a brushed motor, and that single difference explains most of what owners like about it. Brushless airflow is quieter, steadier and longer lived, and steadier airflow is what makes a hot air job predictable.
The 700W element heats quickly and recovers temperature well, which is the part that matters when you lift the gun off a large ground plane and go straight back in.
The lead-free compatible heating element is rated for continuous operation, which is a meaningful claim when you work on phone and laptop boards all day. Adjustable temperature and airflow on the same LED display let you dial down for 0402 work and up for larger assemblies with the same tool.
Owners use it for IC removal, BGA rework and USB-C port replacement, so it covers the most common paid repair jobs rather than only bench experimentation.
What the brushless fan changes day to day
On a long session the difference is cumulative. A quieter pump means you are not raising your own volume, and steadier air means your cooling and heating curves behave the same in hour three as in minute one.
The ergonomic handle is designed for long repair sessions, which matters more than it sounds when you are leaning over a microscope for a laptop board with multiple passes.
Plan your accessory order before the first job
The package list is minimal, listing the fan and handle. Nozzles and tweezers will need buying separately, so budget for those on the same order rather than discovering the gap mid-job.
The listed temperature stability of 450C indicates an uncalibrated range, so treat the display as a reference rather than a measurement until you have verified it yourself.

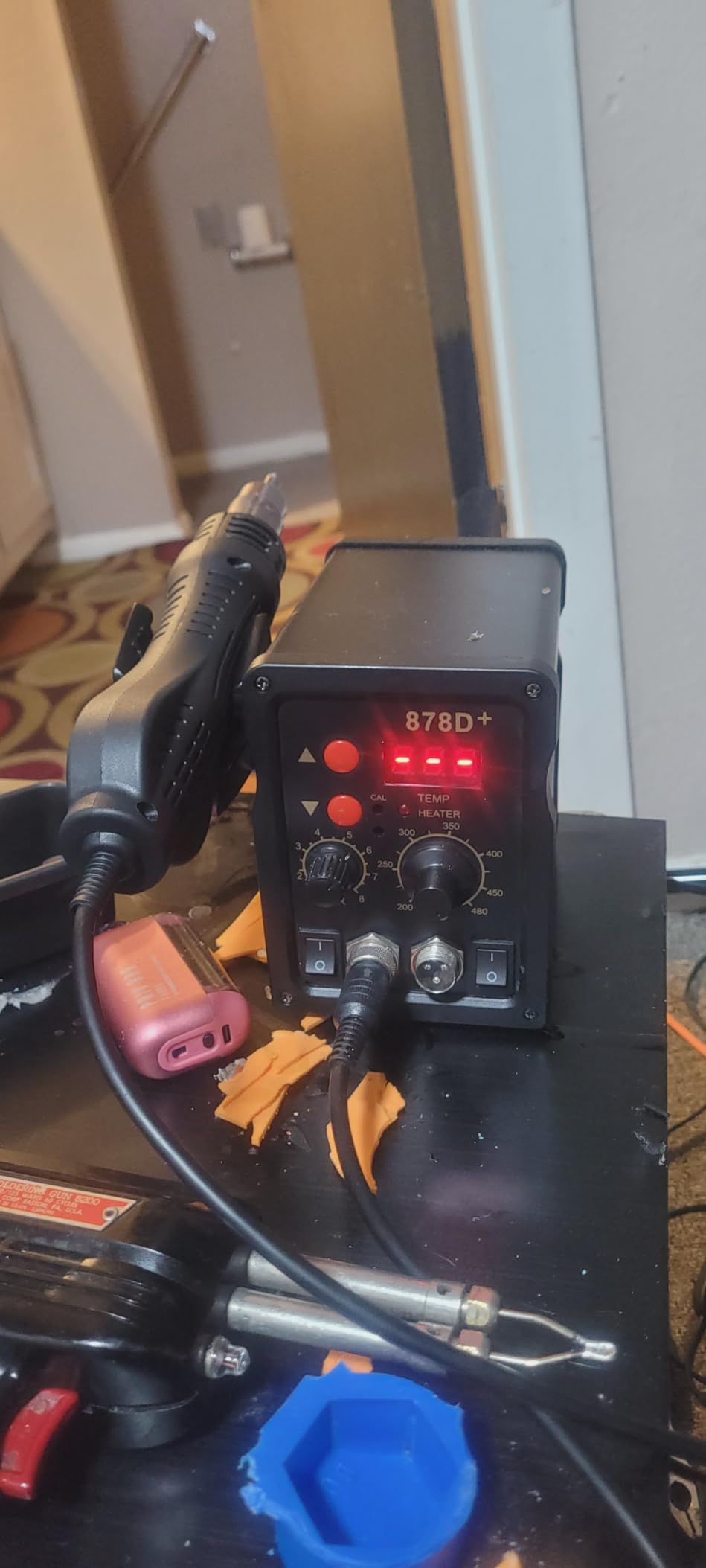

10. Beaiguna 2-in-1 Review: A First Station With Manual Calibration
Beaiguna 2 in 1 Hot Air Rework Soldering Iron Station Kit, Precision Circuit Board Soldering Gun Kit, Rapid Heat up Solder Station, Upgrade Dual System Independent Control, Auto Sleep & Calibration
700W pure copper transformer
Iron 392-896F by knob
Hot air 212-896F digital
Dual calibration for both handpieces
+ The Good
- One of the most affordable full 2-in-1 units
- 700W copper-wound transformer heats quickly
- Manual calibration for iron and hot air
- Auto-sleep and C/F conversion
- Compact body with independent dual switches
- The Bad
- Lowest rating in the group at 4.2
- Digital display shows hot air temperature only
- Some tips seat loosely in the chuck
- Fewer accessories than YIHUA and WEP kits
The Beaiguna SS-001 is one of the most affordable complete 2-in-1 units in the group, and for a first SMD station that is a legitimate reason to look at it. You get both handpieces, calibration for each, and a kit that covers a beginner’s first year.

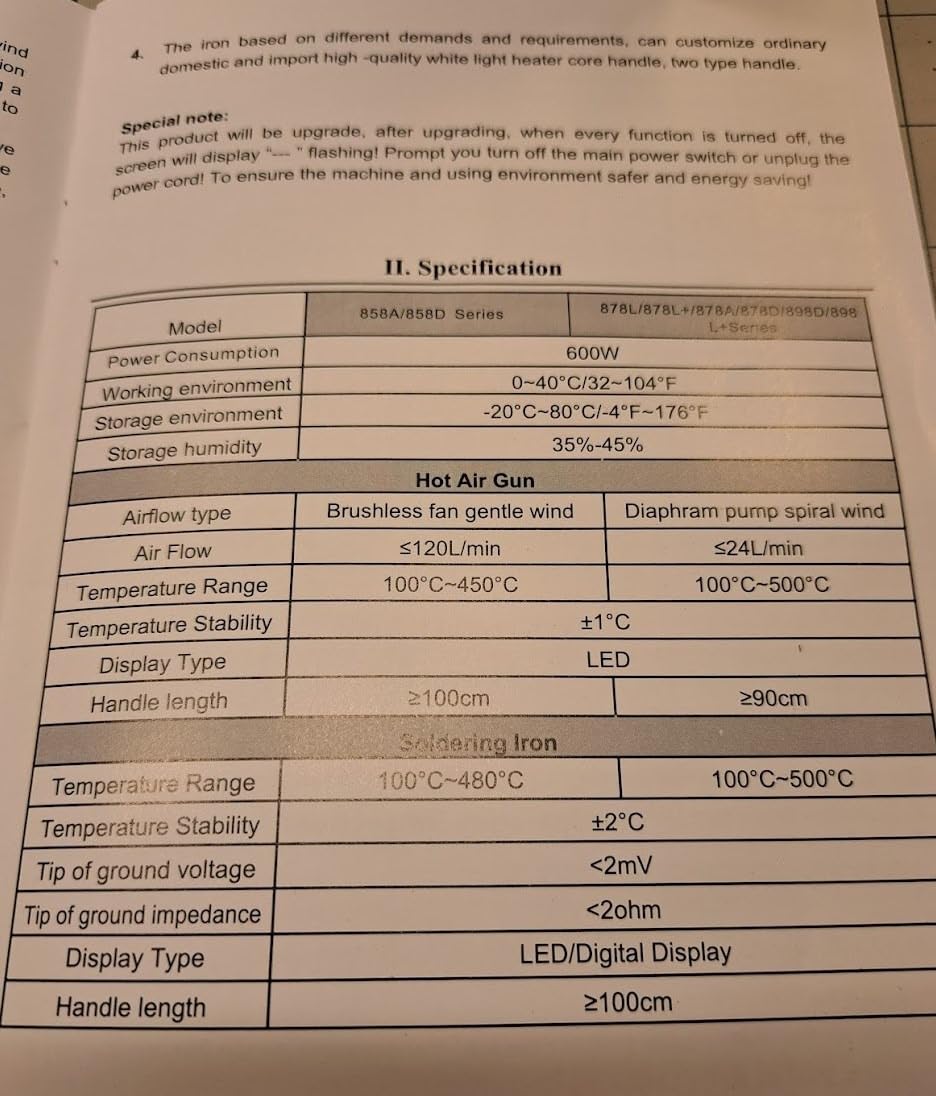

Temperature calibration is available for both the iron and the hot air gun: through the CAL hole on the panel for the iron, and a minus 99C to plus 99C offset for the hot air. Very few stations at this cost let you correct drift yourself.
The 700W rating comes from a pure copper transformer winding, and that winding is what gives the iron its quick heat-up. Independent dual switches mean you can run one handpiece with the other powered down.
The kit includes five soldering tips, three hot air nozzles, a 30g roll of lead-free wire, a desoldering pump, curved tweezers and a cleaning sponge. That is enough to start a phone board repair the same day it arrives.
Is this the right first station
If you are moving from through-hole soldering to SMD and you want one box to cover everything, it works. Many buyers report it handles phone and board repair adequately for the money.
Be clear-eyed about what you are buying. A 4.2 average with the highest share of one-star reviews in this group means more unit-to-unit variation, so check the return terms carefully before you commit.
Why the display matters more than it looks
The digital display shows hot air gun temperature only. The iron is set by a knob scale, so you cannot read what the iron is actually doing, which makes temperature work harder than it should be.
Some tips also sit loosely in the chuck and need a tap around the flange to seat. Budget a few minutes of fitting tips properly at the start, and check seating before every job.
How to Choose a Hot Air Rework Station for SMD Work
Temperature control is the first thing to check, and PID is where you should start. A station with a PID loop cycles its sensor many times per second and corrects power output continuously, which is what keeps a setpoint steady while you move the nozzle across a board. Non-PID stations rely on a slower duty cycle and drift noticeably during a long removal.
Wattage matters mainly through thermal recovery. When you lift the gun off a cold board or a large ground plane, the element has to replace the heat it just lost. Higher wattage means a shorter gap before you can move the nozzle again, and that gap is where pad lifting and collateral damage tend to happen.
Airflow type is the least understood variable. Brushed motors are louder and wear faster, brushless motors hold steadier output, and diaphragm pumps cover the same ground with a different sound signature. Whatever the type, the control matters more than the mechanism: stepped F1-F10 airflow lets you change intensity without putting the gun down, and a dedicated airflow knob beats a buried menu every time.
ESD safety is not optional for phone and tablet work. Every station here claims ESD-safe design, but the practical test is whether the handpiece, the mat and your wrist strap share a ground. Connect them before the first board goes down.
Nozzle availability decides whether you will still be happy in a year. Prefer stations using standard nozzle diameters that multiple sellers and manufacturers supply. Proprietary systems that fit only one gun turn a small consumable into a long-term dependency.
Combo versus separate is the last real decision. Separate hot air and iron stations give each tool its full power and let you replace one without losing both, and that is why most working technicians prefer it. A combo makes sense for a first bench or a shared hobby space where one box and one power switch are worth more than headroom.
Temperature Profiles, Nozzle Sizes and Bench Setup
Lead-free solder such as SAC305 melts at 217-221C, so a station that cannot deliver that range comfortably will make you compensate with longer dwell times and more flux. Tin-lead melts far lower, so the same job runs at a noticeably lower temperature. Set your lead-free profiles roughly 30C higher than leaded ones and work faster, rather than raising the temperature and dwelling longer.
For phone work on lead-free boards, a starting point of 375-400C with medium airflow is the range most technicians land on. Laptop motherboards with heavier ground planes usually need the higher end of that range, closer to 380-420C, plus bottom heat. Treat these as starting points and verify with a pyrometer, not as fixed numbers.
Nozzle diameter should roughly match the package footprint. Small passives and 0402 parts want a fine nozzle with low airflow so they do not blow away. QFN and SOIC packages take a nozzle sized to the body. Large BGA arrays and connectors need a wider nozzle and more airflow to move heat through the whole area rather than just the centre.
Bottom preheating stops the far side of the board cooking while the top is under the nozzle. It becomes necessary as boards get thicker and ground planes get larger, and the commonly cited threshold is around 1.5mm of board thickness or any heavy copper pour. Without it you will find pads lifting when the underside solder reaches melting point before the top does.
Calibrate against a known reference, not against the panel. Heat the station, check actual nozzle temperature against a pyrometer or tip thermometer, and use the calibration function where one exists. On paid work, verify quarterly, since drift inside a few months is normal on budget units and is exactly what the forum consensus warns about.
Finally, plan the bench around the station rather than the other way round. A microscope, an ESD mat with a grounded wrist strap, a fume extractor, flux, braid and a decent set of nozzles will decide your results more often than a marginal change between two stations. If you are doing full-board work rather than component-level repair, read our reflow oven comparison instead.
Matching a station to a repair job is mostly about airflow volume and temperature headroom. Here is how the ten units line up against the work people actually do with them.
Phone charging IC and MOSFET replacement. These are small packages on boards with moderate copper, so airflow control matters more than raw wattage. Stations with stepped airflow or a dedicated airflow knob let you start low and raise it as the flux activates. The YIHUA 862BD+ and the LRT 858D both handle this well, and the LRT 8858 F1-F10 steps make fine adjustment unusually simple at this tier.
Laptop motherboard MOSFET and capacitor replacement. These boards are thick, have heavy ground planes and often have several large parts close to the work area. You want high wattage for recovery and enough airflow volume to heat a wide area evenly, plus bottom preheating. The YIHUA 959D at 120L per minute is the strongest fit here, paired with the YIHUA 862BD+ if you want the iron in the same box.
USB-C port replacement on consoles and laptops. The mechanical footprint of the port is wide, so a wider nozzle and steady medium-high airflow prevents you having to hold the heat in one spot long enough to lift the connector’s ground tabs. The 750W elements in the YIHUA 862BD+ and the 8588D set recover fastest after you move the nozzle off a cold pad.
QFN and SOIC removal on dense boards. Here the risk is collateral damage rather than insufficient heat. PID control and a nozzle sized to the package body keep the surrounding parts below their own reflow temperature. The WEP 882D and the 8588D both run PID on their hot air handpieces, which narrows this risk without the price jump to a professional station.
BGA reballing and large package work. Nothing in this group is a substitute for a proper BGA rework station with a board heater and an optical alignment system. For occasional BGA work, the YIHUA 959D with a wide nozzle and bottom heat is the practical option; for regular BGA work, budget for infrared rework equipment instead.
Field and service calls. The WEP 8858-V and the LRT 8858 both pack down small, with integrated or minimal holders and a modest controller footprint. The 8858-V keeps its nozzles attached to the unit, which is genuinely useful when you are unloading a van in the rain.
One pattern holds across all of them. The bigger the board and the heavier the copper, the more the decision comes down to airflow volume and recovery time. The smaller the work, the more control granularity wins, and a fine airflow adjustment beats several hundred extra watts.
Frequently Asked Questions
Which hot air rework station is the best?
The YIHUA 862BD+ is the best all-round choice in our testing, with 750W of power, PID control cycling every 20 milliseconds, three digital displays and the largest accessory bundle in the group. For dedicated hot air work with no iron, the YIHUA 959D leads on airflow at 120L per minute and a 932F maximum.
What is the difference between a hot air rework station and a soldering iron, and when is each better?
A soldering iron heats a single tip and transfers heat through direct contact, which makes it ideal for through-hole joints, connectors and fine work. A hot air rework station heats air and blows it through a nozzle over the whole package, which lets you remove or install a multi-pin SMD component and its neighbours at once. Use the iron for joints and the hot air gun for surface-mount removal and placement.
What is the best soldering station for SMD soldering?
A 2-in-1 combo station covers both sides of the job. The YIHUA 862BD+ pairs a 75W iron with a 750W hot air element and lets you run either handpiece independently, which removes the need to buy a second device before your first repair.
What are common problems with hot air stations?
The most common issues are temperature display that does not match actual nozzle temperature, calibration drift within a few months, fan noise from worn brushed motors, airflow too strong for small parts such as 0402 components, and proprietary nozzles that are hard to source. Stations with PID control, fail-safe airflow cut-outs and standard nozzle diameters avoid most of these.
Do I need a preheater for laptop motherboard repair?
Yes, for most laptops. Boards thicker than roughly 1.5mm or those with heavy ground planes need bottom preheating, because the underside solder reaches melting point before the top and that is what lifts pads. Phone-sized boards with light copper usually do not need one.
Final Verdict on the Best Hot Air Rework Stations for SMD Repair
After ten stations and the same set of repairs on each, the YIHUA 862BD+ remains the pick we would put on any bench without hesitating. It holds temperature under load, recovers quickly, and arrives with enough tips, nozzles and tools to cover a working month.
If you want pure hot air power and already own an iron, take the YIHUA 959D for its 120L per minute airflow and three memory presets. If you are starting from nothing and counting carefully, the YIHUA 8786D I gives you the same dual-control approach with a smaller footprint, and the LRT 8858 is the cheapest route to a working digital hot air setup.
Whichever you choose, verify the real nozzle temperature with a pyrometer before you trust it, keep a set of standard nozzles on hand, and add a preheater the day you start on laptop boards. That is where the best hot air rework stations for SMD repair stop helping you and where good technique takes over.
Leave a Reply
