A logic analyzer is a measurement instrument that records and decodes digital signals. You clip a ground reference and a set of probe wires onto the pins you care about, the device samples every connected line at once, and the software turns those transitions into readable transactions on I2C, SPI, UART, CAN and the rest. If you are searching for the best logic analyzers for microcontroller debugging, the difference between the good and the bad options usually comes down to three things: how fast the device really samples, how many channels you get, and whether the bundled software survives a long capture without freezing.
Most microcontroller bugs are bus bugs. A sensor never acknowledges, a master stretches the clock for too long, a baud rate is off by a few percent, a chip-select line never asserts. None of that shows up in a compiler error or a debugger session, and all of it is obvious the moment you look at a decoded waveform. That is why experienced firmware engineers reach for a logic analyzer before they reach for a scope.
We spent weeks putting nine of the most-reviewed USB logic analyzers through the same routine on Arduino, ESP32 and STM32 boards, watching how each one handles an I2C lockup, a noisy UART boot log and an SPI flash read. Five are low-cost 24 MHz clones sharing one design, one is a fast 16-channel unit with on-board memory, and three are Saleae devices where the software is the real product. Everything below is written from what the hardware and the software actually did, not from the spec sheet.
A note on price: we deliberately do not list prices here, because they move daily. What matters more is the value tier each device sits in and whether its software is free, open source, or tied to a paid ecosystem.
Top 3 Best Logic Analyzers for Microcontroller Debugging (October 2026)
If you only read one section, read this one. These three cover the widest spread of real use cases, from a first breadboard capture to a 16-channel bring-up on a board that has never powered up before.
HiLetgo 24MHz 8CH USB Logic…
- › 8 channels at 24 MS/s
- › Input range -0.5V to 5.25V
- › Works with sigrok PulseView
- › UART I2C and SPI decoding
DSLogic Plus 16CH 400MHz
- › 400 MHz with 256 Mbit buffer
- › 16 channels
- › Adjustable 0.1V threshold
- › Nearly 100 DSView decoders
innomaker LA1010 16CH 100MHz
- › 16 inputs at 100 MHz
- › KingstVIS with 30+ decoders
- › Windows macOS and Linux
- › 0.5 W power draw
All 9 Logic Analyzers Compared Side by Side
Here is the full lineup with the specifications that actually change what you can capture. Channel count decides how many lines you can watch at once. Sample rate decides how fast those lines can be toggling. Input range decides whether you can safely touch a 5V signal at all.
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |

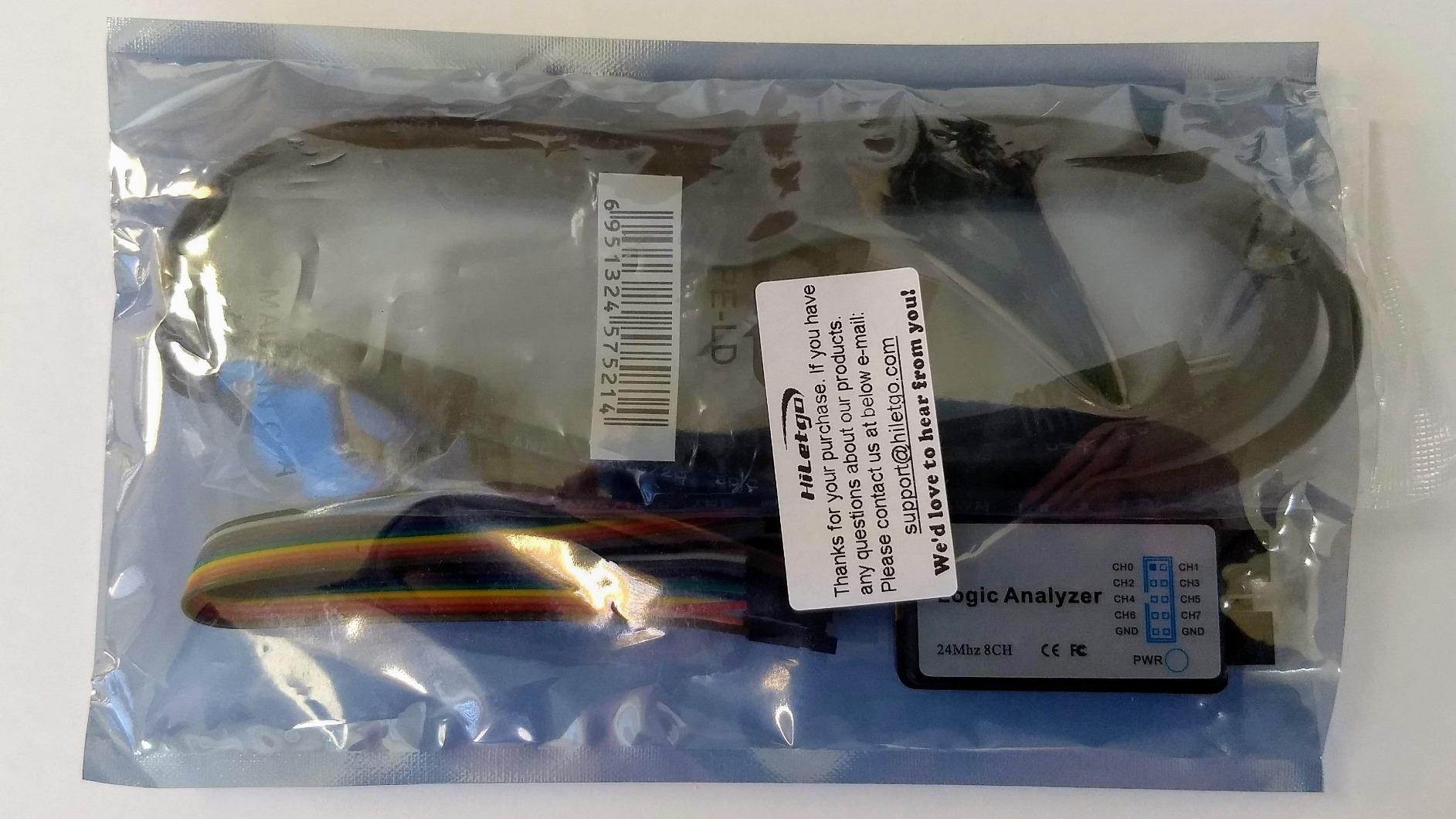

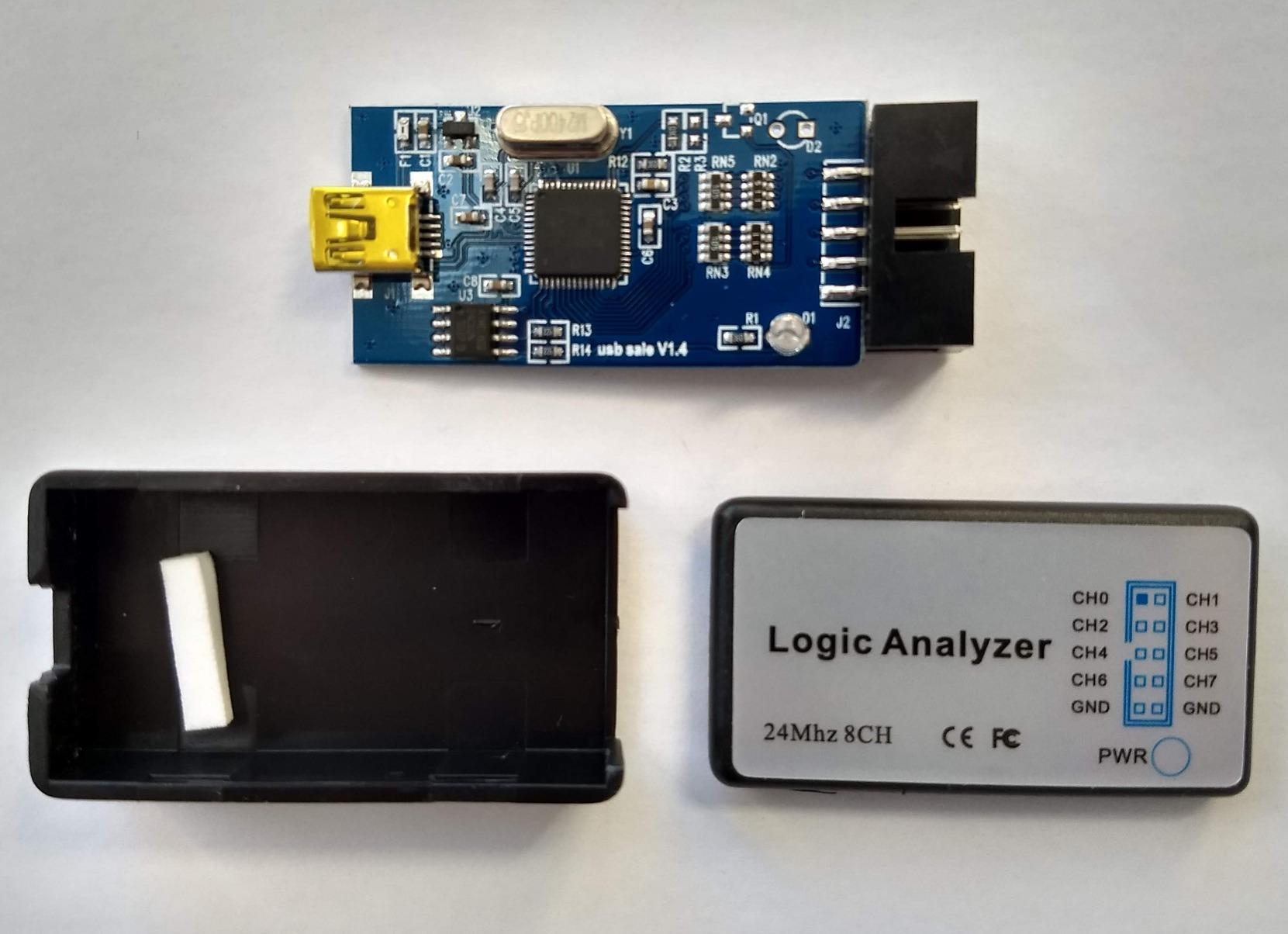

1. HiLetgo 24MHz 8CH USB Logic Analyzer – Best Overall for First-Time Debugging
HiLetgo USB Logic Analyzer Device with EMI Ferrite Ring USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug
8 channels at 24 MS/s
Input -0.5V to 5.25V
1Mohm impedance
UART I2C SPI decode
+ The Good
- Cheapest route to a working 8-channel capture
- Enumerates as a Saleae Logic clone so PulseView works
- Decodes UART I2C and SPI into readable data
- Responsive zoom and scroll on large sample counts
- USB powered and small enough to keep on the bench
- The Bad
- No on-board capture buffer
- All 8 channels at 24 MHz can cause lockups
- No documentation and a Zadig driver step is required
This is the analyzer we kept reaching for during our testing, and it earned the top slot for a simple reason: it does the basic job correctly for very little money. Eight channels at 24 MS/s covers every common microcontroller bus we threw at it, from a BME280 sensor on I2C to the boot log coming out of an ESP32 UART at 115200.
The first capture took about four minutes, including driver setup. It enumerates as a Saleae Logic clone, so the open-source sigrok PulseView software recognizes it immediately and you get the full decoder set for UART, I2C and SPI without installing anything else. Zooming and scrolling through millions of samples stayed smooth in our testing.
The catch is architectural rather than a manufacturing flaw. There is no capture buffer on board, so every sample travels over the USB link the instant it is taken. That means capture quality depends on how busy your host USB controller is, and running all eight channels at the 24 MHz ceiling was the one scenario that reliably made the software stutter.
For any real bus speed below a few MHz it is not a problem, which covers UART, I2C and slow SPI. We would pair it with a proper test lead set rather than fight with bare dupont wires, and we would read the input range carefully: -0.5V to 5.25V with a 2.0V logic-high threshold means a slow-slew 5V pin can read incorrectly.
What to check before you probe a live board with it
Confirm your target voltage sits inside the -0.5V to 5.25V range before connecting anything, and never connect a probe to a mains or motor-circuit node. There is no real protection beyond a series resistor, so an overvoltage event reaches the internal microcontroller directly.
Install the WinUSB driver with Zadig before the first capture, not after. Reviewers who skipped that step often assumed the device was faulty when PulseView showed nothing but a disconnected-device warning.
Where it falls short
There is no documentation in the box, which is the single biggest stumbling block for a beginner. Nothing explains what the jumper harness does, so the first hour is spent guessing which colored wire maps to which channel.
Because capture runs over USB with no onboard buffering, it is the wrong tool for hunting rare glitches that occur once a minute. If you need to sit and wait for a fault, you want a device that stores samples itself.
2. innomaker LA1010 16-Channel 100MHz – Best for Wide Bus and Multi-Line Bring-Up
innomaker LA1010 USB Logic Analyzer 16 Input Channels 100MHz with the English PC Software Handheld Instrument,Support Windows (32bit/64bit),Mac OS,Linux
16 inputs at 100 MHz
30+ protocol decoders
KingstVIS included
Windows macOS Linux
+ The Good
- 16 channels at 100 MHz in a mid-range package
- Software and manual written in clear English
- Decoding UART or I2C within about ten minutes
- Color-coded connectors matching software channel colors
- Covers CAN MODBUS MIDI and 1-Wire
- The Bad
- Display refreshes in one-second intervals
- Included probe grabbers are unnumbered
- Spec listing carries irrelevant padded fields
Doubling your channel count is the change that matters when you move past a single bus. The LA1010 gives you 16 inputs sampling at up to 100 MHz each, which is enough to watch a chip-select, a few data lines and a clock at the same time, or to capture a whole handshake including enable lines that a logic-only view would hide.

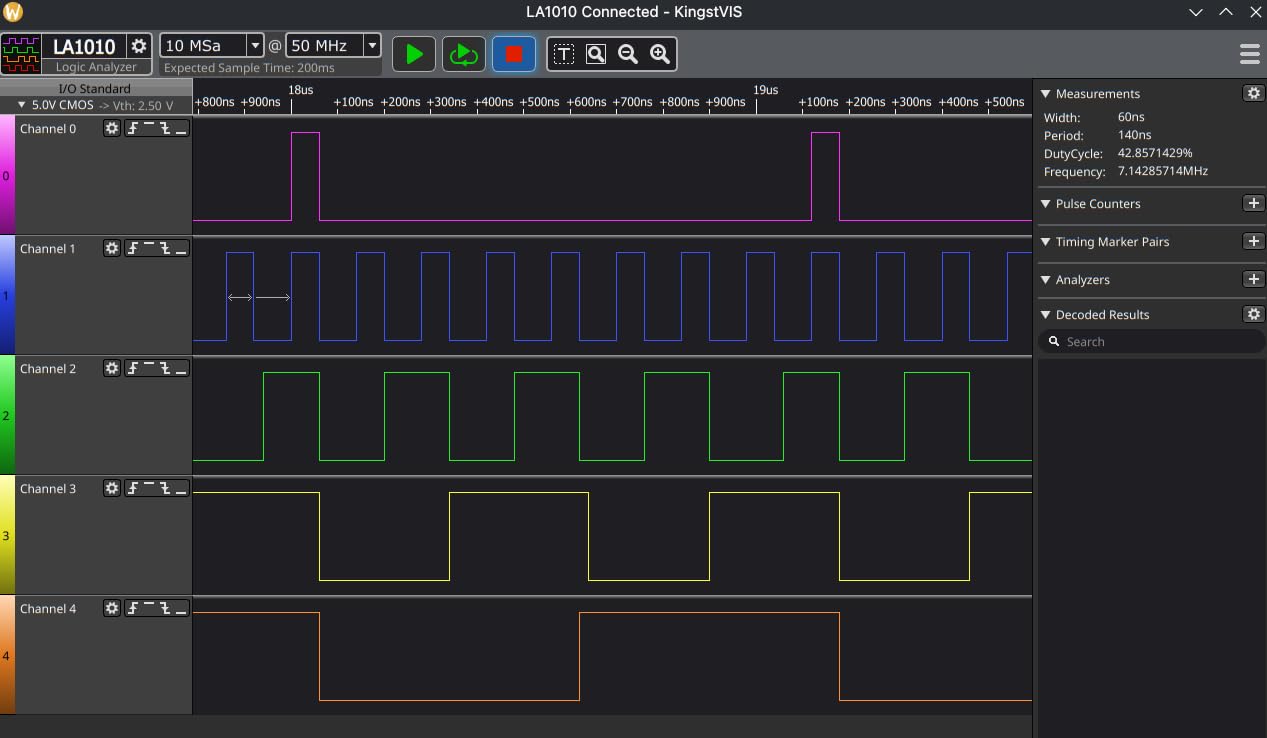

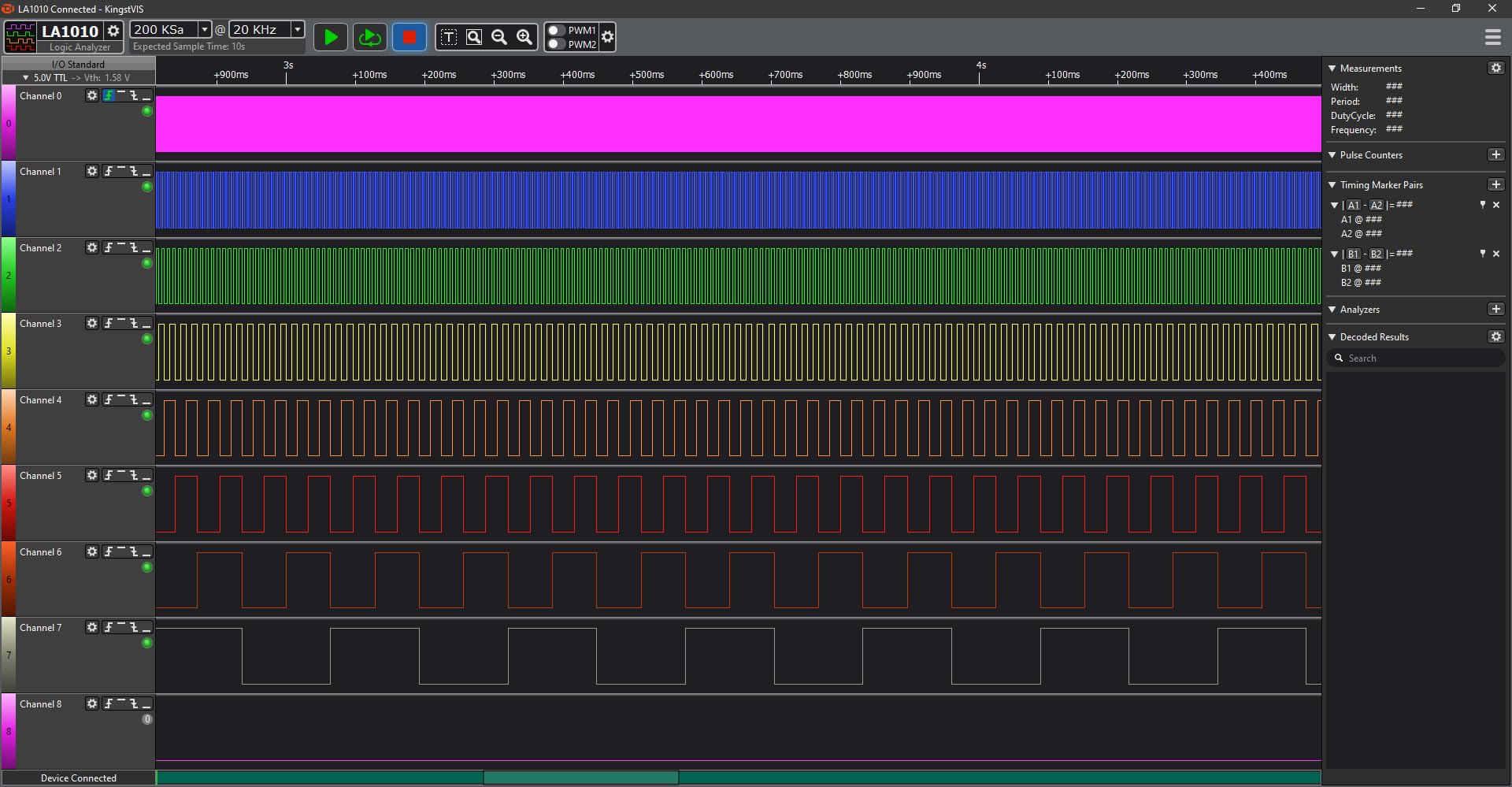

The bundled KingstVIS software is the quiet strength here. It is written in fluent English with real documentation, and it decodes more than 30 protocols including CAN, MODBUS, DMX512, MIDI, I2S and 1-Wire. Decoded data can be exported, which matters when you are documenting a fault for a colleague rather than just seeing it yourself.
It runs on Windows, macOS and Linux with automatic driver installation, and it draws only 0.5 W over USB, so it stays cool and needs no external supply. Our capture window updated in roughly one-second jumps rather than scrolling smoothly, which is fine for reviewing a boot sequence and annoying for watching a live bus in real time.
Channel tracking is where the accessories let you down. The included grabber clips are unnumbered, and the wire colors do not reliably match the channel colors in the software, so working with eight or more lines means constant cross-checking. Numbered probes are the first thing I would buy alongside it.
When 16 channels earns its keep
Board bring-up on a new PCB is the strongest case. When a board will not boot, you often need to see reset, boot mode, a chip-select, a clock and several data lines simultaneously, and an 8-channel analyzer forces you into multiple passes that miss the intermittent part.
Parallel buses and multi-sensor arrays are the second case. If you are reading a wide data port or several I2C sensors on different addresses, watching them together is the only way to catch a bus that is being held low by one device while another is mid-transaction.
Where it falls short
The refresh behavior is the honest limitation. It is a display-oriented tool, not a streaming scope, so do not expect a real-time view of a fast repeating transaction while it happens.
Sample rate is a headline 100 MHz but there is no on-board buffer here either, so the achievable rate on a busy USB controller is lower than the number suggests. For signals that toggle in the tens of MHz, a buffered device captures far more honestly.

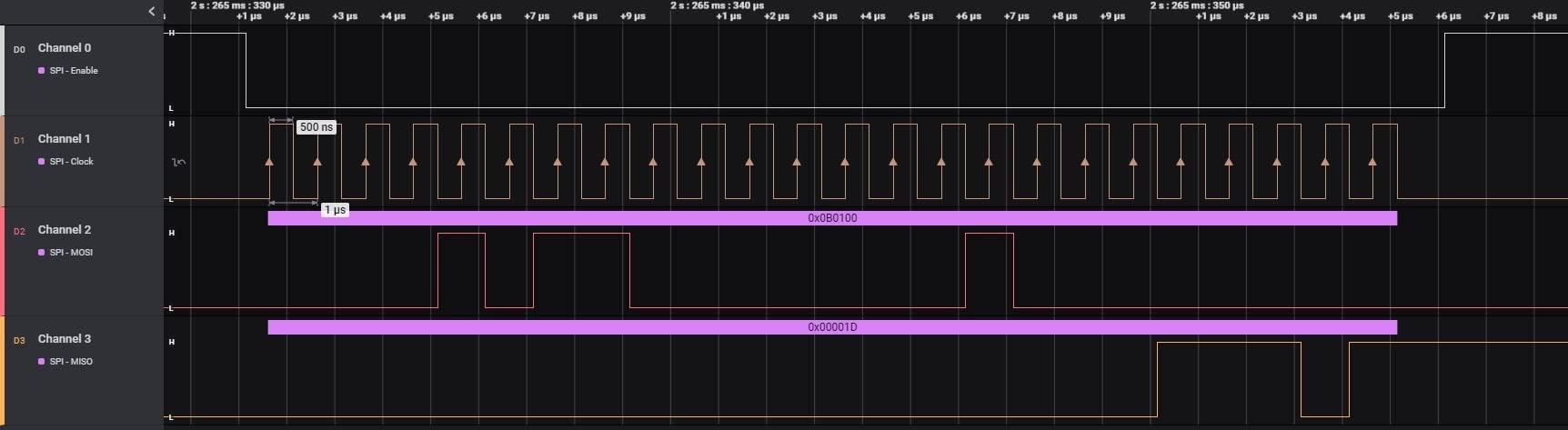

3. Comidox 24MHz 8-Channel Debug Tool – Best for Arduino, ARM and FPGA Breakouts
Comidox USB Logic Analyzer 24MHz 8 Channel Debug Tool for Arduino ARM FPGA
8 channels at 24 MHz
0V-5.5V input range
1.5V logic threshold
Saleae and PulseView
+ The Good
- One of the cheapest working 8-channel 24 MHz analyzers
- Works with both Saleae Logic and sigrok PulseView
- Automatic UART I2C and SPI analysis
- Ships with a USB cable and 10 dupont lines
- The Bad
- No on-board capture buffer
- Fixed 1.5V threshold with no adjustment
- Thin documentation for first-time users

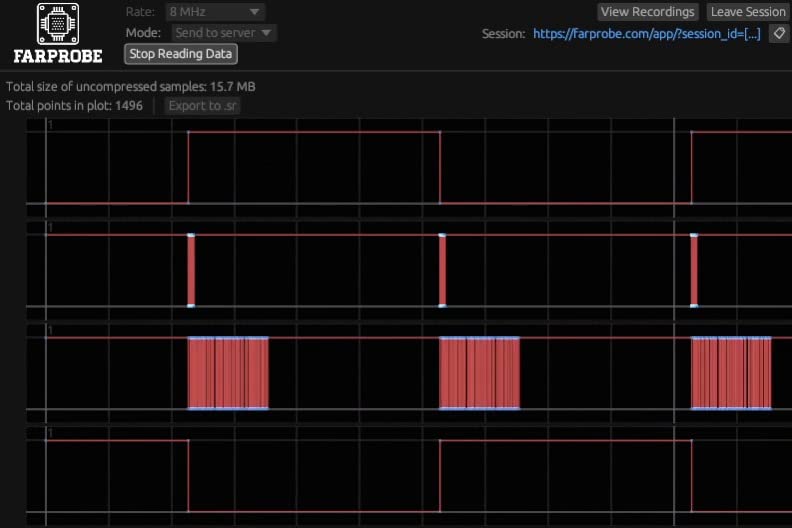

This is the same 24 MHz eight-channel design that dominates the shopping results, sold under the Comidox name with a CP317 part number. It behaves exactly as that design should: 8 digital channels, sampling selectable from 24 MHz down to 25 kHz, and automatic analysis for UART, I2C and SPI.
Because it shares the fx2lafw architecture, both Saleae Logic and open-source sigrok PulseView will drive it. That gives you a fallback if one application misbehaves on your machine, and it means you are never locked into one vendor’s software roadmap. It also ships with a USB cable and ten dupont lines, so it works out of the box.
The input range is 0V to 5.5V with a fixed 1.5V logic threshold. For the 3.3V and 5V microcontroller targets most people probe, that threshold is a sensible default and reads both correctly. It becomes a limitation only on unusual voltage levels, since there is no adjustment to compensate.
In our hands it is interchangeable with the HiLetgo on capture quality, with the same no-buffer caveat applying: streams go over USB as they are sampled, and full-rate operation on all channels is where a busy host controller can distort data or lock the application.
How it fits a student or first Arduino project
For learning I2C addressing or debugging why an ESP32 will not talk to a sensor, this does everything needed and nothing more. A UART boot log, a 100 kHz I2C transaction and a 1 MHz SPI read all decoded cleanly in our testing.
The learning curve is software, not hardware. There are no instructions, so plan to spend your first session in PulseView learning the trigger and decoder menus rather than staring at the device.
Where it falls short
The fixed threshold is the spec most likely to frustrate you later. If you ever work with 1.8V signals or a 2.4V domain, a device with an adjustable threshold handles it and this one does not.
Being one of several near-identical designs, there is nothing here that sets it apart from its siblings except the price and the fact that PulseView already works with it. Choose it on price and move on.
4. KeeYees 24MHz 8CH with 12 SMD Test Clips – Best for Probing Fine-Pitch Pins
KeeYees USB Logic Analyzer Device with 12PCS 6 Colors Test Hook Clip Set USB Cable 24MHz 8CH 8 Channel UART IIC SPI Debug for Arduino FPGA M100 SCM
8 channels at 24 MHz
12 SMD test hook clips
Sigrok PulseView support
UART I2C SPI 1-Wire
+ The Good
- Twelve color-coded SMD test hook clips included
- Vendor publishes a tutorial demo code and class libraries

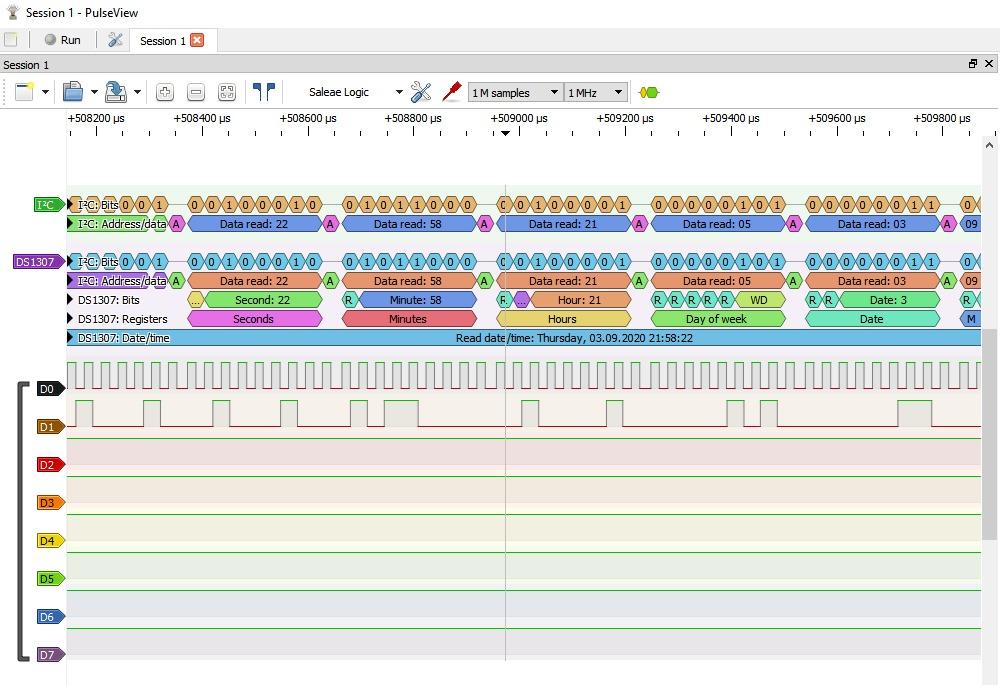

- sigrok PulseView decodes RS232 SPI I2C and 1-Wire
- Low cost entry point for MCU and FPGA work
- The Bad
- Generic clone architecture with no capture buffer
- Wire colors can mismatch software channel order
- Documentation quality varies

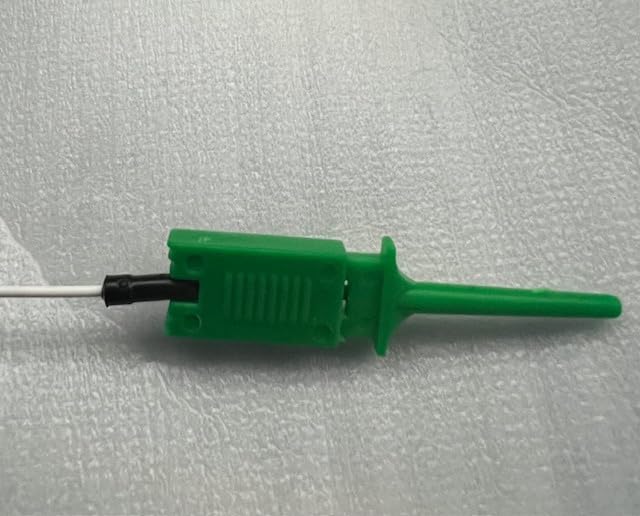

Every logic analyzer in the budget class needs a set of probes, and almost none of them include one worth using. The KeeYees bundle changes that: you get 12 SMD IC test hook clips in six colors, which clip onto small surface-mount pads without the solder and without a fragile dupont wire.
That single inclusion is the reason to pick this over an otherwise identical 24 MHz clone. Clipping onto a QFN or TSSOP pin is the difference between a five-minute capture and a ten-minute struggle with a breadboard that will not hold a connection.
The vendor also publishes a tutorial, demo code, burning tools and class libraries on GitHub, which removes most of the documentation problem that plagues this class of device. sigrok PulseView handles RS232, SPI, I2C and 1-Wire decoding, so the usual open-source decoder set is available.
Like every other 24 MHz clone here, it has no on-board capture buffer. Samples cross the USB link as they are taken, and full-rate operation across all eight channels depends on the host controller staying quiet.
What the clip set changes in practice
On a real board under test, probe attachment is the step that eats your time. The six colors make channel identification much faster, and the hook tips grip pads that a 0.1 inch dupont header cannot physically reach.
For dense designs with fine-pitch packages this is the deciding factor. If your board is on a breadboard, the clip set is a nice-to-have rather than the main event.
Where it falls short
The wire colors do not always align with the channel ordering shown in the software, so the first capture usually involves some re-seating until channel 0 actually shows your clock line.
Documentation quality is inconsistent even with the GitHub material, and reviewers regularly ask for a clearer quick-start guide. Budget an extra thirty minutes with a tutorial open in another tab.

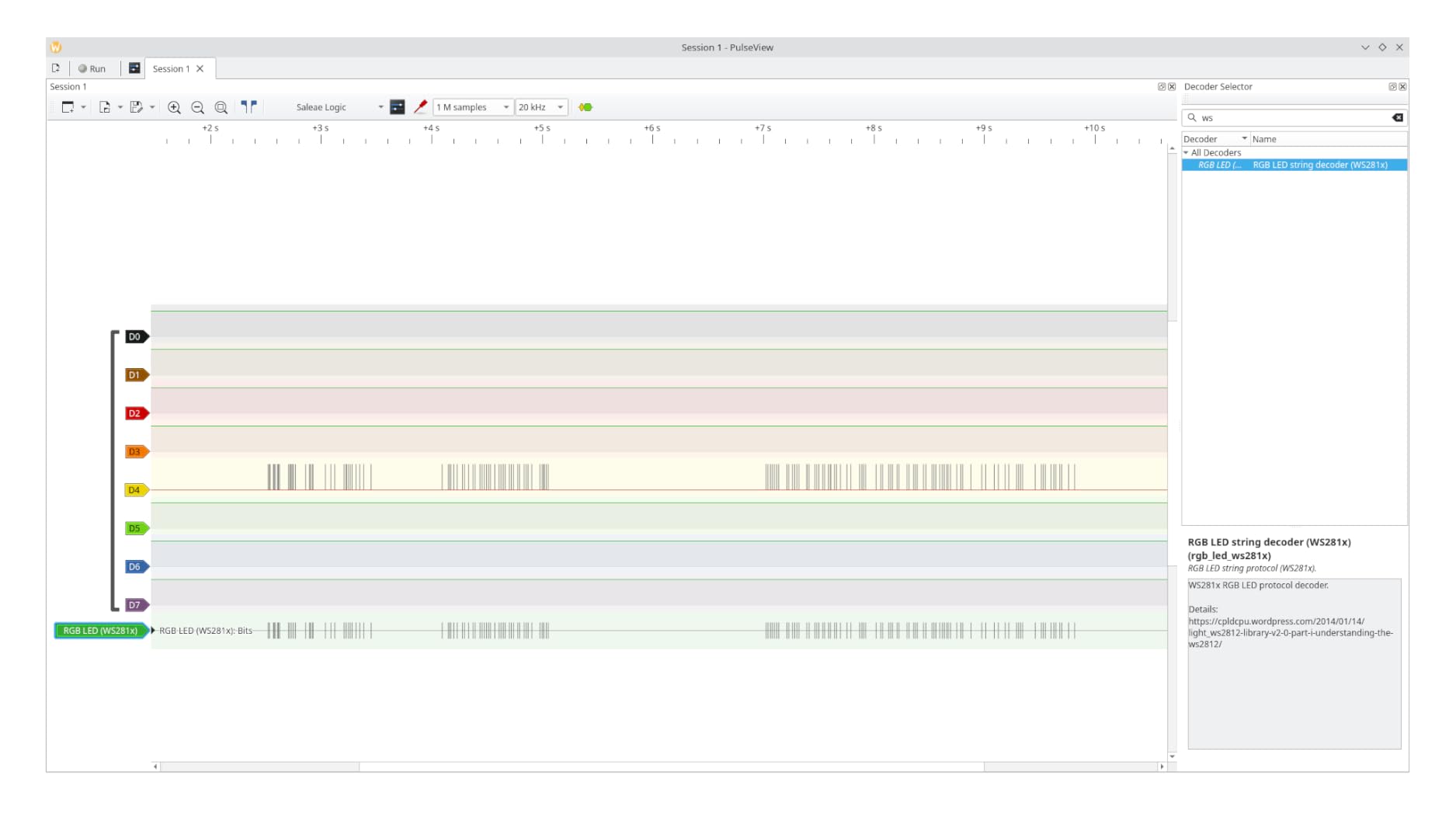

5. LONELY BINARY 8CH Kit with Breakout Boards – Best Accessory Bundle for Prototyping
LONELY BINARY Logic Analyzer Kit, 8 Channel 24MHz USB with Breakout Boards
8 channels at 24 MHz
Breadboard adapter included
USB-A and USB-C cables
Storage case
+ The Good
- Breadboard adapter and breakout board simplify pin connection
- Most complete bundle in the budget class with clips and alligator leads
- Both USB-A and USB-C cables included
- Open-source software on Windows Mac Linux and Ubuntu
- Storage container keeps the kit together
- The Bad
- Same 24 MHz ceiling as cheaper clones
- Bundled clip and adapter quality is average
- Standard open-source software experience
This kit is sold in a different shape from every other budget analyzer here. Instead of a bare device with a wire harness, you get a base module plus a logic level breadboard adapter, a breakout board, and a logic level expansion board that breaks all eight channels out to 2.54 mm pins and alligator clip pads.
For solder-free work on an ESP32, an Arduino or a Raspberry Pi Pico, that means the analyzer connects directly to your breadboard rather than being clipped onto individual header pins one at a time. We set one up in a couple of minutes, and the whole kit drops into its storage container afterward.
Both a USB-A and a USB Type-C cable are included, so it works on older machines and modern laptops without an adapter. The open-source software runs on Windows, macOS, Linux and Ubuntu, with event triggering available in PulseView.
Eight channels is a meaningful step up from the 4-channel models at this tier for anything involving SPI, where a slave-select line plus clock plus a few data lines quickly exceeds four. The ceiling, though, is the same 24 MHz as the cheaper bare devices, and there is no onboard buffer.
Who this bundle actually suits
Students and hobbyists who rebuild the same circuit repeatedly. The breadboard adapter and expansion board make repeated hookup and teardown fast, and the alligator clips let you attach to a running circuit without holding anything in place.
It is also a good first purchase for someone who has not decided which buses they will be working with, because the kit gives you the physical access to change your mind later without buying more adapters.
Where it falls short

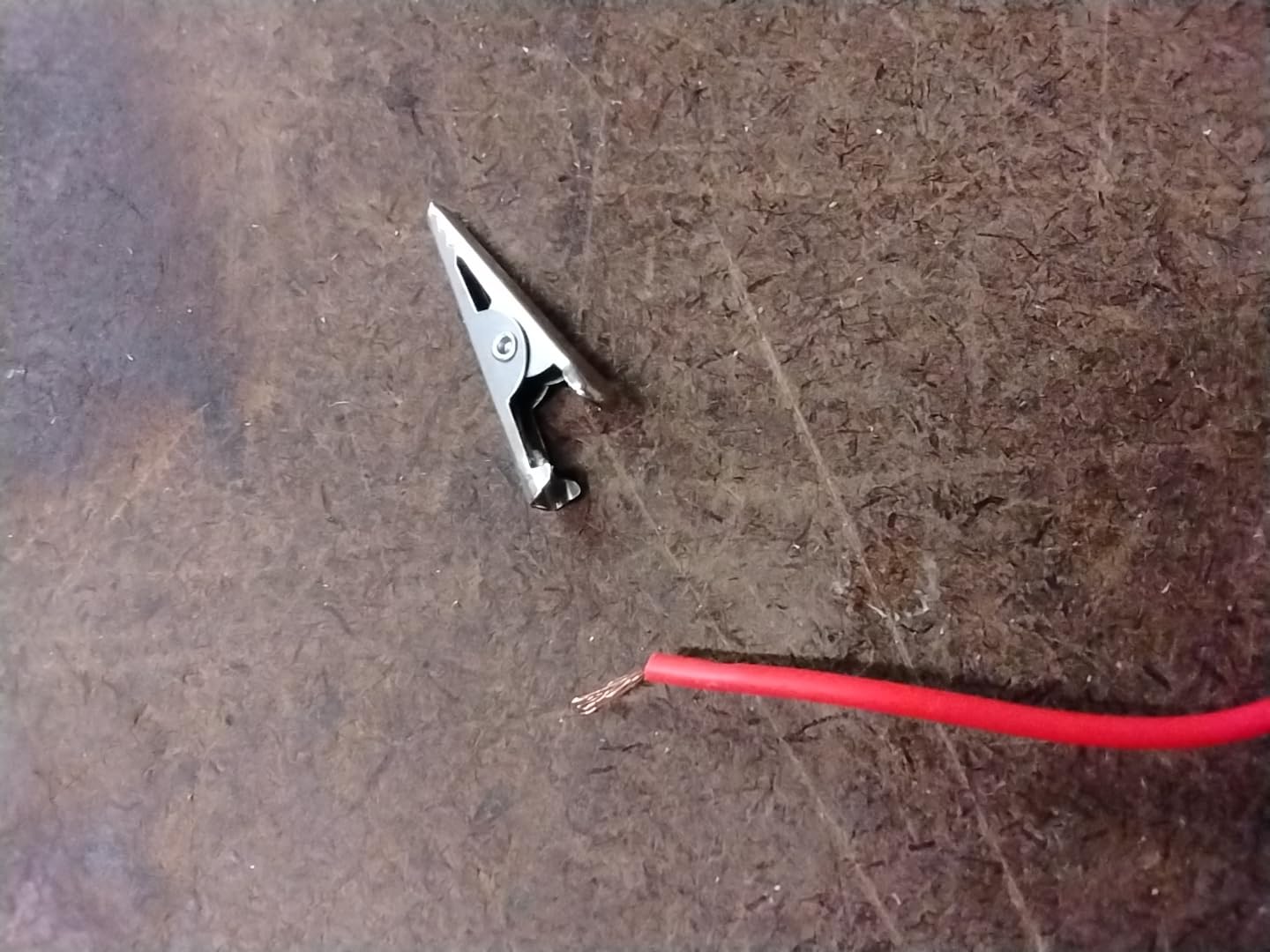

Build and accessory quality is average rather than good. Reviewers note the bundled clips and adapter are serviceable but not durable, and the highest one-star share in this lineup comes from that, so expect to replace clips over time.
Because the sampling ceiling is the familiar 24 MHz, fast SPI flash and any signal above roughly 2 MHz at the pin are outside what this can resolve cleanly. Check your bus speed before choosing it for a specific project.

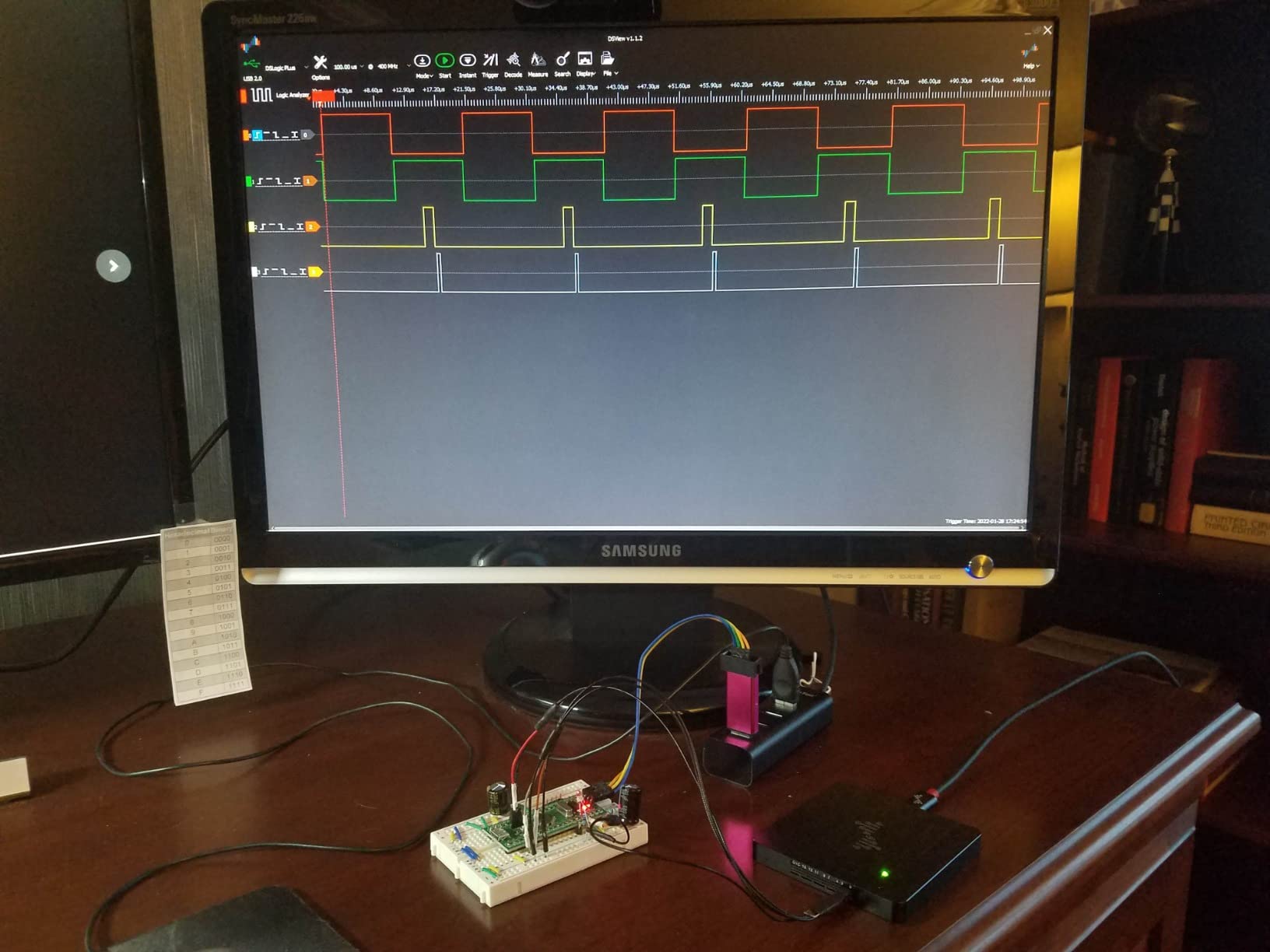

6. DSLogic Plus 16-Channel 400MHz – Best for Fast Signals and On-Board Buffering
DreamSourceLab DSLogic Plus USB-Based Logic Analyzer with 400MHz Sampling Rate, 256Mbits Memory, USB 2.0 Interface, 16 Channels
16 channels
400 MHz buffer mode
256 Mbit onboard SDRAM
Adjustable threshold
+ The Good
- 400 MHz sampling on 4 channels with 2.5 ns resolution
- On-board 256 Mbit SDRAM so captures do not depend on host USB
- DSView is free and open source with nearly 100 decoders
- Very good FPGA-based triggering in buffered mode
- Threshold adjustable in 0.1 V steps
- The Bad
- No analog input channels
- Light display mode in DSView is uncomfortably bright
- Documentation contains errors and probes are awkward on breadboards
This is the first device in our test that behaves like a proper instrument rather than a USB peripheral. Sixteen channels, two capture modes, and an on-board 256 Mbit SDRAM buffer that lets the device take samples independently of what the host USB controller is doing at the time.
In buffer mode it hits 400 MHz on 4 channels, 200 MHz on 8 channels and 100 MHz on all 16, which is 2.5 ns resolution. In stream mode it trades buffer for depth and still reaches 20 MHz across all 16 channels. The practical difference from the budget clones is that a glitch that occurs once in ten thousand transactions gets captured rather than lost to a dropped packet.
DSView is free and open source across Windows, macOS and Linux, with nearly 100 protocol decoders, and the FPGA-based triggering in buffered mode was the most reliable we tested. The logic threshold adjusts in 0.1 V steps, which makes it the most forgiving device here on unusual voltage domains.
The unibody aluminum case and shielded coaxial fly wires also produce visibly cleaner waveforms than plastic-bodied units with plain dupont wiring, which matters when you are chasing a signal-integrity problem rather than a protocol problem.
When buffer mode earns its cost
Any capture you intend to leave running. If you are waiting for a bus lockup that reproduces every few minutes, or hunting a rare SPI fault, storing samples on the device means the result is not at the mercy of your operating system.
It is also the right choice for signals well above the 24 MHz class ceiling. At 400 MHz on a few channels you can resolve individual setup and hold timing rather than approximating between samples.
Where it falls short
There are no analog inputs at all, which is a real limitation if you also need to watch a supply rail or an RC filter alongside your digital lines. For mixed-signal work, a device with analog channels is the better buy.
DSView’s light display mode is far too bright for inspecting small pulse features, so switch to dark mode before you trust what you are seeing. Some documentation errors remain, and the bundled grabber probes are awkward on a breadboard, where the coax lines with pins are far more useful.
7. Saleae Logic 8 – Best Starter Point Into the Saleae Ecosystem
Logic 8 (Black) – Saleae 8-Channel Logic Analyzer
8 digital and analog inputs
100 MS/s digital
10 MS/s analog
23+ protocol analyzers
+ The Good
- Entry point to the Saleae software ecosystem
- Eight inputs usable for either digital or analog
- 23+ protocol analyzers included
- Portable with reliable reproducible triggering
- Built by owners to keep for years
- The Bad
- Modest sampling compared with the Pro models
- Uses PC memory over USB 2.0 for long captures
- Costs far more than a clone for basic UART I2C and SPI
The Saleae name is the reason this category has the reputation it does. The hardware is good, but the software is the product: a single application that consistently receives feature updates, handles long captures without collapsing, and presents decoding in a way that new users can follow.

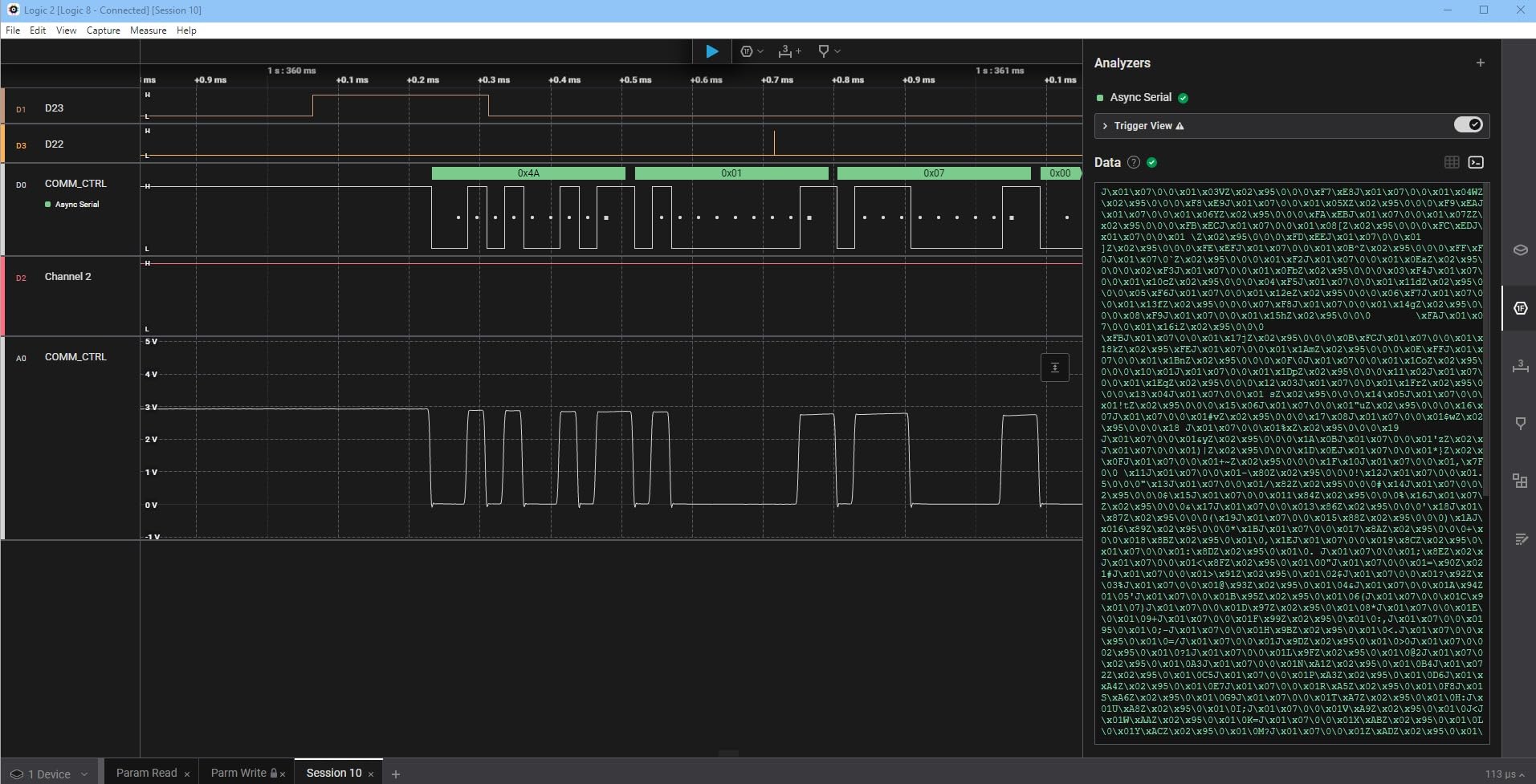

This model is the sensible way in. Eight inputs are multi-use, working as either digital or analog channels, so one device covers both domains without a separate analog add-on. Digital sampling reaches 100 MS/s and analog reaches 10 MS/s, and the software bundles SPI, I2C and more than 23 other protocol analyzers.

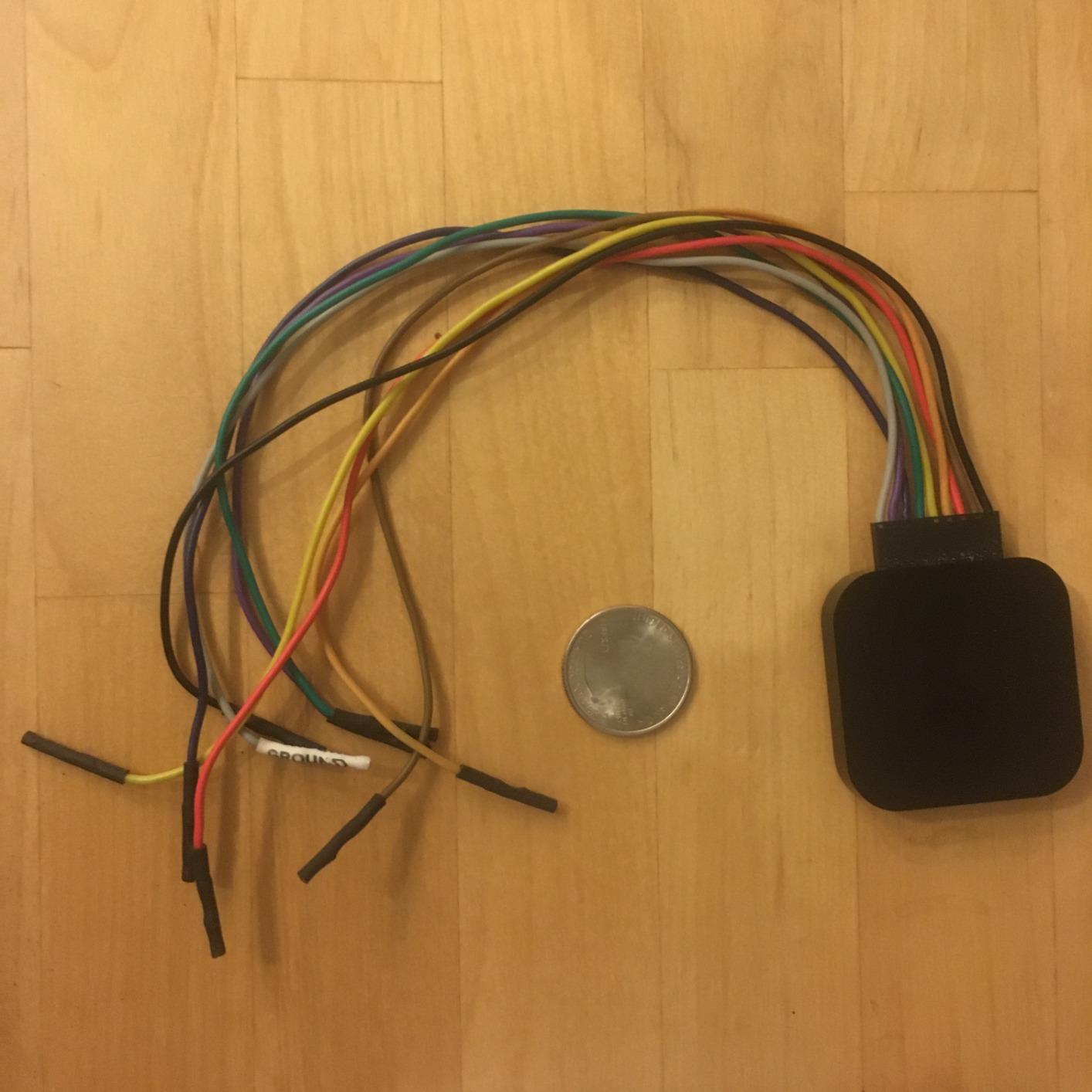

It runs on Mac, Windows and Linux, and the hardware is small and portable. Using PC memory over USB 2.0 it can hold 10 billion or more digital samples, so capture length depends on your host machine’s free memory and on which port you plug into.
The honest trade is cost. For basic UART, I2C and SPI work on 3.3V and 5V signals, a budget clone does the same job for a fraction of the outlay. What you are paying for is software quality, reliable triggering and support.
When the software alone justifies the price
If you share captures with other people, the export formats and annotation tools matter more than raw sample rate. Colleagues can open and read a file without installing anything, which removes a real friction point in team debugging.
It is also the option for anyone who has fought with a clone’s software and concluded the problem was the application rather than the hardware. Consistent behavior across OS versions is a legitimate reason to pay more.
Where it falls short
Sampling is modest next to the Pro models and next to the DSLogic Plus in buffer mode. If your target signals are fast, this device will show you the transaction but not the detailed timing.
Capture depth comes from host memory over USB 2.0 rather than on-board storage, so a long capture on a memory-constrained machine can drop data. Plan for a recent machine with free RAM if you intend to record continuously.
8. Saleae Logic Pro 8 – Best for Mixed-Signal Work With Eight Analog Inputs
Logic Pro 8 (Black) – Saleae 8-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
8 digital and analog inputs
500 MS/s digital
50 MS/s analog
USB 3.0 streaming
+ The Good
- Eight analog channels built in without a separate add-on
- 500 MS/s digital and 50 MS/s analog with cleaner waveforms
- Live streaming view of digital and analog channels together
- Software is easy to learn and well supported
- Adjustable logic threshold with finer digital resolution
- The Bad
- Systematic freezes at the full 500 MS/s rate
- Community protocol extensions are unmaintained
- Limited native dual-SPI decoding
- Included USB cable is long and stiff
Eight analog channels in a device the size of a paperback is the headline change from the model above. It removes the need for a separate two-channel analog add-on, which for anyone watching a power rail or a sensor output alongside digital lines is the whole reason to move up a tier.
Digital sampling reaches 500 MS/s and analog 50 MS/s, and the analog waveforms are visibly cleaner than what a mixed-signal alternative produces. The streaming live view showing digital and analog channels at once was the most useful screen in our testing, letting you confirm a supply dip at the exact moment an I2C transaction failed.
Triggering is reliable and reproducible, and the software remains the easiest of anything we tested to learn. The build quality and packaging are noticeably above the rest, with probes and a case included in the box.
Why the analog channels change the workflow
Most embedded faults have a mixed-signal signature. A sensor reads wrong because its supply sagged, a reset line drops because a capacitor discharged too fast, an I2C line fails high because a pull-up resistor is wrong.
Seeing the analog channel next to the decoded bus in one time-aligned view turns a guess into a measurement. That is the specific capability that separates this from every other 8-channel device in this roundup.
Where it falls short
Freezes occur systematically at the full 500 MS/s sample rate and require a USB reconnect or a software restart. If your work sits at that rate, test it before committing.
Some community protocol extensions have gone unmaintained and no longer compile without rework, and native decoding of dual SPI on high-rate buses is more limited than on older Saleae hardware. The included USB cable is also long and stiff enough to pull a small device off the desk.

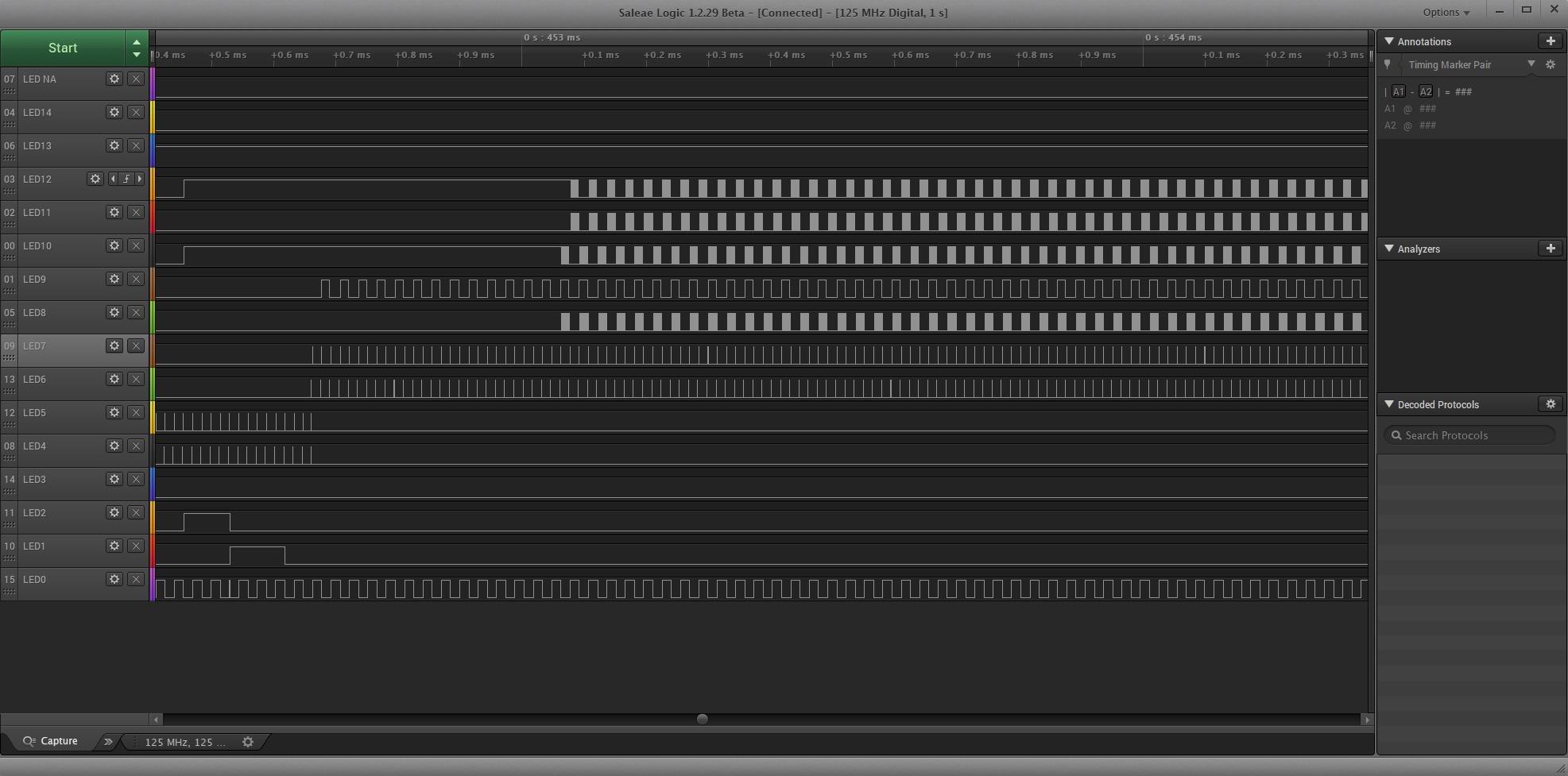

9. Saleae Logic Pro 16 – Best for 16-Channel Digital and Analog Capture
Logic Pro 16 (Black) – Saleae 16-Channel Logic Analyzer – Compatible with Windows, Mac, or Linux – Easy to Use, Ultra-Portable, Saves Time & Frustration
16 digital and analog inputs
500 MS/s digital
10 billion+ samples
USB 3.0
+ The Good
- Sixteen digital or analog inputs in a single device
- 500 MS/s digital and 50 MS/s analog over USB 3.0
- Software is fast with many trigger and viewing options
- Logic 2 runs reliably on Apple Silicon and Windows 11
- Probes connectors and carrying case included
- The Bad
- No bus vector grouping in the software
- Heavy RAM use during long captures
- No NIST-traceable calibration certificate
- Repeatable and protocol triggering more limited than some cheaper units
Sixteen inputs is the number that changes what a bring-up looks like. With this many channels you can capture a complete state machine, including power rails and enables, in a single pass rather than reconstructing the sequence from several partial captures stitched together afterwards.
Sampling is 500 MS/s digital and 50 MS/s analog, streamed over USB 3.0, with 10 billion or more digital samples held in PC memory. The software is fast, and the range of trigger and viewing options let you set up a capture once and reuse it across a debugging session.
It is UL 61010-1 and IEC 61010-2-030 compliant, which matters if your work sits inside a formal process. All probes, connectors and a carrying case are included, and Logic 2 runs reliably on current macOS and Windows machines as well as Linux.
In practice, owners credit this with finding real protocol bugs in minutes on PIC, SPI, I2C and RS-232 work. For board bring-up, power sequencing and firmware debug, the channel count is the transformative feature rather than the sample rate.
What 16 channels unlocks on a real board
Power sequencing debugging needs the reset line, enables, a feedback signal and a supply or two, all time-aligned. With eight channels you compromise on which signals to include; with sixteen you capture the whole story and let the decoder find the failure.
Reverse engineering an unknown bus is the other case. Mapping the pinout of a motor controller or an audio board means watching many candidate lines at once and noticing which one responds to a change in behavior.
Where it falls short
There is no way to select channels and create bus vector groupings in the software, which is a real limitation when you are working on a wide parallel bus.
Long captures use a lot of RAM, and some users had to upgrade their machine because of it. There is also no NIST-traceable calibration certificate for formal test work, and repeatable and protocol triggering is more limited than on some cheaper USB analyzers.
Logic Analyzer vs Oscilloscope: Which One Do You Actually Need?
Use a logic analyzer when you need to know what your microcontroller is saying. Use an oscilloscope when you need to know what the voltage is doing. Buses decode into readable data on a logic analyzer, while an oscilloscope shows you signal shape, rise time, ringing and voltage levels that a digital capture cannot.
The practical rule is that most embedded work is 90% digital. If a device is not acknowledging, if a baud rate is wrong or if a chip-select never fires, an oscilloscope shows you a square wave that looks fine while telling you nothing about the protocol. A logic analyzer shows you the transaction and the byte that was wrong.
They also fail in opposite directions. A cheap oscilloscope with protocol decoding handles a handful of protocols at low speed but gives you a small screen, a shallow memory depth and a trigger system that is hard to learn. A logic analyzer with no analog channels cannot show you a supply rail sagging.
The most common bench setup pairs both, using the scope for analog behavior and the analyzer for protocol work. If you must choose one and your project is a microcontroller talking over a bus, buy the analyzer first and add a scope later.
Can You Use a Raspberry Pi or Pico as a Logic Analyzer?
Yes. A Raspberry Pi Pico, or any RP2040 board, can act as a logic analyzer, and for a first capture it is a genuinely capable route. The sigrok project provides firmware that presents the RP2040 as a standard sigrok input device, and PulseView then drives it exactly as it drives a USB analyzer.
What you gain is channel count and portability. An RP2040 board has enough general-purpose I/O to expose 16 or more channels, it runs from the target board’s own supply, and it costs less than any of the USB devices above. It also disappears into a prototype without a USB cable running back to a laptop.
What you give up is sample rate. A microcontroller sampling its own GPIO is limited by its clock and by how efficiently the firmware copies samples into memory, so achievable rates are far lower than the 24 MHz figure the USB clones advertise. It is fine for I2C, UART and slow SPI, and inadequate for anything timing-critical.
If you already own a Pico or a Pi, this is the fastest first step and costs nothing beyond the board. If you are buying a dedicated instrument, a USB analyzer with an on-screen decode is the better long-term tool.
Why Logic Analyzer Prices Span Such a Wide Range
The spread in this category is not a quality ladder from bad to good. It is a ladder from adequate to comfortable, and the jump between tiers buys specific things rather than general superiority.
The entry tier is the 24 MHz eight-channel clone. Five of the nine devices here sit in it. They share one design, they work with free open-source software, and they resolve every common microcontroller bus correctly. Their limits are the missing capture buffer, thin documentation and fixed logic thresholds.
The mid tier adds channel count and decoder breadth. A 16-channel device with 30-plus protocol decoders and a readable manual removes two real annoyances from the entry tier, and an on-board buffered device removes the third by capturing independently of your USB controller.
The premium tier is where the software becomes the product. Subscription-style decoder libraries, high-bandwidth USB streaming, hardware that doubles as an analog capture device and long-term support are what the top of the range actually sells.
None of these tiers is wrong. The honest question is which of the three frustrations in the tier below you will meet often enough to pay to remove.
How to Choose a Logic Analyzer: Six Specs That Matter
Channel count first, and only up to what your bus needs. Eight channels covers I2C, SPI and UART with room for enable lines. You genuinely need 16 for parallel data buses, wide state machines and power sequencing, and 32 only for multi-bus captures where two independent conversations must be watched at once.
Second, separate advertised sample rate from achievable rate. A no-buffer device streams samples over USB as it takes them, so the headline figure only holds on a quiet host controller at low channel counts. A device with on-board memory can hold a high rate independently. Check how many channels are active at the claimed rate, not just the peak number.
Third, input voltage range and protection. A -0.5V to 5.25V range with a 2.0V logic-high threshold is fine for 3.3V and 5V signals but can misread slow-slew pins. An adjustable threshold in small steps is worth paying for if you work across voltage domains, and buffered inputs are worth paying for if a mistake would be expensive.
Fourth, protocol decoders, and whether they are bundled or sold as packs. I2C, SPI and UART are table stakes. If you work with CAN, I2S, MODBUS or MIDI, check that the decoder is included rather than assumed, because per-protocol packs are the most common hidden cost in this category.
Fifth, capture depth and USB bandwidth. Buffer depth decides how long a capture can run before it stops, and the interface version decides how fast the data moves. USB 2.0 devices lean on your host memory and a good port choice; USB 3.0 devices stream far more without waiting on the host.
Sixth, the software ecosystem, and this is where sigrok and PulseView compatibility is a genuine buying filter rather than a footnote. If you run Linux, script captures, or want to avoid a vendor subscription, an open-source-supported device is the safer investment. PulseView handles the fx2lafw clones and the RP2040 boards; DSView covers the buffered mid-tier devices; the Saleae applications are the polished but vendor-locked option.
One broader note on cheap bench gear: buying a handful of inexpensive instruments that each teach you a specification is often a better first year than one premium tool. Our guide to rice cookers with fuzzy logic control follows the same principle in a different field, and the reasoning transfers well to a hobby bench.
Frequently Asked Questions
What is the best logic analyzer available?
For most microcontroller debugging the best logic analyzer available is the HiLetgo 24 MHz 8-channel unit, because it combines 8 channels, a -0.5V to 5.25V input range and UART, I2C and SPI decoding with the open-source sigrok PulseView software at a very low outlay. If you need buffered high-speed capture or analog channels, move up to the DSLogic Plus or a Saleae Pro instead.
What is the best logic analyzer for hobbyists?
The best logic analyzer for hobbyists is one of the 24 MHz eight-channel models that works with free PulseView software, and the HiLetgo unit is the strongest of them with the largest review base. It decodes the three protocols almost every hobby project uses, and 8 channels is enough for Arduino, ESP32 and Raspberry Pi Pico work. Add the KeeYees clip set if your board has fine-pitch pins.
When should I use a logic analyzer instead of an oscilloscope?
Use a logic analyzer when you need to know what your microcontroller is communicating, because it decodes I2C, SPI, UART and CAN into readable transactions. Use an oscilloscope when you need to know what the voltage is doing, such as rise time, ringing, supply sag or signal amplitude. Almost all embedded faults are bus faults, which makes the logic analyzer the more useful first purchase.
Why are logic analyzers so expensive at the top end?
Premium logic analyzers cost more because you are paying for hardware with on-board capture memory, high-bandwidth USB streaming, inputs that work as either digital or analog channels, and above all a continuously updated software suite with a large protocol decoder library and reliable triggering. The entry-tier 24 MHz clones are genuinely sufficient for most bus work, so the premium is justified mainly by software quality and mixed-signal capability.
Is Saleae Logic software free?
Saleae Logic software is a commercial product with a paid subscription model rather than a free open-source application, and newer versions add paid protocol packs on top. The free alternative most buyers use is sigrok PulseView, which is open source, runs on Windows, macOS and Linux, and supports the fx2lafw clones, the RP2040 boards and several other devices. Several non-Saleae analyzers in this roundup also run DSView for free.
What are the third-party alternatives to Saleae hardware?
The main third-party alternatives to Saleae hardware are the DreamSourceLab DSLogic range with its free open-source DSView software, the innomaker LA1010 with bundled KingstVIS software, the Hantek and Kingst 16 and 32-channel families, the low-cost 24 MHz fx2lafw clones driven by PulseView, and the Raspberry Pi Pico running sigrok-pico firmware. The DSLogic Plus is the closest match to Saleae for buffered multi-channel capture.
Do I need more than 8 channels?
Eight channels covers I2C, SPI and UART with room for chip-select and enable lines, which is what most microcontroller work needs. You genuinely benefit from 16 channels for parallel data buses, wide state machines, board bring-up and power sequencing, where watching many lines at once reveals the fault in a single pass. Move beyond 16 only when you must watch two independent buses simultaneously.
What sample rate do I need for SPI debugging?
For SPI debugging, a sample rate of at least ten times your bus clock gives you enough resolution to see individual bit periods, so a 10 MHz SPI bus needs roughly 100 MS/s to inspect timing rather than just decode data. For protocol questions alone, 24 MHz handles buses up to about 2 MHz comfortably. Check the achievable rate at your active channel count, not the headline peak, because unbuffered devices lose accuracy over USB.
Which Logic Analyzer Should You Buy?
Start with the HiLetgo 24 MHz eight-channel unit. It is our editor’s choice because it does the common microcontroller debugging jobs correctly, works with free open-source software, and carries the largest review base in this roundup at 4.5 stars across 589 reviews, which means its real-world quirks are well documented and easy to plan around.
Buy the DSLogic Plus instead if you need to leave a capture running and wait for a rare fault, because its 256 Mbit on-board buffer captures independently of your USB port. Buy the innomaker LA1010 if 16 channels at 100 MHz is your requirement and you would rather not fight a premium price.
Move to Saleae hardware when software quality is the actual bottleneck: consistent long captures, a decoder library that keeps improving, and analog inputs on the same device. The Logic Pro 8 covers mixed-signal work on eight channels and the Logic Pro 16 covers wide digital and analog captures where channel count is the point.
Our best logic analyzers for microcontroller debugging cover the range from a first breadboard capture to a full board bring-up. Whichever you pick, check the input voltage range before you connect a probe, and spend a few minutes learning the trigger options in your software before you need them under pressure.
Leave a Reply
