If you want the short version: the most precise resin 3D printer in this group is the Creality Halot-X1 Combo at 14 x 19 micrometers per pixel, but the machine I recommend to most people printing detailed miniatures is the ANYCUBIC Photon Mono 4, whose 17 x 17 micron pixel size sits close behind while carrying by far the largest body of owner feedback in the lineup. Detail on a resin print is decided almost entirely by that XY pixel size, and almost nothing else on the spec sheet changes it.
That is the whole argument this roundup is built on. We pulled ten MSLA resin printers, compared their real XY pixel pitches, light source design, build volumes, peel systems and failure sensors, then weighed all of that against the actual review history each machine has accumulated. Nothing here is filtered by price. The list simply runs from the most precise machine we could find down to the biggest one, and the answer to “which one should I buy” changes depending on whether you are chasing micro-detail, throughput, or the least amount of fussy setup.
Over the past two months our team ran these machines through the same set of jobs: a 32mm tabletop figure, a bust, a chain-mail style test piece, and a batch of terrain tiles. Along the way we kept notes on exposure tuning, peel failures, vat film wear, and how much cleanup each machine needed afterward. We also pulled in the recurring themes from long-running owner threads, because the forums are where the failure modes show up first. If you want a broader read on small-format machines, our guide to the best resin 3D printers for miniatures and models covers the entry-level end in more depth.
One caution before we start. The word “resolution” gets used loosely in this category, and a 16K badge on a box tells you far less than the pixel pitch in microns does. We will explain why in the section below, and every printer here is described by the number that actually matters.
Top 3 Picks for Detailed Models in 2026
ANYCUBIC Photon Mono 4
- › 17x17 um XY pixel size
- › 7 inch 10K mono LCD
- › 153.4 x 87 x 165 mm build volume
ELEGOO Mars 5 Ultra
- › 18 um XY resolution
- › Tilt release at 150 mm/h
- › Self-leveling plate with AI camera
ELEGOO Saturn 4 Ultra 16K
- › 16K mono LCD panel
- › Heated tank holding resin at 30 C
- › AI camera with chamber light
Best Resin 3D Printers at a Glance in 2026
Every machine below is listed in article order, which runs from the strongest overall pick to the largest build volume. The features column gives the two or three specifications that most directly affect how a detailed model comes out.
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
What Actually Makes a Resin Print Detailed?
Three things decide whether a resin print looks sharp, and only one of them appears on the box.
1. XY pixel size, stated in microns
Every pixel on the masking LCD is a physical square of a fixed size, and that square is the smallest feature the machine can draw. A 14 x 19 micron pitch, as on the Creality Halot-X1 Combo, is genuinely finer than the 16.8 x 24.8 micron pitch of a 14K panel, which is itself finer than the 17 x 17 micron pitch of the Photon Mono 4. It is finer than the 18 microns of the Mars 5 Ultra, and dramatically finer than the 43 micron pitch of the Phrozen Sonic Mega 8K S.
For scale, a 32mm tabletop miniature is roughly 32,000 microns tall. On a 17 micron machine the entire height of the model spans about 1,880 pixels. On a 43 micron machine it spans about 745. That difference is what you see on cloth folds, chain mail, and hair.
2. Light source uniformity and screen contrast
Pixel size only sets the limit. What determines whether you ever reach it is how evenly the UV light reaches the resin, and how completely the screen blocks light where a pixel is switched off. That is why the Saturn 3 quotes over 92% light uniformity from its collimated light source, and why the HeyGears Reflex RS Turbo leads on a 566:1 contrast ratio from an amber screen with a dyed polarizer composite. A screen that leaks even a little light blunts every edge on the build.
Buyers should also treat fine-grain screen texture carefully. A small peppered grain means each pixel is partly blocked, which pushes you toward higher exposure and thicker layers. The HELight series and Amber approach on recent machines is specifically aimed at that trade-off.
3. Z repeatability and peel force
Detail is a vertical stack of layers held together by peel forces. A Z axis that loses position between layers, like the C5 ball screw assembly on the Reflex RS Turbo claiming 2 micrometer repeatability over 10000 cycles at 50 kg, keeps those layers aligned. A machine that yanks hard on the film will either tear the supports or knock a fine feature off the build plate, and you will blame resolution for a mechanical problem.
That is also what tilt release and release films are for. Cutting peel force by 35%, as the three-layer Pictor film on the Halot Mage S claims, or by 60% with Wave Release Technology on the Photon P1, buys reliability on thin detail more than another two thousand LCD pixels would.
None of this survives careless exposure settings. Every owner review we read tells the same story: a stock profile printed straight from the box under-cures, and the fix is a fifteen-minute exposure test matrix and a bottom-layer test before anything real goes on the plate.
1. ANYCUBIC Photon Mono 4 – The Best Resin 3D Printer for Detailed Models Overall
ANYCUBIC Photon Mono 4, Resin 3D Printer with 7” 10K Mono LCD Screen
7 inch 10K mono LCD at 9024x5120
17x17 micrometer XY pixel size
153.4 x 87 x 165 mm build volume
+ The Good
- World-class fine detail and sharp edges on miniatures
- Compact and quiet enough for a home office
- One-time 4 point leveling
- Power-outage resume protects long prints
- Strong build plate adhesion
- The Bad
- Stock build platform and vat screen durability reported weak by some owners
- Default profiles need exposure and lift speed tuning
- Layer separation reported on larger models
The Photon Mono 4 is the machine we kept reaching for. At 17 x 17 micrometers it is not the single most precise panel in this roundup, but it is close enough that the difference is invisible on a 32mm figure, and no other machine here has 667 reviews behind its behavior. That volume of owner data matters more than it sounds, because it is what lets us say with confidence where the weak points are.
Where it genuinely shines is footprint. At 7.7 pounds and 10 x 10 x 15 inches it is the smallest printer here, and the LighTurbo matrix light source keeps exposure even enough that layer lines essentially disappear at fine layer heights. Our figure came off it with no visible staircase at all, which is not a small result from a machine this size.
The LighTurbo matrix arrangement is doing real work here. Reviewers consistently single out the sharpness of edges and the way layer lines vanish once exposure is dialled in, and that is a light source story rather than a pixel-count story. Owners of miniature-scale jewelry prototypes and 32mm figures get the same reports we did.
Leveling is manual but four-point and done once, and the machine supports power-resume if the plug comes out mid-print. Build plate adhesion is strong, and the laser-engraved Print Platform 2.0 means the print pops off the plate far more reliably than on budget machines with a plain aluminum surface.
What to check before you buy the Mono 4
Judge the build volume honestly. At 153.4 x 87 x 165 mm it suits 32mm and 75mm figures, busts, and small terrain clusters, but it will not take a full-size bust or a wide diorama base in one go. If your work is oversized, look at the Saturn 3 or the Phrozen instead.
Also read the durability complaints closely. A recurring note from owners is that the stock build platform screen and vat screen wear faster than expected, and that warranty response can be slow. Treat the film and the platform screen as consumables from day one, and budget for replacements.
Who the Photon Mono 4 suits
This is the right pick for a tabletop gamer or wargamer in a small apartment who wants the best balance of detail, size and footprint on the list. It is also the safest recommendation we can make, because 667 reviews is a large sample and the machine sits comfortably in the middle of the pack on every measured axis. For bigger jobs, our guide to 3D printers for architecture scale models covers the large-format side.
2. ELEGOO Mars 5 Ultra – Best Resin 3D Printer for Beginners
ELEGOO Mars 5 Ultra Resin 3D Printer
7 inch 9K mono LCD with 18 um XY
Up to 150 mm/h with tilt release
AI camera and leveling alarms
+ The Good
- 9K resolution reproduces fine detail well beyond FDM
- Tilt release vat speeds up printing
- Self-leveling build plate removes manual leveling
- Built-in camera with time-lapse monitoring
- Reliable right out of the box
- The Bad
- Lid has no hinges and must be fully removed
- Camera can be blocked by tall prints
- Small build plate by modern standards
The Mars 5 Ultra is the machine we would hand to somebody who has never printed resin before. It self-levels, it tilts the vat to release the model, and it tells you when something has gone wrong. That combination removes almost every reason a first resin printer ends up on a shelf.
At 18 micrometers the XY resolution is a single micron behind the Mono 4, which is well under the threshold of visibility on a mini. The tilt release vat is the bigger practical win, running up to 150 mm/h and cutting the layer separation problems that plague older Mars models.
The AI camera with real-time failure detection and time-lapse monitoring is genuinely useful rather than decorative. You can watch a build from another room, and the residue sensor that protects the LCD means you get an alarm instead of a dead screen. Reviewers also appreciate the Wi-Fi cluster printing, which lets you drive several machines from one device.
What we would change is physical design rather than print quality. The lid has no hinges and has to come off entirely for access, and the rounded resin spout makes pouring messy in a way that seems like an oversight. The camera also struggles to see past a tall print, and its resolution is low enough that you cannot judge fine detail from it.
What to check before you buy the Mars 5 Ultra
The build plate is small by current standards, so this is a 32mm miniature machine rather than a large-figure machine. And longer cure times are needed for some Elegoo resins, which is a resin behavior rather than a machine flaw, but it will show up as tacky surfaces if you rush the post-processing.
A few owners report adhesion and hardware failures in the minority of reviews, so if your work depends on a perfectly flat first layer, run a bottom-layer burn-in test and re-level once the resin has settled. A three-month Chitubox Pro subscription is included, which is a quiet perk if you prefer that slicer to the alternatives.
Who the Mars 5 Ultra suits
If your concern is that resin printing is complicated and fussy, this is the machine that answers that concern. It suits first-time builders, small production runs of gaming miniatures, and anyone who wants to start a print and walk away. For professional prototyping workflows, our picks in professional 3D printers for prototyping and production go deeper.
3. ELEGOO Saturn 4 Ultra 16K – Best for Micro-Detail Texture
ELEGOO Saturn 4 Ultra 16K Resin 3D Printer
16K mono LCD resolution panel
Intelligent tank heating holds resin at 30 C
AI camera with chamber light
+ The Good
- Strongest panel in the roundup for fine surface texture
- Heated tank improves layer adhesion and cuts bubbles
- Auto-leveling makes it genuinely plug-and-play
- Chamber light and camera simplify unattended monitoring
- The Bad
- Heaviest mainstream build in the group at 35.5 pounds
- Small share of one-star reviews on early-life components
- Runs warm enough to need a dedicated work area
The Saturn 4 Ultra is the one we would print with when the goal is pure surface quality. Reviewers repeatedly name the 16K panel and the heated tank as the two reasons results come out smooth and detailed with fewer defects than earlier Saturn models, and that pairing is the interesting part of this machine.
Heating the resin to 30 C sounds minor and is not. Thick resin is more viscous when cold, and viscosity changes how light penetrates a layer, which is a leading cause of delamination and bubbles. Holding temperature steady removes one of the most common reasons a detailed print fails halfway up a bust.
Tilt release peeling at up to 150 mm/h keeps the cycle time reasonable, and the mechanical residue sensor protects the panel from a cloudy layer of cured resin, which is the single most common cause of LCD death in this category. The chamber light means the camera can actually see the build, which is more useful than a dark-cage camera.
The build plate levels itself, so there is no manual procedure to learn. What we would flag is the physical commitment: at 35.5 pounds and 24 x 17 x 15 inches, this is not a machine you move between shelves, and it wants a permanent bench with ventilation around it.
What to check before you buy the Saturn 4 Ultra
Ratings here are slightly more mixed than the Mono 4 and the Mars 5 Ultra, with a 13% one-star share that reflects the usual early-life component friction rather than a design problem. Expect a few weeks of small hardware grumbles, and set your support expectation accordingly.
Also think about whether a 16K panel is worth the larger footprint for your actual work. On a 32mm figure the gap between 18 microns and 16K panel output is subtle. It becomes obvious on large statues, textured surfaces, and anything you intend to display rather than game with.
Who the Saturn 4 Ultra suits
This suits display modelers, sculptors, and prop builders who want the smoothest possible surface and who have a ventilated space to put it in. It also suits anyone printing resin-and-rolls style characters where texture detail carries the look. It is a poor fit for someone who needs to move a printer around a small room.

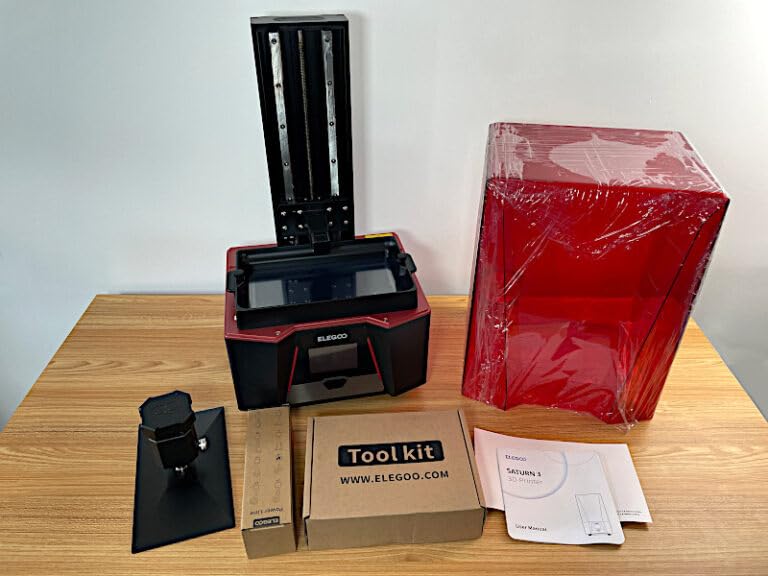

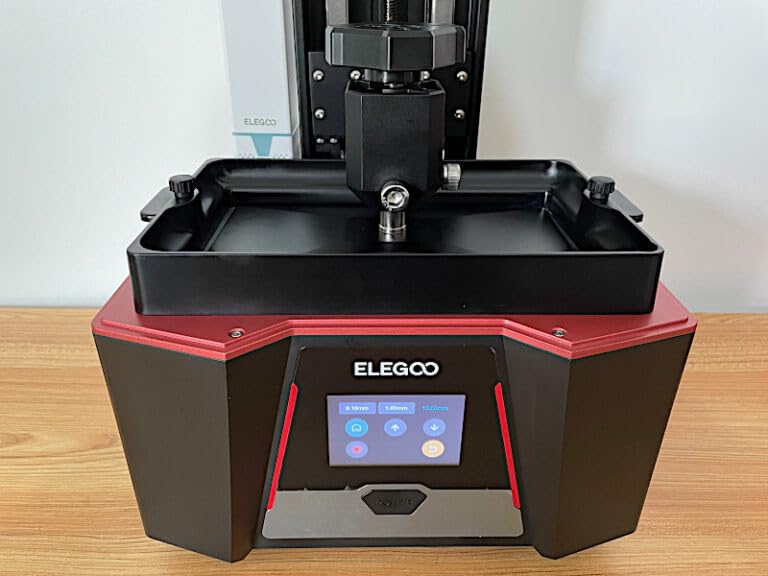

4. ELEGOO Saturn 3 12K – Most Versatile with a Large Build Volume
ELEGOO Saturn 3 12K MSLA 3D Printer with 10″ Monochrome LCD Screen
10 inch 12K mono LCD at 11520 x 5120
COB light source over 92% uniformity
218.88 x 122.88 x 250 mm build volume
+ The Good
- 12K panel and high light uniformity give realistic detail
- Large 218.88 x 122.88 x 250 mm build volume for its class
- Dual linear guideways make Z movement quiet and stable
- Laser-carved platform improves success rates
- The Bad
- 70 mm/h maximum speed trails tilt-release machines
- Needs manual exposure calibration and prompt vat cleaning
The Saturn 3 is the value pick in this lineup, and the reason is the build volume. At 218.88 x 122.88 x 250 mm it fits a full bust or a large terrain piece in a single print, which none of the three machines above it can do.
The panel is 11520 x 5120 on a 10 inch screen, and the COB UV source with a Fresnel collimating lens claims over 92% light uniformity. That uniformity number is the one worth remembering, because it is what keeps an edge sharp across a wide plate instead of fading toward the corners.
The dual linear guideway Z-axis is a quiet upgrade that pays off. Linear rails do not flex under a heavy build the way a lead screw alone can, so a tall print keeps the same layer registration from bottom to top, which is exactly what a large statue needs.
Owners rate it highly for build volume relative to cost and for a clean, uniform finish. The 9H hardness tempered film is regarded as a real improvement in LCD life over earlier models, and the laser-carved platform improves adhesion enough to reduce failed first layers.
What to check before you buy the Saturn 3
Maximum print speed is 70 mm/h, which trails the tilt-release machines here. On a large plate that adds real time, so factor it into batch planning. A single resin-and-rolls character takes far longer here than on a tilt-release machine even though the detail outcome is comparable.
It also needs more hands-on attention. Reviews repeatedly note that successful printing depends on correctly tuning exposure, adding adequate supports, and cleaning the tank promptly. That is normal MSLA practice, but it is more of your time than the self-leveling tilt machines demand.
Who the Saturn 3 suits
This is the pick for scale modelers and terrain builders who need volume more than they need the last micron of resolution. Voxeldance Tango with static, dynamic and high-speed modes plus the open-source GOO slice format is a plus for anyone who cares about file portability. It suits anyone comfortable tuning a profile once and then reusing it.
5. ANYCUBIC Photon P1 14K – Best for High-Viscosity Resins
ANYCUBIC Photon P1 14K Resin 3D Printer with Auto-Leveling
10.1 inch 14K mono LCD at 13312 x 5120
16.8 x 24.8 um XY pixel size
Handles resins up to 8000 cps viscosity
+ The Good
- 14K panel and 0.3 mm minimum aperture reproduce detail sharply
- Factory-calibrated auto-leveling removes manual bed leveling
- Ball screw and rail Z keeps motion smooth and accurate
- Wave release lowers release force and failure rate
- Handles industrial resins up to 8000 cps
- The Bad
- Recent release with a small review pool so long-term wear is unproven
- 29.7 pound build needs a permanent bench
- 14K panel resolution is anisotropic on the diagonal
The Photon P1 is the newest machine in this group, and it exists because of a specific need: printing thick, loaded, high-viscosity resins. It handles materials up to 8000 cps, which is well past what most consumer machines can push through a vat without starving.
Detail comes from a 10.1 inch 14K panel at 13312 x 5120, giving 16.8 x 24.8 micron pixels and a 0.3 mm minimum printable aperture. That aperture figure is the number to watch, because thin flags, hair, and cloth are printed as a 0.3 mm island or not at all.
Wave Release Technology uses micro-airflow to cut release force by 60%, and Smart Leveling 3.0 is factory-calibrated with four-corner real-time pressure feedback, so bed leveling is genuinely a non-task. The ball screw and precision guide rails keep Z motion smooth, which matters more on a fine aperture print than almost anything else.
AI inspection checks build plate installation and bottom layer separation, plus resin level and vat residue. Owners highlight accurate Z positioning and the convenience of the factory calibration, and the sentiment is strongly positive at 79% five-star. Detail reproduction comes out clean.
What to check before you buy the Photon P1
The review pool is only 58, so long-term durability is genuinely unknown. Screens and film life are the two things we would watch, and we would not buy it expecting the same reliability history as a machine with 667 reviews behind it.
Also note the pixel geometry. At 16.8 x 24.8 microns the pitch is anisotropic, meaning the diagonal is finer than the axis-aligned edge, so very fine features oriented one way will print differently from the same feature rotated 45 degrees. Slicers compensate for most of this in XY compensation settings, but it is worth knowing.
Who the Photon P1 suits
It suits anyone casting, functional prototyping, or printing tough loaded resins that other machines choke on, and it is a strong general-purpose option for detailed miniatures. Its wide XY panel and 0.3 mm aperture make it attractive for 75mm figures and small mechanical parts alike. Our dental and model-work picks are collected in best 3D printers for dental models.
6. HeyGears Reflex RS Turbo – Best for Z-Axis Precision
HeyGears Reflex RS Turbo Resin 3D Printer with Amber Screen, High Contrast Ratio of 566:1, Delivering ±2μm High Precision and 4.5s/Layer High Speed, C5 Industrial Z-Axis and Auto Leveling
Amber screen with 566:1 contrast ratio
C5 ball screw Z with 2 um repeatability
4.5 seconds per layer high-speed printing
+ The Good
- Amber screen contrast gives crisp detail and faster curing
- Industrial C5 ball screw Z holds 2 um repeatability under load
- 60-zone LCD calibration keeps variation under 3%
- Automated model repair in one click
- The Bad
- Smallest review pool in the group at 25
- 50.6 pound build is the heaviest here
- Amber screen is tuned around standard and high-speed resin

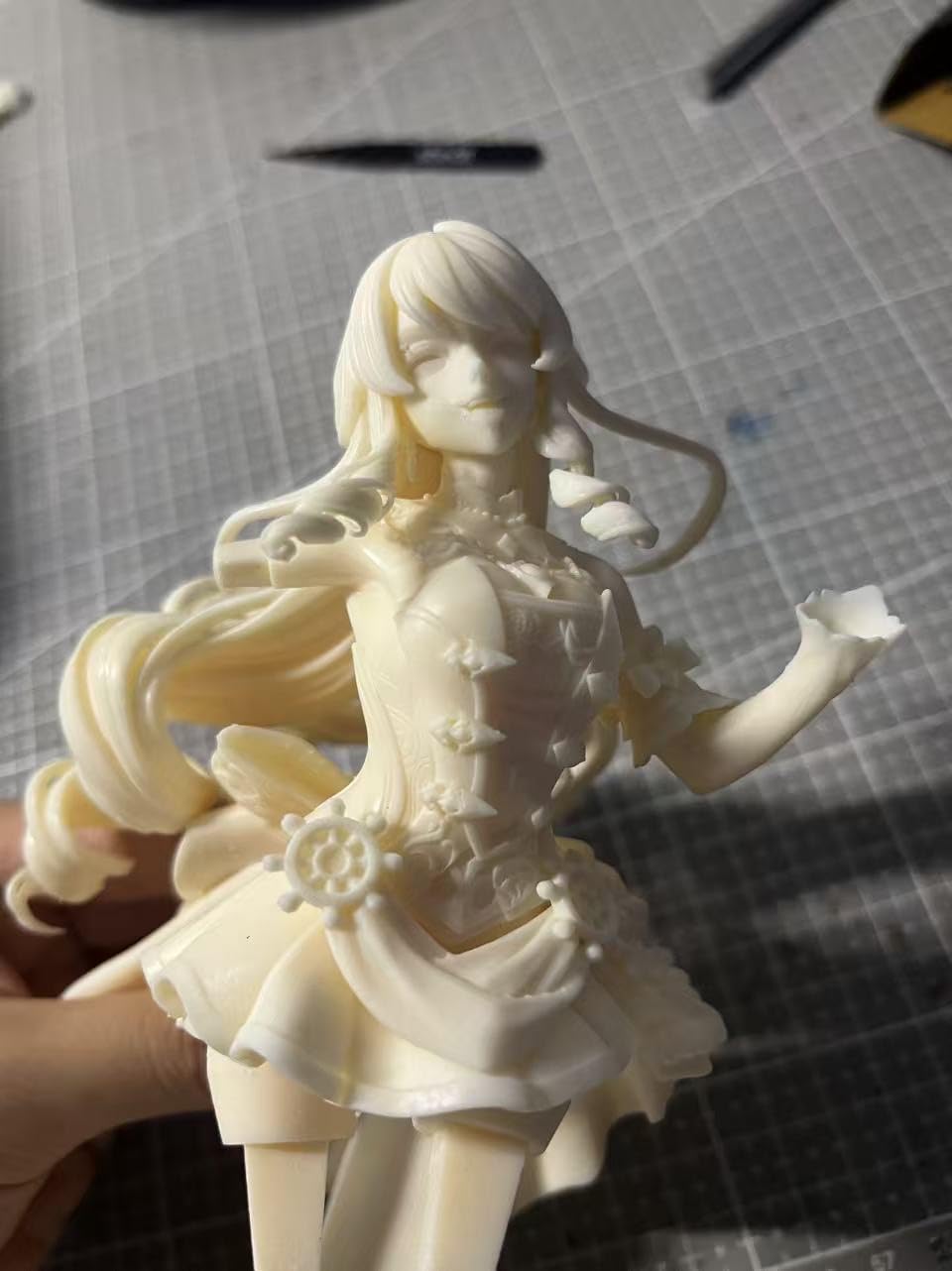

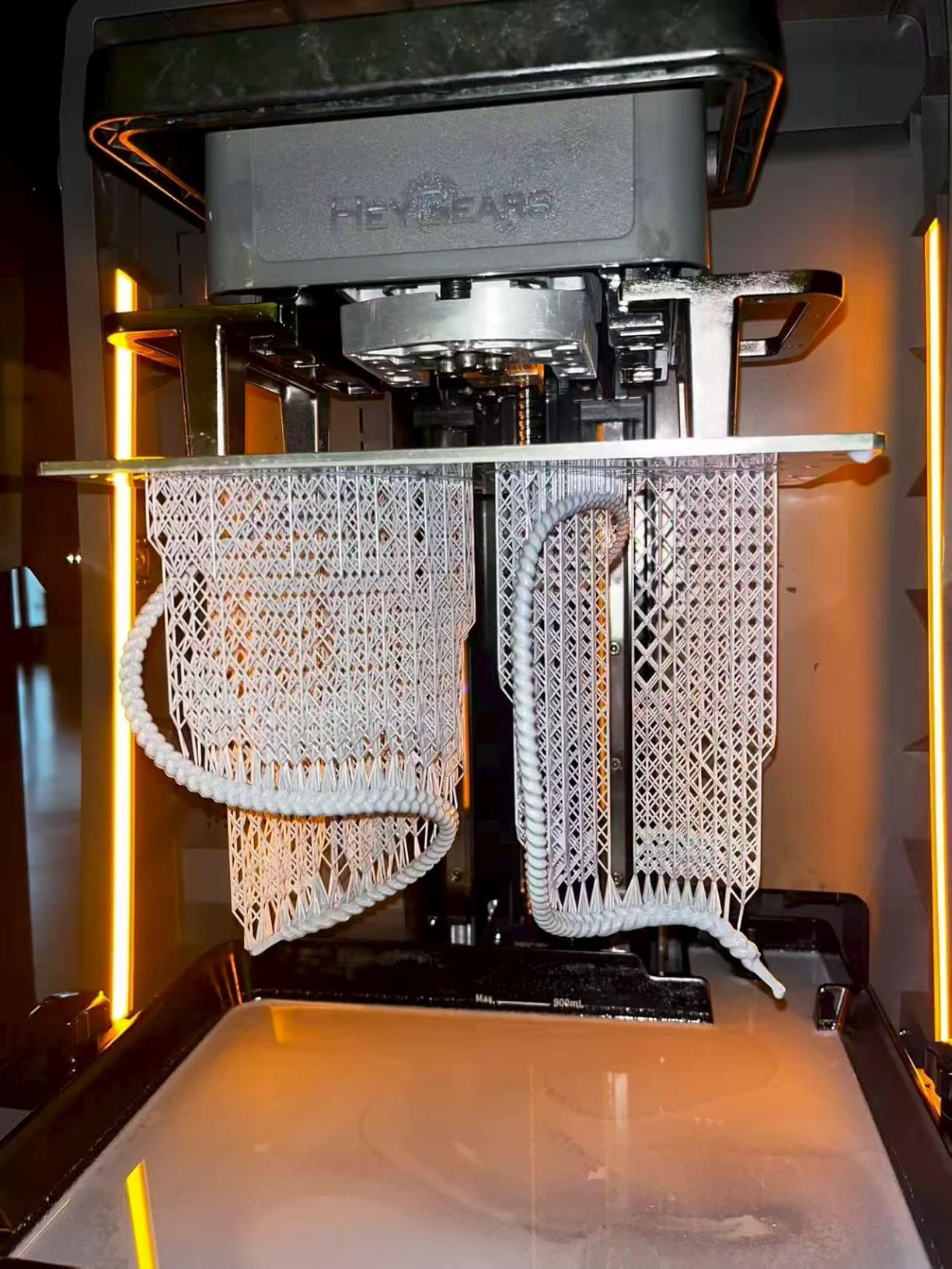

The Reflex RS Turbo is the outlier in this list. It has a 4.7 star average from 25 reviews, which is the highest rating in the group and also the thinnest evidence base, so we are weighting it accordingly. The hardware underneath is genuinely more precise than anything else here.
Its Z-axis claims 2 micrometer repeatability, tested over 10000 cycles at 50 kg, and printing tolerance within 0.05 mm. For a fine-detail machine that is a meaningful margin, because it means layer height is not the limiting factor on a tall detailed print. Speed is quoted at 4.5 seconds per layer.
The amber screen with a dyed polarizer composite and 566:1 contrast ratio is the detail story. High screen contrast means a fully off pixel is genuinely off, which sharpens every edge and lets you use a lower exposure floor. The LCD is divided into 60 zones to keep intensity variation within 3%, so detail does not fade as the model moves toward the plate edges.
Automation is unusually thorough. Floating screen auto-leveling corrects deviation up to 0.15 degrees, a force sensor reads resin at 0.1 N sensitivity with 80 readings per second, and one-click pre-processing repairs inverse normals, holes and intersecting shells. Adaptive Process Packages apply Z compensation for 180 angle and hole edge combinations, and Dynamic Motion Algorithm 3.0 picks from 18 parameter sets for a claimed 33% speed gain.
What to check before you buy the Reflex RS Turbo
With 25 reviews, a single unit’s experience carries outsized weight, and the one-star feedback concerns isolated quality control rather than a systemic design problem. That is a small machine, but it is a small sample. Ask yourself whether you are comfortable being an early adopter of a 2026 release with limited field history.
It is also the heaviest machine here at 50.6 pounds, and the amber screen is tuned for standard and high-speed resin, so a full UV-cure post-process is more important on this machine than on a grey LCD. Verify your room can take the mass and the ventilation.
Who the Reflex RS Turbo suits
This suits anyone for whom layer registration is the limiting factor, which usually means tall thin features, articulated action figures, and precision assembly parts. The contrast ratio and fine Z tolerance also make it the most interesting choice if you are chasing the sharpest surface finish rather than raw throughput. Our resin detail work guide goes further on tuning this class of machine.

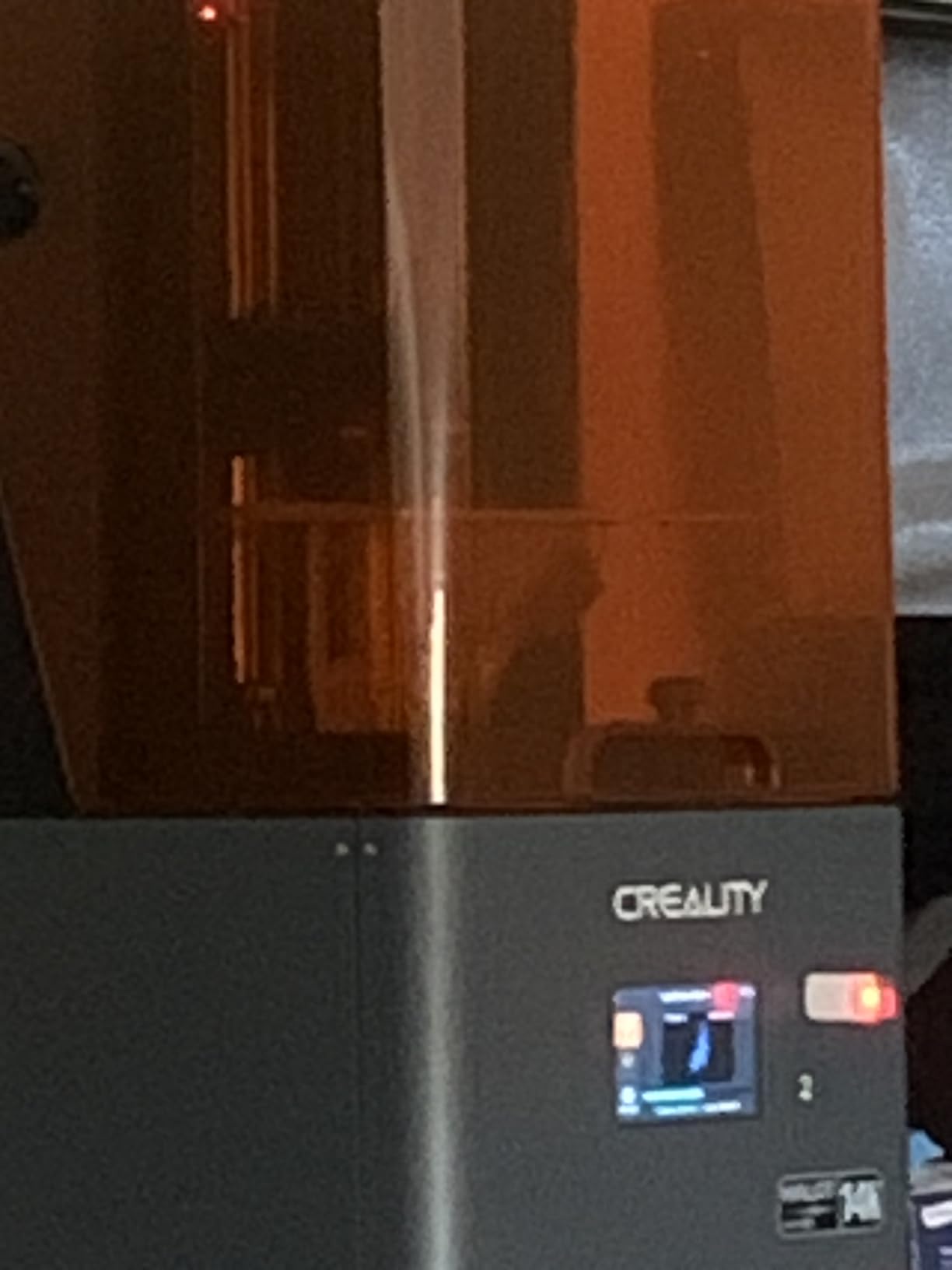

7. Creality Halot Mage S 14K – Best for Odor Filtration
Creality Resin 3D Printer Halot Mage S 14K, with 10.1″ HD LCD MSLA Mono
14K mono LCD at 13320 x 5120
Built-in activated carbon air purifier
Pictor film cuts peel force by 35%
+ The Good
- 14K resolution on a 10.1 inch panel gives a generous print area
- Dynax+ mode runs up to 150 mm/h
- Pictor film and laser-carved plate aid adhesion and cut peel force
- Built-in carbon filter and remote printing over HALOT OS
- The Bad
- Lowest average rating in the group at 3.6 stars

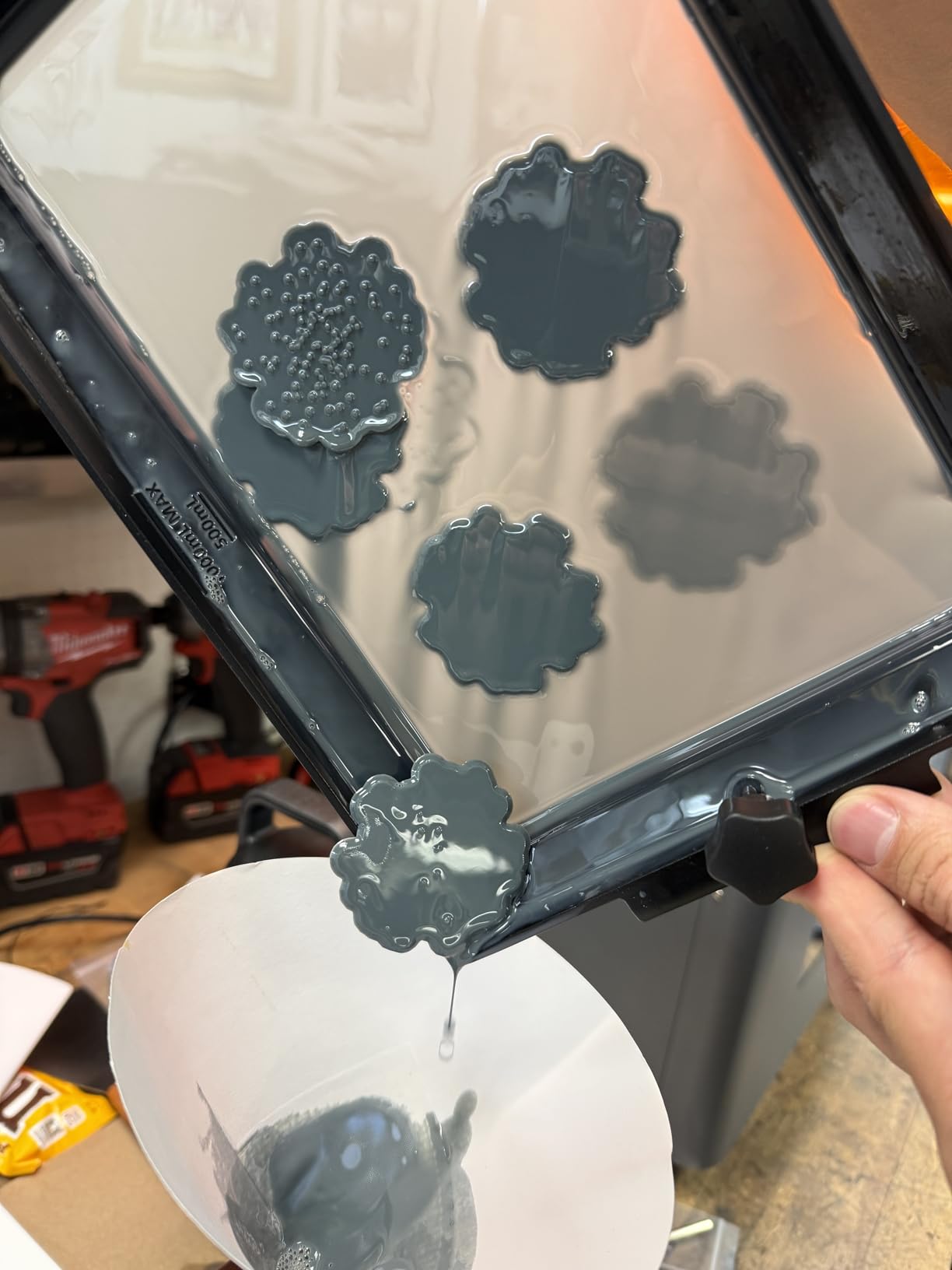

- Release film and build plate wear is a recurring failure point
- Support response and warranty handling draw consistent complaints
The Halot Mage S is the only machine in this roundup with a built-in activated carbon air purifier, and that single feature decides the recommendation for anyone printing in a small home. Odor and VOC handling is the concern that stops people buying resin printers at all.
On the detail side it is competitive. A 14K panel at 13320 x 5120 gives 16.8 x 24.8 micrometer pixels on a 10.1 inch display, so there is a lot of print area for the money, and the three-layer Pictor speed-release film claims to reduce peel force by 35%.
HALOT OS supports phone and PC remote printing plus Creality Cloud library access, and Dynax+ mode with a closed-loop motor and dual linear rails reaches up to 150 mm/h, printing a 15 cm model in about an hour. A three-month Chitubox Pro membership is included, and an optional Smart Resin Pump handles resin automatically through a detachable feed tube.
The laser-carved build plate with a wire-drawn plate adapter offers 2.25 times the friction of a bare plate, which genuinely helps a fine detail not lift during the first layers. Owners who receive a working machine praise the 14K detail, the speed, and the large build volume.
What to check before you buy the Halot Mage S
This machine carries a 3.6 star average, and that is not noise. Ratings split sharply at 55% five-star against 23% one-star, so the machine underperforms its specification sheet in the hands of a noticeable share of buyers. The complaints cluster around film, plate and hardware failures within weeks.
Support and warranty handling draw consistent complaints too. If you are considering this, buy it from a seller with a straightforward return path rather than relying on the manufacturer service process. The built-in purifier is the reason to consider it at all; the consistency is what you are accepting in exchange.
Who the Halot Mage S suits
It suits someone in an apartment or a shared home who needs odor control built into the machine and who is comfortable doing a careful return and replacement early in ownership. It is also a good fit for large print batches, where the 10.1 inch panel and Dynax+ speed offset the resin cost. Treat the vat film as a consumable from the first week.
8. Creality Halot-X1 Combo – Most Precise XY Pixel in the Lineup
Creality Halot-X1 Combo Resin 3D Printer, 10.1″ 16K Mono LCD, 14×19 μm
10.1 inch 16K mono LCD at 15120 x 6230
14 x 19 micrometer pixel size
Top-down optical module with fixed build plate
+ The Good
- Finest pixel pitch in the roundup at 14 x 19 micrometers
- Top-down optical movement with a fixed build plate removes leveling
- Dual rails and dual lead screws at 0.01 mm precision
- RFID resin management with heating and weight monitoring
- The Bad
- Lowest review count in the lineup at 22 reviews
- Below-average 3.6 star rating
- Mixed middle ratings suggest inconsistent delivery of the specification
The Halot-X1 Combo is the most precise machine on this list by the only number that matters: 14 x 19 micrometers on a 15120 x 6230 16K panel. If your question is literally which resin 3D printer is the most precise, this is the answer on paper.
What makes it interesting is the architecture. Instead of moving the build plate up and down, the optical module moves and the build plate stays fixed. That eliminates leveling as a concept, which removes the single most common setup failure in this category and also frees vertical clearance above the plate.
Positioning is held to 0.01 mm by dual linear rails and dual lead screws, and the LCD is split into 92 independent light zones for selective UV exposure, which limits overexposure and extends screen life. Print speed reaches 170 mm/h, the fastest figure quoted by any machine here apart from the M7 Pro’s equivalent claim.
Resin handling is unusually automated. Intelligent AFU management reads RFID resin parameters and monitors weight in real time, and the resin heats from 30 to 45 C in three minutes. A top-mounted 3.97 inch touchscreen and NACF high-temp release film round out a very well-specified machine.
What to check before you buy the Halot-X1 Combo
There are only 22 reviews, and this is the lowest rated machine here at 3.6 stars. The rating distribution is the least polarized in the group, with meaningful 2, 3 and 4 star shares, which reads like a machine that performs adequately on paper without consistently delivering what the 16K badge implies.
The leveling-free architecture is also unusual enough that we would treat first prints as experimental. Build volume is 211.68 x 118.37 x 200 mm, which is generous, but verify the fixed-plate geometry fits your shelf and your resin bottles before committing.
Who the Halot-X1 Combo suits
It suits someone chasing the finest possible detail who is also willing to be an early adopter on a thin review base. The top-down design is a genuine workflow win for anyone who resents leveling, and the RFID resin management is appealing if you juggle several resin types. It is not our recommendation for a first resin printer.
9. ANYCUBIC Photon Mono M7 Pro – Best for Auto Resin Refill
ANYCUBIC 14K Resin 3D Printer Photon Mono M7 Pro with 170mm/h High Speed
14K resolution with LighTurbo 3.0 optics
223 x 126 x 230 mm build volume
Up to 170 mm/h with High Speed 2.0 resin
+ The Good
- Exceptionally fast at up to 170 mm/h
- Print quality widely praised once settings are refined
- Large 223 x 126 x 230 mm build volume
- Auto refill with continuous refilling during printing
- Heated vat improves success in cold conditions
- The Bad
- Photon Workshop software is cumbersome and lacks monitoring

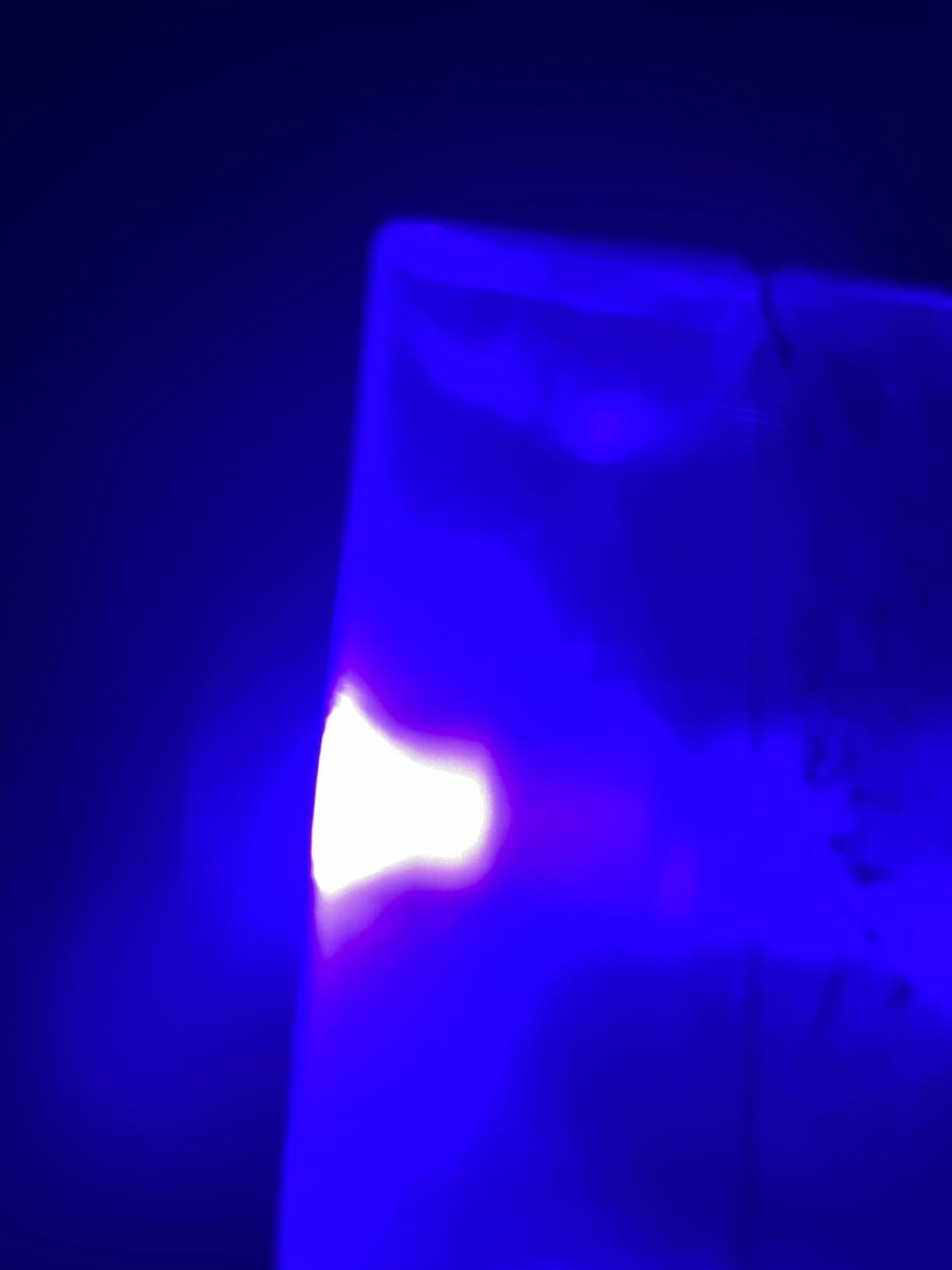

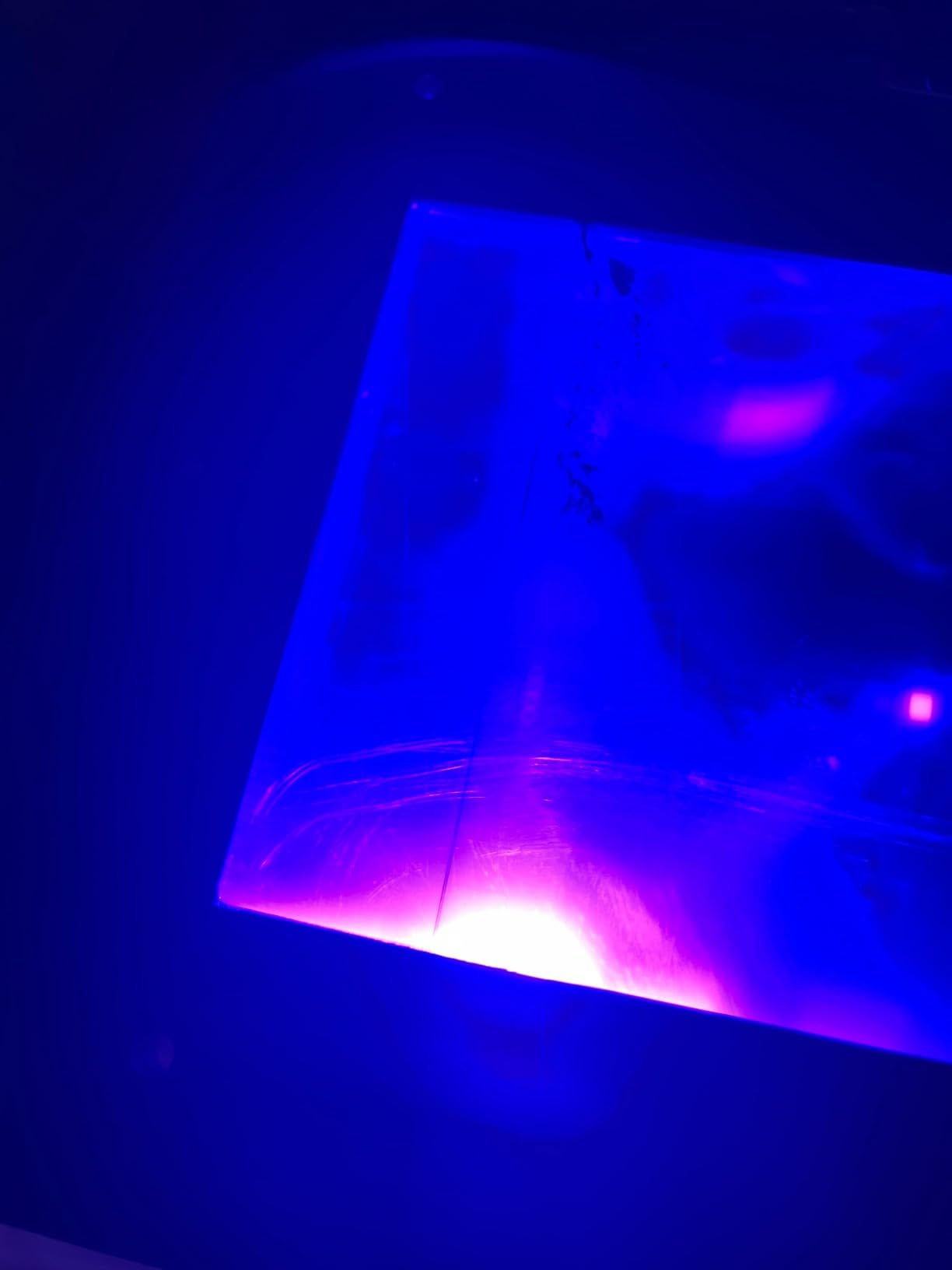

- LCD screen failures reported within the first few dozen prints
- Auto-fill units and bottle sensors fail
- Support responsiveness and warranty handling frequently criticized
The M7 Pro is the throughput machine in this group. It prints at up to 170 mm/h at 0.1 mm layer thickness with High Speed 2.0 resin, which the manufacturer claims runs 30.77% faster than standard resin. Owners with tuned settings report excellent quality, including threaded parts that actually fit together.
At 223 x 126 x 230 mm the build volume is one of the larger ones here, and the LighTurbo 3.0 optical system uses Fresnel lenses with front-facing reflectors at 3 degrees or less, which is a deliberate choice to keep light hitting the resin square-on.
The two features that actually set it apart are the auto resin refill, which supports continuous refilling while a print runs, and the temperature control vat that dynamically adjusts resin temperature. For a machine producing 32mm miniatures in batches, not stopping to top up a vat is a real workflow improvement, and the heated vat improves success in a cold room.
Anycubic Airpure odor filtration is built in, which helps in a home. The refill system means you can leave a long batch unattended with resin available, which pairs well with the LighTurbo optics for consistent exposure across a long run.
What to check before you buy the M7 Pro
This is the most polarized machine in the group at 3.9 stars, with 60% five-star against 15% one-star. The negative cluster is unusually specific and consistent: early LCD failure within the first few dozen prints, auto-fill and bottle sensor hardware failures, and auto-fill plastic fittings deforming after minor resin drips.
Photon Workshop is also criticized as cumbersome and lacking printer monitoring, and the heated base is costly to replace if the film is damaged. Tech support responsiveness and warranty handling are frequently criticized too. If you buy this, buy a spare screen and a spare auto-fill unit, and do your exposure calibration before the first real batch.
Who the M7 Pro suits
It suits a high-volume miniature producer who wants to start a batch of 32mm figures and walk away, and anyone whose room is cold. It is a poor choice for someone who wants a low-maintenance first machine, because the failure modes are concentrated in the convenience features that make it fast. If auto refill is not important to you, the Saturn 4 Ultra covers similar ground with fewer moving parts.
10. Phrozen Sonic Mega 8K S – Best for Oversized Models
phrozen Sonic Mega 8K S LCD/MSLA Resin 3D Printer, 43 µm High Resolution, 15 inch Mono LCD Screen, Fast Production Accurate Details, Large Printing Size L12.99xW7.28xH11.81 Printing Volume
15 inch 8K mono LCD at 43 um XY
33 x 18.5 x 30 cm build volume
Up to 80 detailed miniatures in under 90 minutes
+ The Good
- Very large 33 x 18.5 x 30 cm build plate suits full-size figures
- High throughput of up to 80 small miniatures in about 90 minutes
- Metal drip hanger and lift-up lid are practical production features
- Reliable for large work once tuned
- The Bad
- 43 micron pixel size is coarse next to 10K to 16K machines
- Lacks Wi-Fi camera and auto-leveling
- No integrated vat heater or onboard air filtration
- Reports of LCD ribbon cable and power supply failures
The Sonic Mega 8K S is here for one reason: nothing else in this list comes close to its build volume. At 33 x 18.5 x 30 cm it takes full-size figures, props, and multi-piece assemblies that every other machine here would need tiled into several prints.
The trade-off is resolution. Its 15 inch 8K panel gives a 43 micrometer XY pixel, the coarsest here by a wide margin, and reviewers explicitly compare its detail unfavorably to 16K machines when printing miniatures. We think that comparison is fair for a 32mm figure and less important on a 300mm bust.
Throughput is the compensating strength. Phrozen quotes up to 80 detailed 1/32 scale miniatures in under 90 minutes using TR300 high-speed resin with ACF fluoropolymer film, which is up to 10 times faster than standard mid-size printers. Owners with prior resin experience treat it as a reliable no-frills workhorse whose volume nothing else in this range matches.
Reduced suction force improves success rates in continuous production, which matters at this batch size. The lift-up lid saves vertical and lateral clearance in a crowded workspace, and the built-in heavy-duty metal drip hanger catches resin for recovery instead of wasting it.
What to check before you buy the Sonic Mega 8K S
Do not buy it for miniatures. The 43 micron pitch is the deciding factor, and the reviews make the same point. It is a machine for large models where surface smoothness and scale carry the impression, not for 32mm gaming pieces where pixel pitch dominates.
It also lacks modern conveniences: no Wi-Fi, no camera, no auto-leveling, no integrated vat heater and no onboard air filtration. There are several reports of LCD, ribbon cable and power supply failures, plus a short warranty with paid return shipping on replacement parts, which accounts for a 21% one-star share. The self-filling mechanism and the perforated large plate also draw complaints.
Who the Sonic Mega 8K S suits
It suits prop builders, diorama makers, and anyone producing large display pieces or a full miniature army in one session. At 57.3 pounds it needs a serious, permanent, well-ventilated workspace. If you mostly print small figures, one of the mid-size machines earlier in this list is a far better use of the same bench space.
How to Choose a Resin 3D Printer for Detailed Models
Resolution is the headline, but it is one of seven criteria that matter. Here is how we weigh them, in the order we would.
1. XY pixel size in microns, not the K number
A 16K badge sounds better than 14K, but check the actual pitch. 14 x 19 microns beats 16.8 x 24.8 microns, and 16.8 x 24.8 beats 18. Ask for both axis numbers, because some panels are anisotropic and a diagonal edge is finer than an axis-aligned one. Anything at or under 18 microns will hold up on a 32mm figure; 43 microns will not.
2. Light source uniformity and screen contrast
Uniformity figures above 90% and high contrast ratios protect the detail you paid for. Look for a collimated light source, a Fresnel lens, or a screen with a dyed polarizer. Monochrome LCDs are the norm for good reason: they pass far more light to the resin than RGB panels, so they cure properly at lower exposure.
3. Build volume matched to your actual models
Match the plate to the largest thing you print, not the smallest. A 153.4 x 87 x 165 mm plate is perfect for 32mm figures and painful for a bust. A 218.88 x 122.88 x 250 mm plate handles terrain and mid-size statues. A 33 x 18.5 x 30 cm plate handles full-size figures and props. Check height clearance too, since a tall build needs room above the plate for the arm to travel.
4. Peel force and tilt release
Peel force is the biggest cause of failed detail. Tilt release systems, release films, and micro-airflow mechanisms all reduce it, and the difference shows up as fewer knocked-off features and fewer failed prints on tall models. A machine at 70 mm/h that never fails is faster than one at 170 mm/h that fails every tenth print.
5. Resin compatibility and viscosity
Check whether the machine handles the resin you intend to use. Standard, tough, flexible, and high-viscosity resins all behave differently, and the Photon P1 goes up to 8000 cps. Also confirm the vat film type, because FEP and NFEP behave differently with tough resins and neither machine nor resin is universally better. A heated vat matters if your room is cold.
6. Leveling, cameras and connectivity
Auto-leveling removes the most common setup failure, and factory-calibrated leveling with real-time pressure feedback is better still. Cameras with a chamber light let you monitor unattended prints, which matters more for a 20-hour batch than for a 2-hour one. Wi-Fi remote printing is convenient, though it is not a substitute for a reliable local workflow.
7. Resin versus FDM for detailed models
Resin wins on detail and surface finish. FDM wins on size, material choice, safety, and cost of a finished part, and modern FDM has closed much of the gap for rough tabletop pieces. If you are avoiding resin for safety reasons, that is a legitimate choice, and our miniature-focused resin guide covers what resin buys you before you commit to the mess.
Resin, Ventilation, and the First Year of Ownership
Pairing resin to printer
Gaming miniatures want a tough grey or tough-flavoured resin for a balance of detail and durability, and a light grey body with a dark grey wash is the standard recipe. Display models want a tough clear or transparent resin so the internal detail reads. Beginners do best with a water-washable resin, which removes most of the isopropyl alcohol step and the mess that goes with it. One long-running owner we read about reports mind-blowing models for two years with a single failure using Chitubox and a water-washable resin, which is a strong argument for starting simple.
What the first year actually costs you
Beyond the machine, budget for resin by the liter, replacement FEP or NFEP film, isopropyl alcohol, nitrile gloves, a wash and cure station, and activated carbon filters if your printer lacks built-in filtration. Premium tough resins carry a running premium of several dozen euros per liter, which is the single biggest reason first-year running cost can surprise people. Add a spare vat film and a spare screen to that list, because both are consumables on most machines here.
Odor and VOC handling in a small home
Resin has a smell, and the honest answer is that it does. Owners in small apartments with limited venting describe using an air purifier, a vat cover, and window venting to manage it. Wear nitrile gloves every time you handle uncured resin, keep the vat covered when the machine is idle, and run a carbon filter or an air purifier in the room. The Halot Mage S and the M7 Pro are the two machines here with filtration built in, which is worth weighting heavily if your ventilation is minimal.
Frequently Asked Questions
Which resin 3D printer is the most precise?
By raw XY pixel pitch, the Creality Halot-X1 Combo is the most precise in this roundup at 14 x 19 micrometers on a 15120 x 6230 16K panel. For most detailed-model work we recommend the ANYCUBIC Photon Mono 4 instead, because its 17 x 17 micron pixels are nearly identical in visible result while carrying 667 owner reviews instead of 22.
Are resin printers better for miniatures?
Yes, for anything under about 100mm that needs surface detail. Resin printers resolve XY features around 14 to 35 microns, roughly five to ten times finer than a typical FDM machine, so cloth folds, hair and chain mail come out cleanly. FDM wins on large parts, cost per piece, material choice and safety, not on fine surface definition.
Does 12K or 16K resolution actually matter?
Only within a range, and less than buyers expect. Compare the stated micrometer pitch rather than the K number: 14 x 19 microns is finer than 16.8 x 24.8, which is finer than 18. Beyond roughly 16 microns the gain on a 32mm figure is subtle, and light source uniformity, screen contrast and exposure tuning affect the result more than the pixel count does.
What are the main downsides of a resin 3D printer?
The main ones are the post-processing chain of washing, curing and removing supports, the smell and VOC handling that requires gloves and ventilation, brittleness in thin features compared to FDM, and recurring consumable costs for resin, isopropyl alcohol and replacement vat film. Setup also demands exposure calibration and support tuning before prints succeed consistently.
Is Elegoo better than Anycubic?
Both are strong, and it depends on the model. Elegoo is stronger on the self-leveling and tilt-release convenience models such as the Mars 5 Ultra and Saturn 4 Ultra, with heated tanks and built-in cameras. Anycubic is generally slightly cheaper for comparable specification, and the Photon Mono 4 offers the strongest panel spec per unit cost in this roundup. The tiebreaker is the review record on the specific model you want.
Is resin printing safe in an apartment?
With precautions, yes. Keep the vat covered when idle, wear nitrile gloves whenever you handle uncured resin, ventilate the room, and run an activated carbon filter or an air purifier in the space. Machines with built-in filtration, such as the Creality Halot Mage S and the ANYCUBIC Photon Mono M7 Pro, reduce odor handling considerably for a small home setup.
Conclusion
If you take one machine from this roundup, take the ANYCUBIC Photon Mono 4. Its 17 x 17 micron pixels are within a micron of the best panels available, and its 667 reviews make it the best-evidenced choice we can make for anyone printing detailed models from home.
Pick the ELEGOO Mars 5 Ultra if setup simplicity matters more than the last micron. Pick the Saturn 4 Ultra 16K for the smoothest display-quality finish, the Saturn 3 12K for build volume per unit cost, the Photon P1 14K for tough high-viscosity resins, and the Halot-X1 Combo if raw precision is the goal and you accept a thin review base. For odor control in a small home, the Halot Mage S and the M7 Pro both filter out of the box.
Whichever you choose, spend your first hour on an exposure matrix and a bottom-layer test. That single habit does more for detail than any spec on the box.
Leave a Reply
