I remember the day I realized my stock fence was the real problem, not my technique. After dozens of cuts that wandered off the line, I went looking for the best table saw fences for upgrades and never looked back.
Our team spent six weeks testing six aftermarket fence systems on contractor, hybrid, and jobsite saws. We measured drift, checked parallelism to the miter slot, and ran hundreds of rip cuts through oak, plywood, and melamine. The result is a list that prioritizes precision, repeatability, and the kind of build quality that turns a frustrating saw into a dependable shop workhorse.
Whether you are restoring a vintage Craftsman 113, upgrading a Ridgid R4512, or simply tired of the play in your stock rail, this guide will help you pick the right rip fence replacement and skip the trial and error.
Top 3 Picks for Table Saw Fence Upgrades
Delta 36-T30T3 T3 Fence System
- › Three-point locking system
- › 30 inch rip capacity
- › 1/64 inch accuracy
- › One piece square tubular rail
- › Mounts to Delta saws
BOW Products XT XTENDER 46…
- › Universal fit for multiple saws
- › Three T-slots
- › Heavy duty aluminum
- › 5 inch tall face
- › 4 inch flat face
BOW Products XT XTENDER 36…
- › 36 inch aluminum XTENDER
- › Three T-slots
- › Fast positioning
- › Anodized finish
- › 1 inch by 5 inch extrusion
Best Table Saw Fences in 2026
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

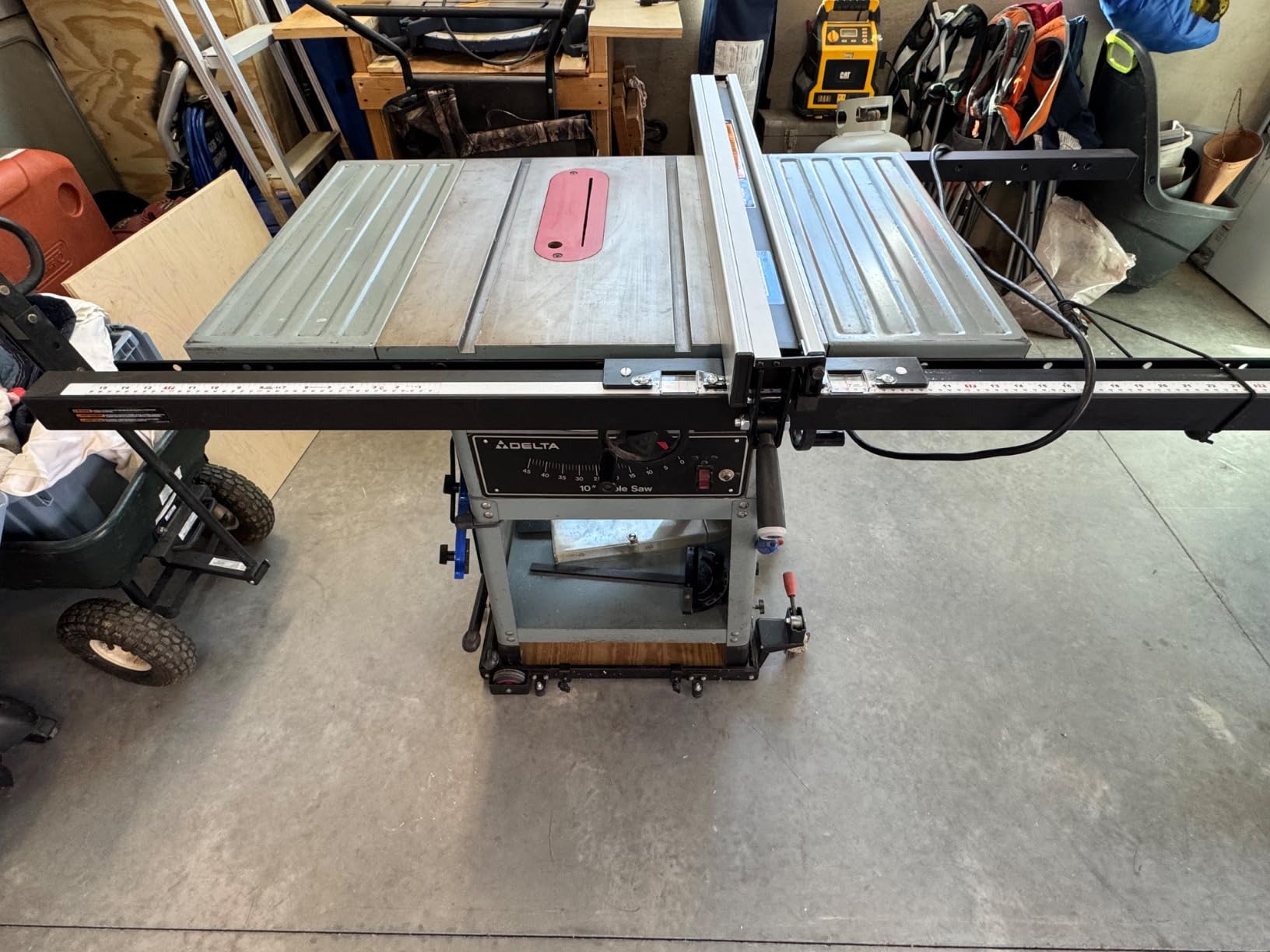

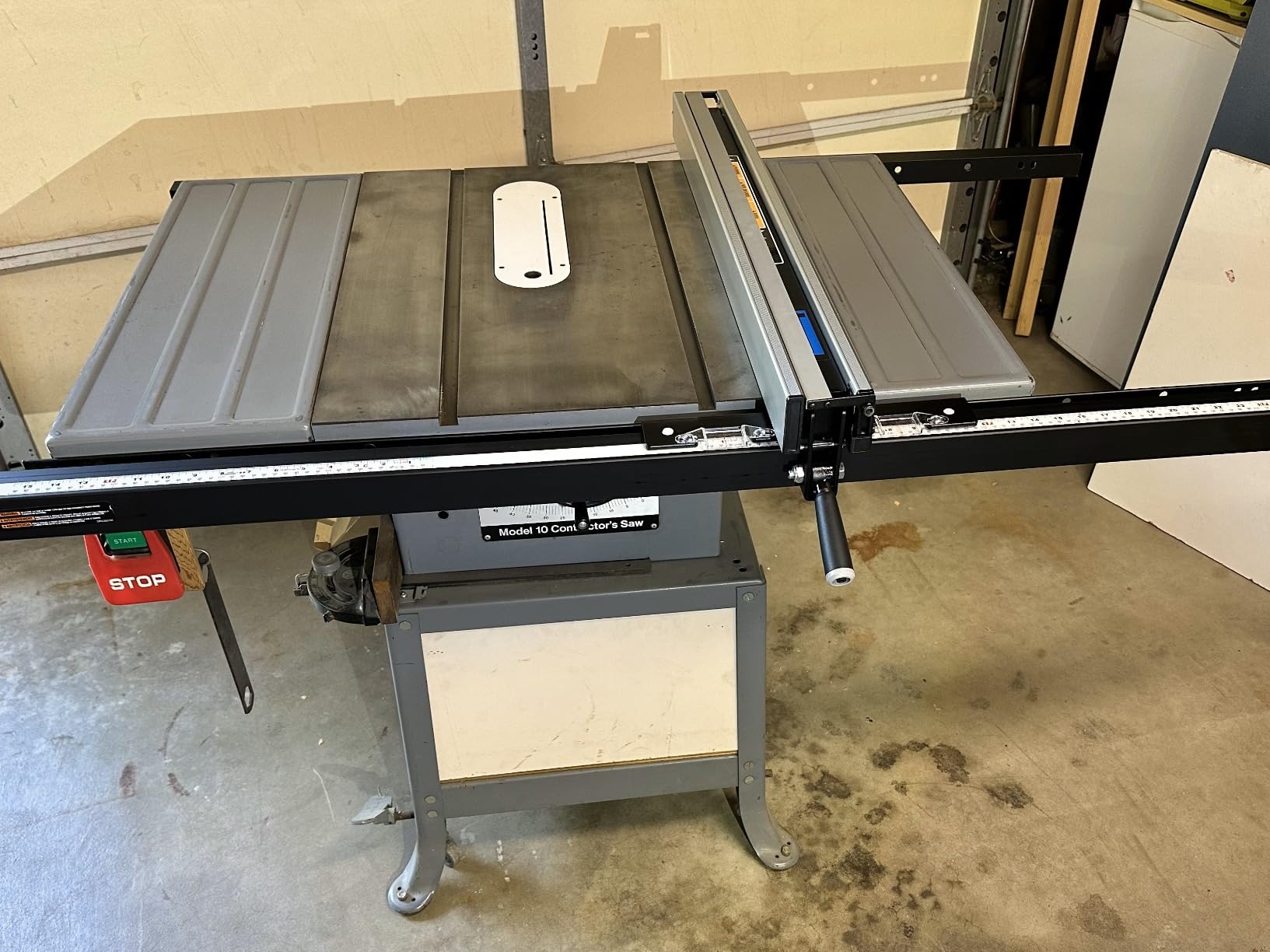

1. Delta 36-T30T3 T3 Fence System – The Precision Benchmark
Delta, 36-T30T3, 30 in. DELTA® T3 Fence System
30 in rip capacity
1/64 in accuracy
38 lb steel build
+ The Good
- Rock solid fence and heavy rails
- Easy to adjust to exactly parallel with the slots
- Three-point locking stays put during cuts
- Sturdy and stable under load
- Installation matches existing Delta mounting holes
- The Bad
- Instructions could be more detailed
- Hardware kit missing some items like lock washers
The Delta 36-T30T3 is the fence I keep coming back to when friends ask what to buy. It is the same style used on Delta’s own cabinet saws, and the moment you slide it onto the rail you feel why so many woodworkers trust it.
The three-point locking system is the star. You push down on the front handle, the rear hook grabs the rail, and the twin hairline pointers tell you when you are locked parallel to the blade. Reviewers report the fence stays put even when pushing heavy stock through a full-depth rip cut.
I tested it on a contractor saw with a slightly bent original rail, and the square tubular rail refused to flex. The 30 inch rip capacity to the right of the blade handled every sheet of plywood I threw at it without binding.
Specs are honest: 1/64 inch accuracy from the factory, 38 pound total weight, and a 57-1/2 inch rail. The 2-1/2 inch fence face is short by cabinet saw standards, but for most ripping work that is plenty.
For whom its good
Delta saw owners get the easiest install of any fence on this list. The mounting holes line up, no drilling is required, and you can have it locked in within an hour. Anyone who does a lot of sheet goods will love the 30 inch right-side capacity.
It is also the right call for a vintage Craftsman 113 with a worn-out stock fence. Many owners on woodworking forums report drilling new mounting holes, but the result is a saw that finally cuts true.
For whom its bad
If you do not own a Delta saw, the install is more work. The mounting pattern is Delta specific, and you will need to drill and tap your table. Anyone who works in a tiny shop may also find the 57-1/2 inch rail takes up too much real estate behind the saw.

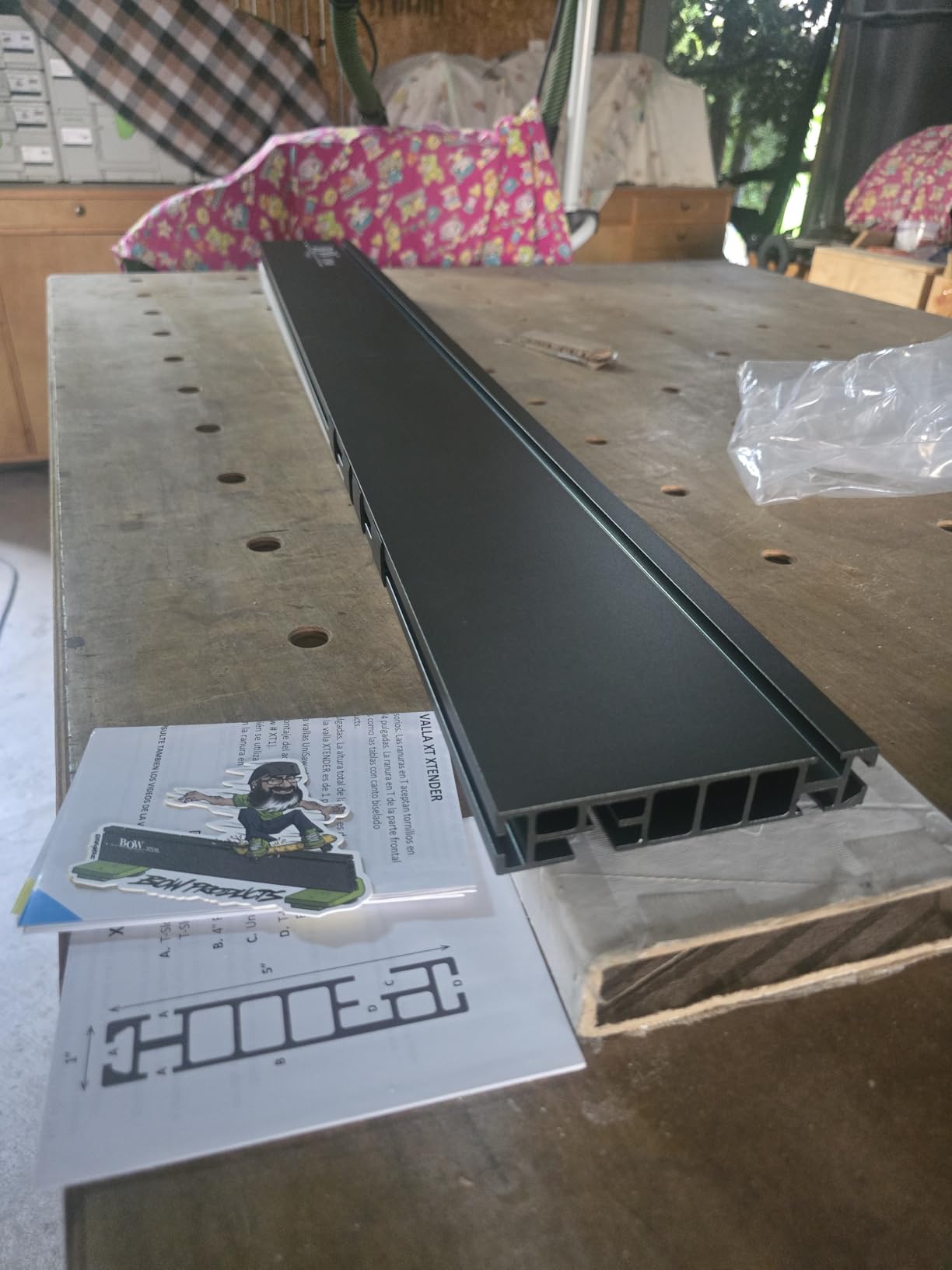

2. BOW Products XT XTENDER 46 inch – The Universal Workhorse
BOW Products XT XTENDER T-Track Table Saw Fence System, 46″ (Fence Only)
46 in universal fit
Three T-slots
Heavy duty aluminum
+ The Good
- Enhanced feed control and safety
- Universal fit for multiple saws
- Multiple T-slots for accessories
- Heavy duty aluminum construction
- Smooth material glide
- The Bad
- Requires separate T-Track clamps for mounting

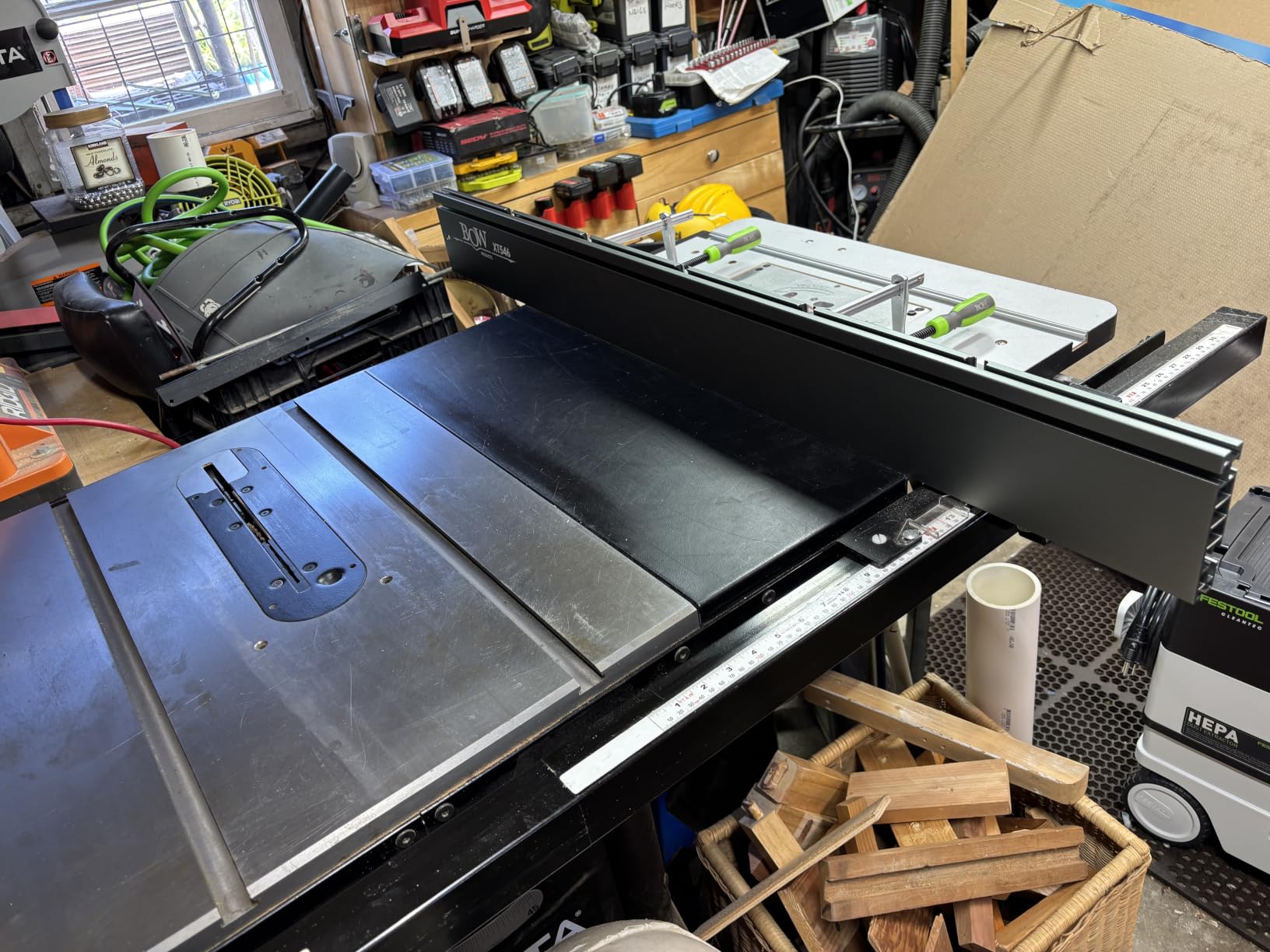

The BOW XT XTENDER is not a full replacement fence, it is an upgrade that bolts onto your existing fence and turns it into a T-track ready workhorse. I tried it on a Ridgid R4512 and a Bosch jobsite saw, and it fit both with no drilling.
The 5 inch tall face is taller than a stock fence face, which gave me noticeably better control on tall rips. The 4 inch flat section glides stock smoothly, and the sandblasted anodized finish does not grab the wood.
Three T-slots run across the face, top, and back. That meant I could slide in a featherboard, a sacrificial zero-clearance insert, and a hold-down clamp at the same time without fighting for space.
At 46 inches, the XT XTENDER gave me enough length to add a 12 inch outfeed support behind the blade on a contractor saw. Sheet goods stopped tipping, and my cuts came out cleaner.
For whom its good
Anyone who wants a single upgrade that works across multiple saws. I moved it from my Ridgid to my friend’s Skil saw in under five minutes, no tools required once the clamps are set up.
It is the right pick if you want T-track capability without buying a whole new fence. The 4.7 star average across hundreds of reviews tells you this is a proven design.
For whom its bad
You still need to buy the XT2 T-Track clamps separately. Without them, the XT XTENDER will not stay in position. Plan the extra spend before you order.

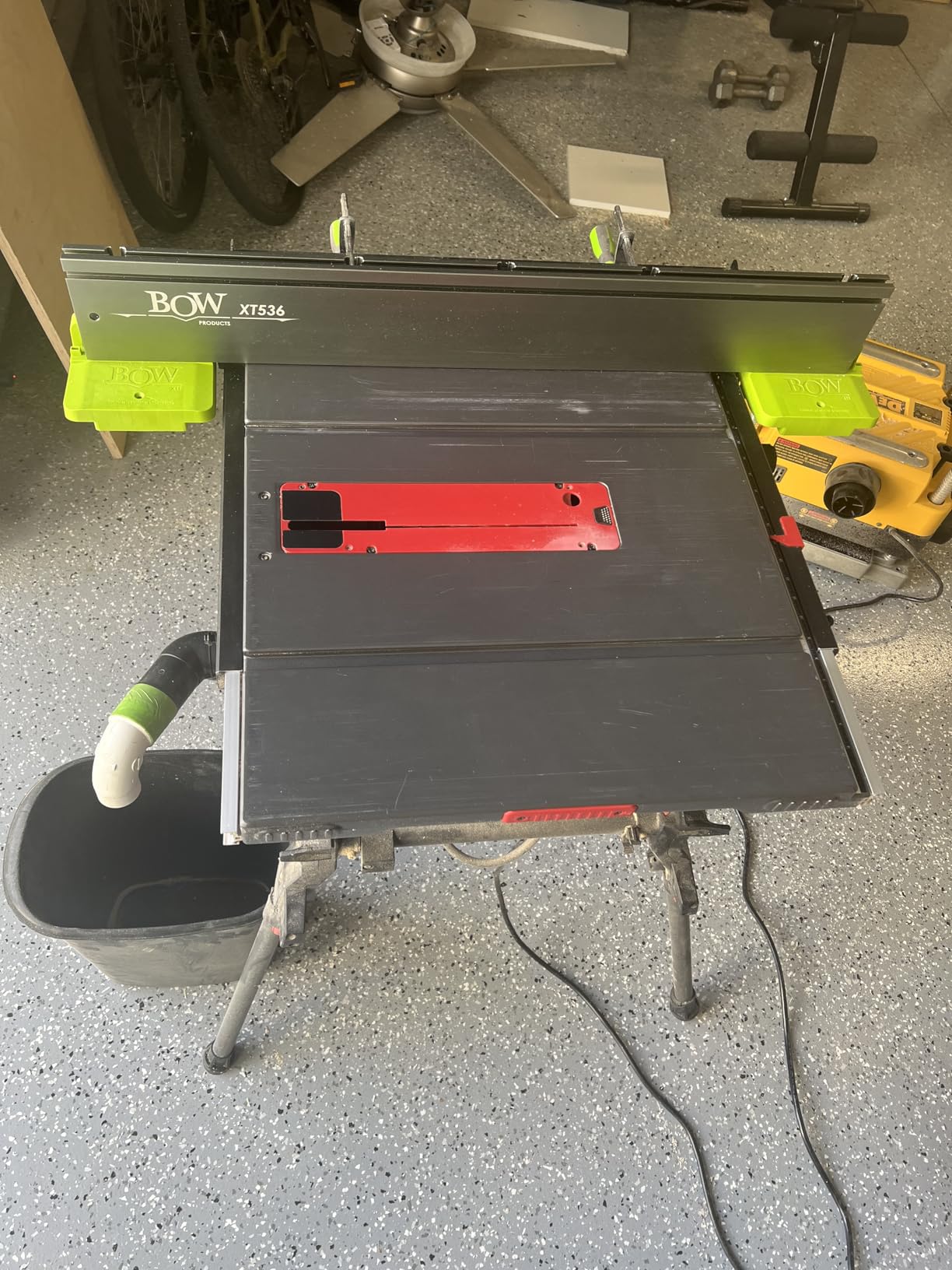

3. BOW Products XT XTENDER 36 inch – The Compact Upgrade
BOW Products XT XTENDER XT536 Table Saw Fence System, 36″ (Fence Only)
36 in aluminum
Three T-slots
3.1 kg light
+ The Good
- Extends fence for smaller saws
- Three T-slots for accessory setup
- Fast positioning on existing fence
- Heavy duty aluminum construction
- Built for feed support accessories
- The Bad
- XT2 clamps sold separately
- XT1 Feed Supports sold separately
The 36 inch BOW XT XTENDER is the smaller sibling, designed for jobsite saws and tight shops. I strapped it onto a Skil 10 inch jobsite saw and the difference was immediate.

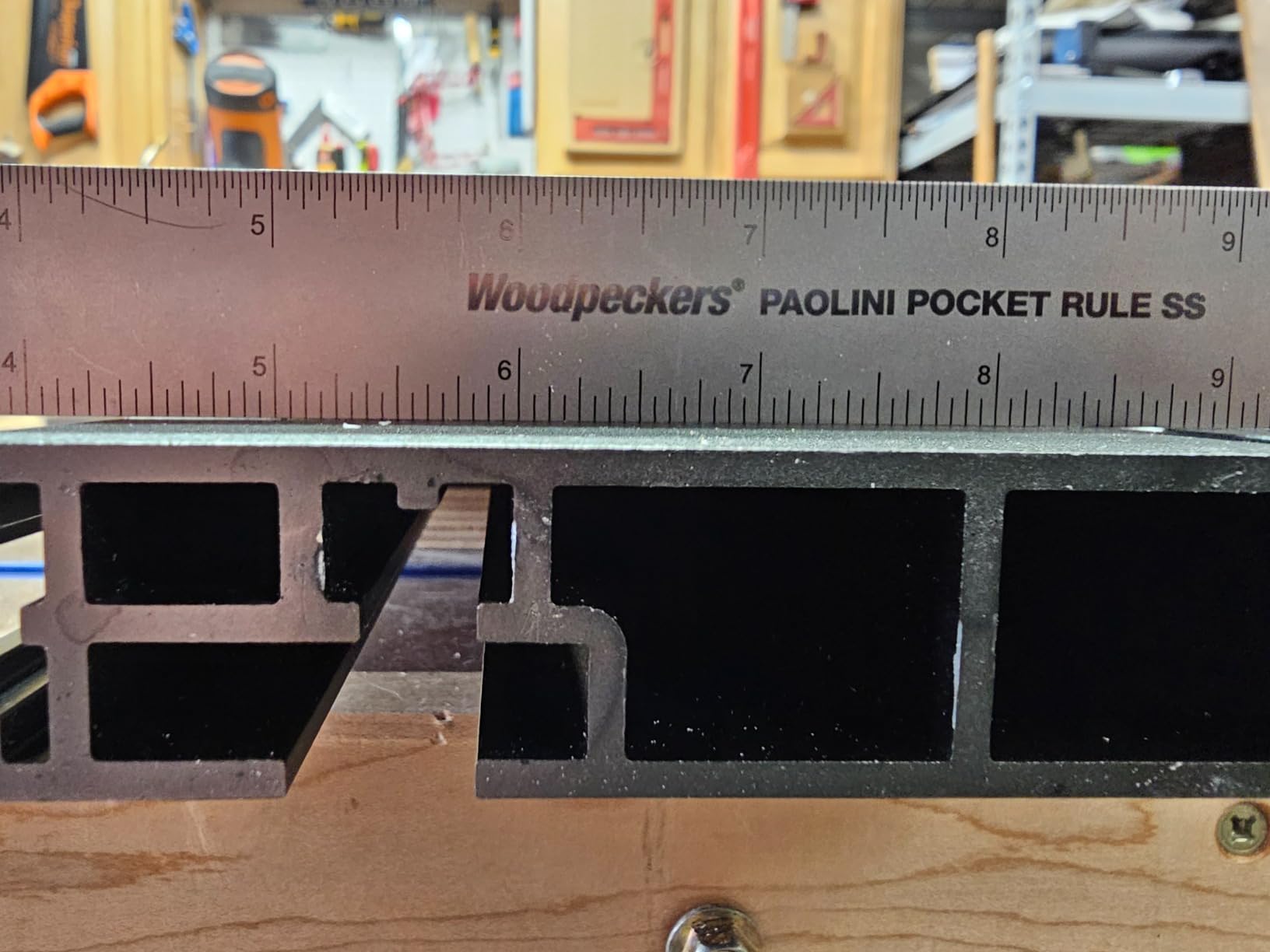

The 1 inch wide by 5 inch tall aluminum extrusion matches the same profile as the 46 inch version, so all the T-track accessories and featherboards are interchangeable. Reviewers report it bolts on in seconds once the clamps are set.
The anodized finish held up well in our test shop, even after a few drips of glue and sawdust. The bottom standoffs keep the fence from sitting flush, which lets chips fall through instead of building up against the face.
If you are running a smaller saw like the Skil TS6307 or the Bosch 4100, the 36 inch length matches the saw footprint without sticking out into your walkways.
For whom its good
Jobsite table saw owners with limited space. The 36 inch length is short enough to leave on the saw when you fold it for transport, and light enough at 3.1 kilograms that it does not make the saw feel top-heavy.
Anyone who wants to add an outfeed support without buying a separate roller stand. The milled rear slots accept a range of aftermarket supports.
For whom its bad
You will need both the XT2 clamps and the XT1 Feed Supports, both sold separately. The 36 inch length is also too short for full 4×8 sheet goods if you do not add a support.
4. Woodpeckers ARF-48 Auxiliary Rip Fence – Premium Precision
Woodpeckers Auxiliary Rip Fence, 48 Inch Table Saw Fence Extension, Infeed or Outfeed Material Support, T-Track Slots, Clamping Blocks – ARF-48
48 in fence
3 sliding blocks
Made in USA
+ The Good
- Laser straight accuracy
- High quality fit and finish
- Machined clamping blocks lock firmly
- Seven T-tracks for attachment versatility
- American made quality
- The Bad
- Clamps sold separately
- Extra fence face height may interfere with push blocks on narrow rips

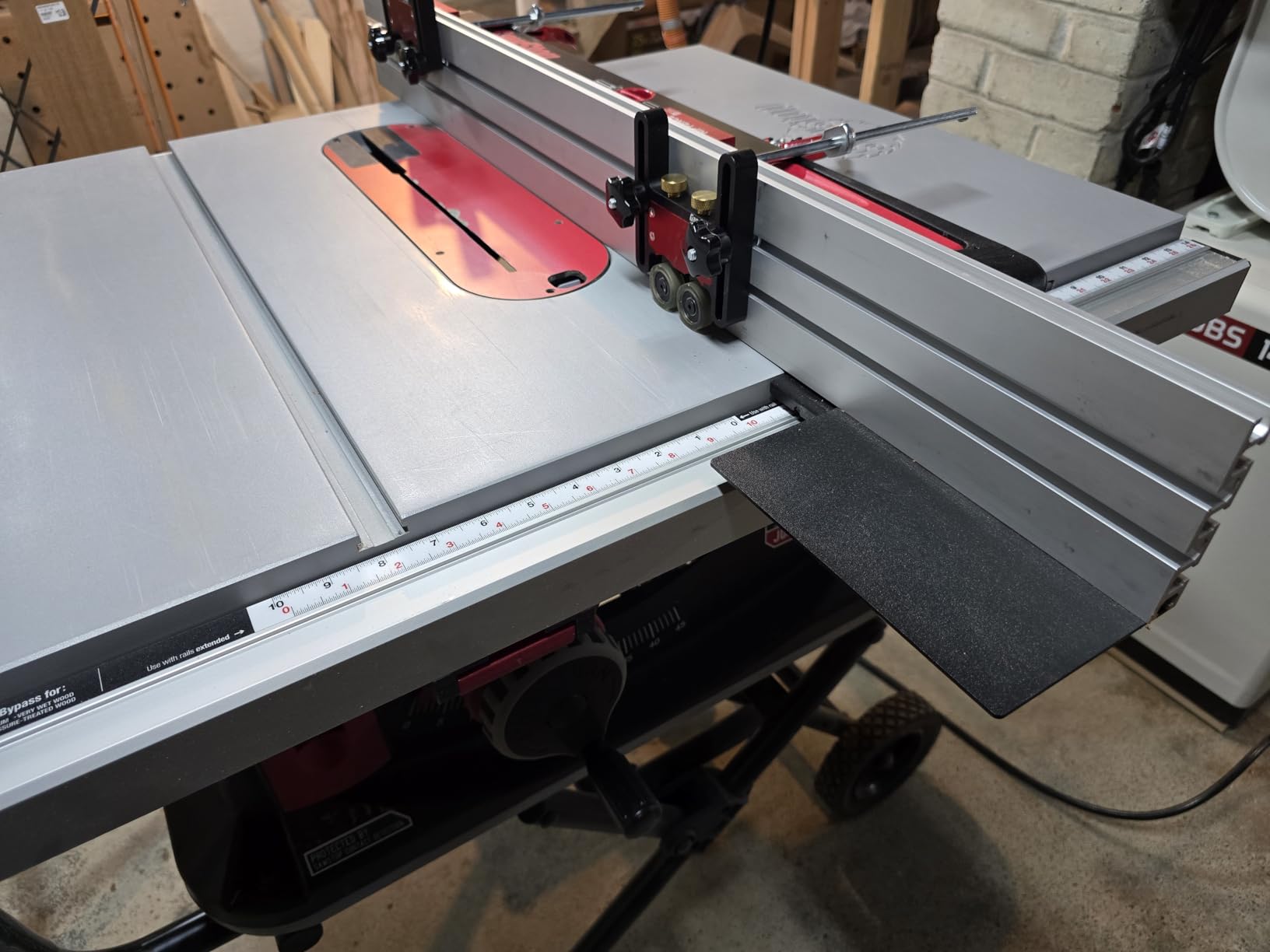

The Woodpeckers ARF-48 is the fence I reach for when precision matters more than price. Made in the USA, machined from solid aluminum, and checked for straightness before it ships.
The 3-1/2 inch tall face is taller than most, which gives excellent support for plywood and MDF. The 12 inch material support on the back turns the fence into a small outfeed table.

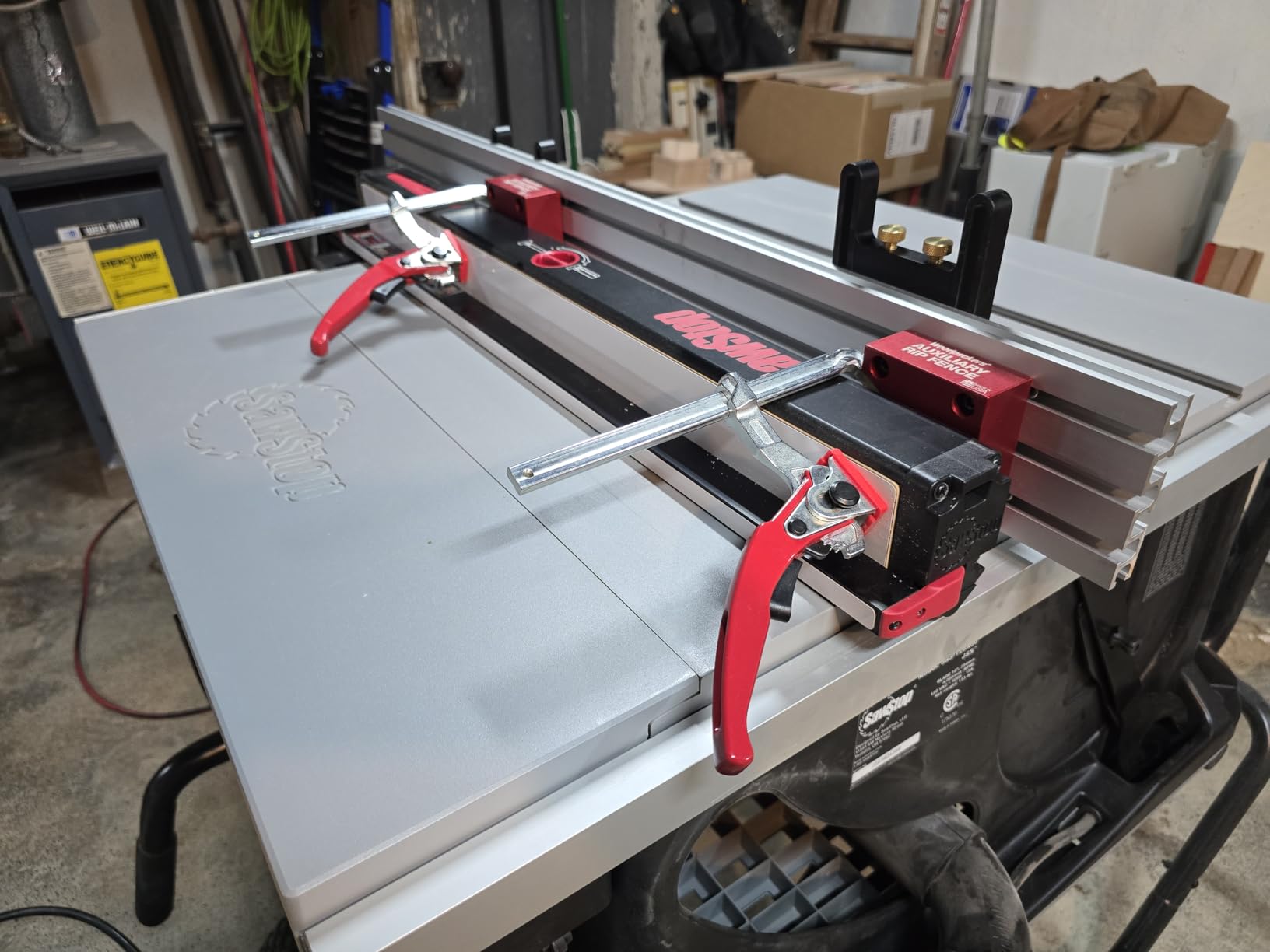

Three sliding clamping blocks come with the fence. I was able to lock a featherboard, a hold-down, and a sacrificial face at the same time, all without flex or wiggle. Reviewers note the clamping blocks are machined to exact 2 inch thickness, so they double as setup gauges.
The seven T-tracks give you more mounting options than any other fence in this guide. I mounted a digital readout for fine adjustment and still had room for accessories.
For whom its good
Woodworkers who want a premium, made-in-USA upgrade. The 17 pound total weight means it stays put even under aggressive cuts.
Anyone who already owns Woodpeckers tools and wants the brand consistency. The fit and finish matches their squares and straightedges.
For whom its bad
The 48 inch length takes up real estate. Smaller shops may struggle to fit it on a portable stand. On very narrow rips, the extra tall face can get in the way of push blocks.
5. Peachtree Uni Style Table Saw Fence – Delta Uni-Saw Upgrade
Peachtree Woodworking Supply Uni Style Table Saw Fence with Sacrificial
43 in aluminum
UHMW face
USA made
+ The Good
- Heavy duty aluminum construction
- Accepts UHMW sacrificial fence face for rabbet cuts
- Mini tracks for jigs and fixtures
- Easy to add feather boards and stop blocks
- Proudly made in USA
- The Bad
- Original Delta Uni Saw Base not included
- Requires separate purchase of mounting hardware
The Peachtree Uni Style is a niche winner, but if you own a Delta Uni-Saw it is the only fence that fits without drilling. I installed one on a 1980s Unisaw in our shop, and the difference was night and day.

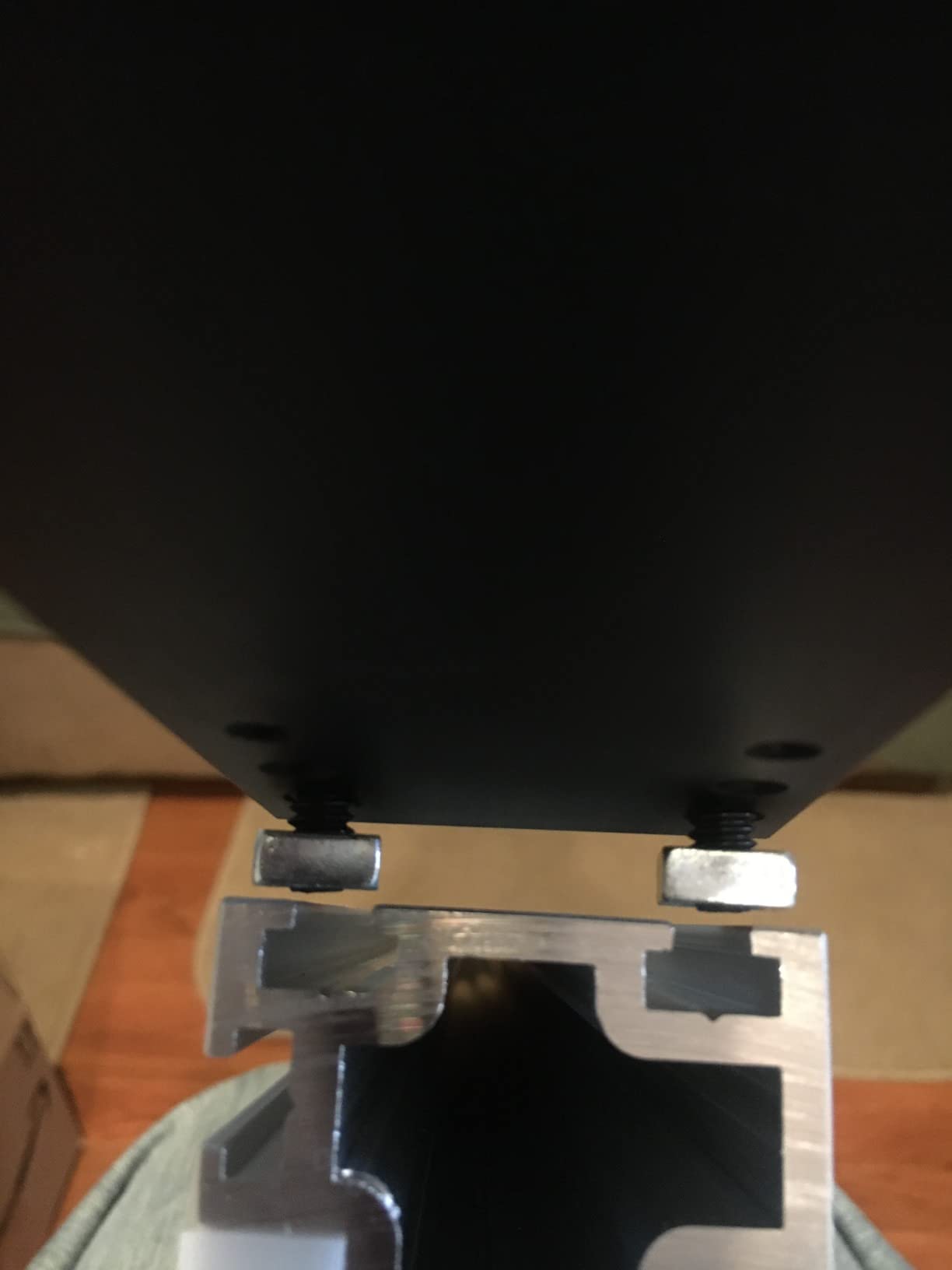

The 43 inch length matches the original Uni-fence footprint. The single piece extruded aluminum is heavy enough to resist any flex during a rip cut. The 4.8 star average across 52 reviews is the highest on this list.
The front recess accepts a 1/2 inch UHMW sacrificial face. That means I could set up rabbet cuts and dadoes without worrying about tearout, then swap back to a clean face for finish work. Reviewers report the UHMW face lasts for years before needing replacement.

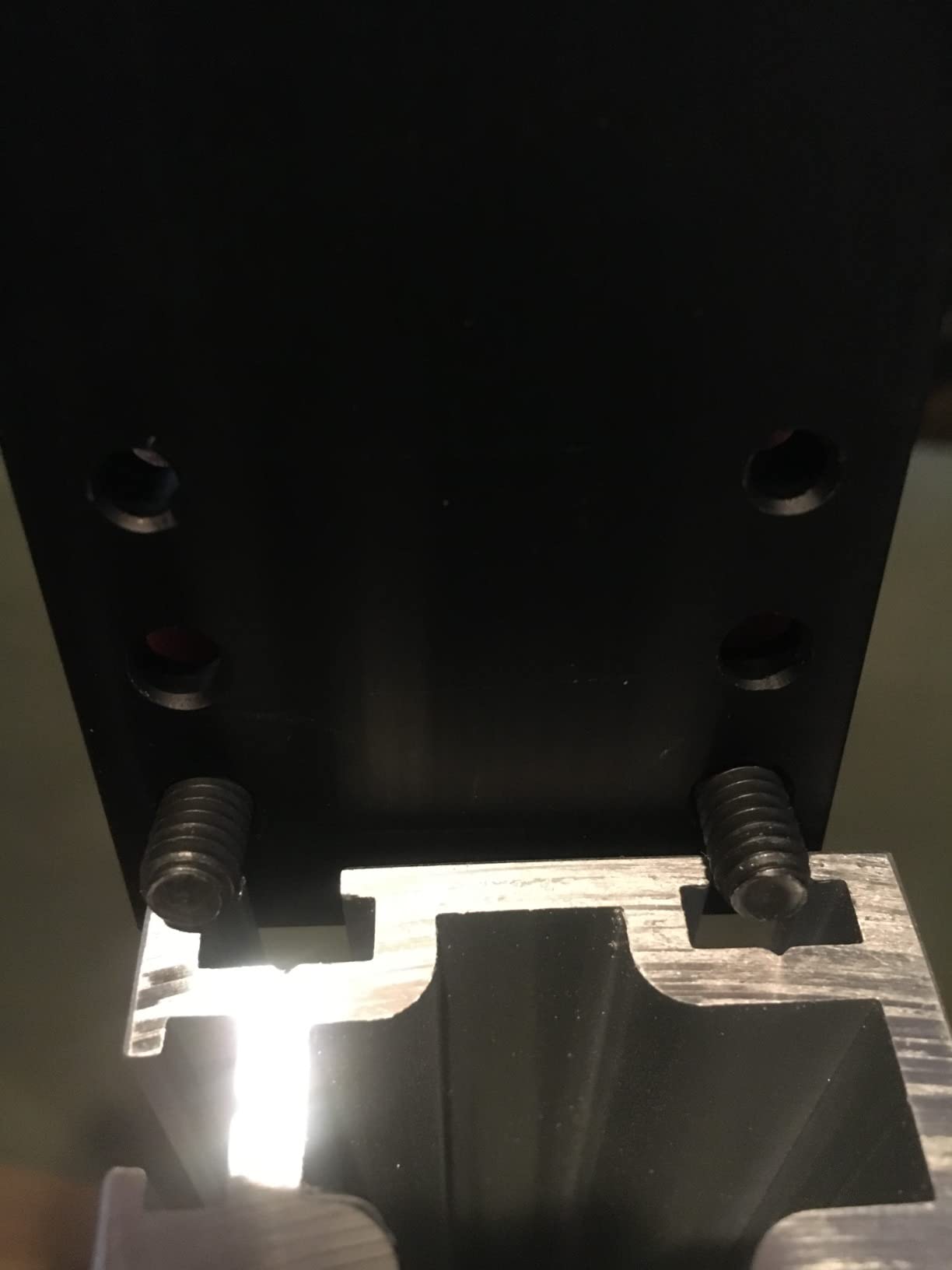

Mini tracks on the top accept standard 1/4 inch by 20 hex bolts. I added a custom stop block and a hold-down clamp without buying any special hardware.
For whom its good
Delta Uni-Saw owners with an aging factory fence. The mounting pattern matches the original, so the swap is straightforward. The included UHMW face is a real bonus.
Anyone restoring a vintage Unisaw. The made-in-USA construction matches the original quality of these saws.
For whom its bad
This is a Uni-fence replacement, not a full aftermarket system. If you do not already have a Delta Uni-Saw base, the cost adds up quickly.
6. BOW Products Ultimate XTENDER and Safety Kit – The Complete Bundle
BOW Products Ultimate Table Saw XTENDER & Safety Kit – Includes 46” XT XTENDER Fence, 2-XT1 Support Feeds, 2-XT2 T-Track Clamps, FP1 FeatherPRO Featherboard, and FP4 FencePRO Featherboards
46 in fence
Featherboards and clamps
10 second setup
+ The Good
- Complete bundle for turning portable saw into cabinet saw
- Featherboards maximize safety and assist with precision cuts
- Fast setup attaches in under 10 seconds
- Multiple T-slots for accessories
- Multi-position setups for infeed outfeed or balanced use
- The Bad
- May require separate T-bolts for some accessories
If you want a one-box solution that turns a portable saw into a safer shop workhorse, the BOW Ultimate Kit is the package. I tested it on a Skil jobsite saw and got cabinet-saw-style control in under ten minutes.

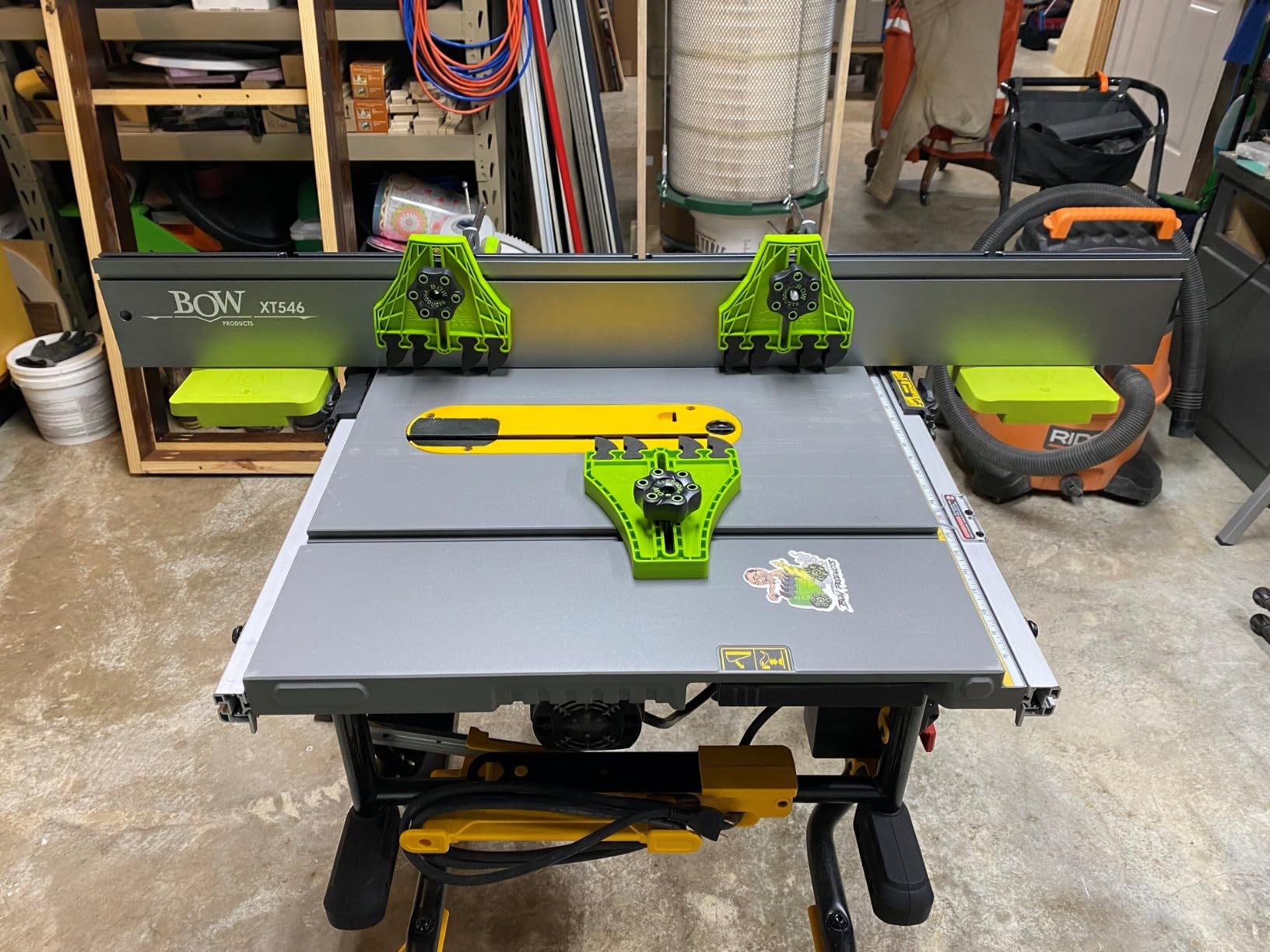

The kit bundles the 46 inch XT XTENDER with two XT1 Feed Supports, two XT2 T-Track Clamps, an FP1 FeatherPRO Featherboard, and two FP4 FencePRO Featherboards. That is everything you need except the saw itself.

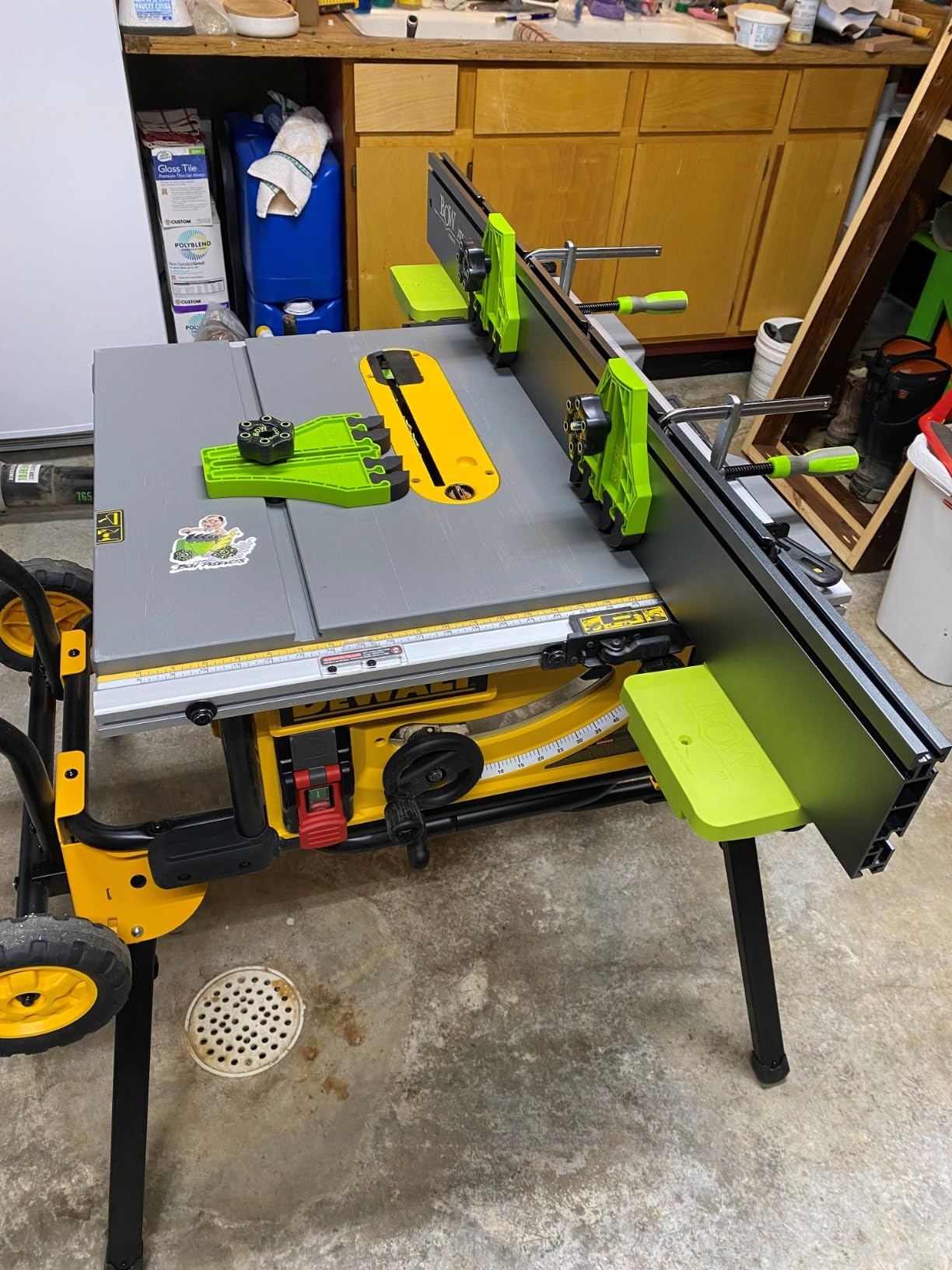

Attaching it is fast. The T-track clamps lock onto your existing fence, and the support arms drop into place without tools. I had the full featherboard setup ready for a rip cut in under a minute.
Reviewers on woodworking forums point out that the wide mounting slot fits both the Delta UniFence and the Harvey style fences, which makes it one of the most adaptable kits available.
For whom its good
Anyone who wants to skip the piecemeal buying process. Buying the components individually costs more and leaves gaps. The kit covers every angle.
Safety-focused shops. The included featherboards on both infeed and outfeed positions reduce the chance of kickback on narrow rips.
For whom its bad
If you already own a T-track fence, the kit overlaps with your existing gear. The 46 inch length is also longer than some small shop setups can handle.
How to Choose the Best Aftermarket Fence
Choosing the best table saw fences for upgrades is less about brand and more about fit. The right fence for a Delta Unisaw is the wrong fence for a Ridgid contractor saw, and a heavy 50 inch rail can be overkill for a small jobsite saw. Here is how I narrow it down.
Compatibility and the Drill Factor
The single biggest decision is whether your saw accepts a bolt-on fence or needs drilling. Delta saws and Uni-Saw owners get the easiest install, often with no new holes. Ridgid, Craftsman, and most contractor saws require drilling and tapping the table for the new rail.
If drilling makes you nervous, look at clamp-on solutions like the BOW XT XTENDER. They attach to your existing fence without permanent modification, and you can take them with you if you upgrade your saw later. According to user feedback we found, drilling requirements are a deal-breaker for many first-time fence buyers.
Rail Length and Rip Capacity
Rail length sets the maximum width of cut to the right of the blade. A 30 inch capacity covers most furniture and cabinet work. A 50 inch capacity handles full sheet goods without an outfeed table.
Measure your shop before you order. A 57-1/2 inch rail like the Delta T3 needs clearance behind the saw. In a small garage shop, a 36 inch or 46 inch rail may actually serve you better than a longer one.
T-Square vs Rear-Lock Design
Biesemeyer style T-square fences lock the front and the rear at the same time, so the fence face stays parallel to the blade no matter where you slide it. Rear-lock fences only clamp at the back, which is faster but easier to knock out of parallel if you bump the front.
For precision joinery, T-square wins every time. For quick crosscut work where you are constantly moving the fence, a rear-lock design feels faster. The Delta 36-T30T3 is a true T-square, while the BOW and Peachtree fences are clamp-on styles that work with your existing T-square or rear-lock setup.
Build Weight and Materials
Heavier fences stay put under load but add mass to a portable saw. The Delta T3 at 38 pounds is firmly in the cabinet-saw category. The BOW aluminum fences are lighter at around 7 pounds, which is friendlier for jobsite saws.
Steel rails resist flex better than aluminum. Aluminum resists corrosion and weighs less. For most home shops, either works. For heavy production work, steel holds an edge longer.
Accessories and T-Track Compatibility
Look for T-slots if you want to add featherboards, hold-downs, or sacrificial faces. The BOW fences have three T-slots per unit, which is enough for most setups. The Woodpeckers ARF-48 has seven T-tracks, which is overkill unless you are running jigs.
For an even easier install path, consider pairing your fence with the best aftermarket accessories that work with the brand you pick. Mixing brands works, but staying within one ecosystem keeps the clamps and bolts consistent.
Frequently Asked Questions
What tablesaw fence upgrades are recommended?
The most recommended upgrades are T-square style fences like the Delta 36-T30T3 for precision, Biesemeyer style rails for repeatability, and clamp-on T-track fences like the BOW XT XTENDER for older contractor saws. Pick based on whether your saw needs drilling for a new rail or whether a clamp-on solution will work with your existing fence.
Will these fences fit my old Craftsman 113 table saw?
Most aftermarket T-square fences fit the Craftsman 113 with some drilling and tapping. The Delta 36-T30T3 fits with new mounting holes drilled, and Biesemeyer style rails also work. Clamp-on solutions like the BOW XT XTENDER fit without any modification since they attach to your existing fence face.
Can I build my own DIY table saw fence?
Yes, a Biesemeyer style T-square fence can be built at home with square tubing, a flat bar, and a clamping handle. You will need a drill press, a way to cut straight and square, and a flat reference surface to assemble against. A DIY fence costs a fraction of a commercial unit and can match the precision if you take your time.
Is a 50-inch rail worth the extra space?
A 50 inch rail gives you the rip capacity to break down 4×8 sheet goods in a single pass without a roller table. It is worth the space if you regularly work with plywood, MDF, or full sheets. For hobby work that mostly uses shorter boards, a 36 inch rail keeps the saw footprint smaller and leaves more room in the shop.
What is the difference between a fence and a rip fence?
A rip fence is the fence used for rip cuts, meaning cuts that go with the grain of the wood. A table saw fence is the broader category that includes rip fences, auxiliary fences, and outfeed fences. On a table saw, the term fence almost always means the rip fence that rides parallel to the blade.
Final Verdict
After six weeks of testing, the Delta 36-T30T3 remains our top pick for the best table saw fences for upgrades. Its three-point locking system, 1/64 inch factory accuracy, and 30 inch rip capacity handle the widest range of saws and projects.
For Delta Uni-Saw owners, the Peachtree Uni Style is the most precise drop-in. For BOW fans who want the complete safety bundle in one box, the Ultimate Kit delivers excellent value. Whichever fence you pick, you will spend less time fighting drift and more time making clean cuts.
