If you are standing in your garage right now wondering whether it is worth the effort to insulate it, the short answer is almost always yes. Learning how to insulate a garage is one of those weekend projects that pays for itself through lower energy bills, a more comfortable workspace, and better protection for everything you store inside. Whether you are converting your garage into a home gym, setting up a workshop, or simply tired of walking into a freezing box every winter morning, this guide walks you through every step.

Our team has researched and compiled the most complete guide possible for 2026, pulling from real DIY experiences, building code requirements, and climate-specific recommendations. We cover every surface — walls, ceiling, and the garage door — plus material comparisons, R-value guidance, cost breakdowns, and the one thing most guides skip: how to handle a garage that already has drywall on the walls.

By the time you finish reading, you will know exactly which materials to buy, what R-value your garage needs based on where you live, and how to tackle each step with confidence. Let’s get into it.

Why Insulate Your Garage

The biggest reason homeowners give for wanting garage insulation is temperature control, and that makes sense. An uninsulated attached garage acts like a thermal sponge, absorbing summer heat and winter cold, then transferring those extremes right into the house through shared walls. Studies show that insulating an attached garage can reduce adjacent room heat loss by 10 to 20 percent depending on your climate.

But energy savings are only part of the picture. If you use your garage as a workshop, home gym, or hobby space, insulation makes it usable year-round instead of just during spring and fall. Mineral wool and fiberglass batts also provide meaningful noise reduction, which matters if you are running power tools at 9 PM or your teenager has a band.

Temperature stability protects what you store, too. Paint, electronics, musical instruments, and canned goods all degrade faster when subjected to wide temperature swings. Even lawn equipment and car batteries last longer in a space that stays above freezing.

Should You Insulate an Unheated Garage?

This is one of the most debated questions in home improvement forums, and the answer depends on your situation. If your garage is attached to your house, insulating the shared wall and ceiling slows heat transfer from your living space, which saves energy regardless of whether the garage itself has a heater. For detached garages, insulation still helps by reducing temperature swings that cause condensation and moisture damage.

If you plan to add a heat source later — even something as simple as a portable heater or a mini split system — insulation is what makes that heat source effective. Without it, you are just pumping warm air into a sieve.

Types of Insulation Materials for Your Garage

Choosing the right insulation material is the first real decision you will make, and it comes down to three factors: your budget, the area you are insulating, and whether the stud cavities are exposed or covered with drywall. Here is a breakdown of the five main options.

Fiberglass Batts

Fiberglass batts are the most popular garage insulation material for good reason. They are affordable, widely available, and easy enough for a first-time DIYer to install between studs and ceiling joists. Standard batts come in pre-cut widths that fit 16-inch or 24-inch on-center framing, and they carry R-values between R-11 and R-38 depending on thickness.

The downside is that fiberglass does not seal air gaps on its own. If you have cracks around windows, plumbing penetrations, or electrical boxes, air will still move through them. You need to seal those separately with caulk or expanding foam before installing the batts. Fiberglass also irritates skin and lungs during installation, so wear a long-sleeved shirt, safety glasses, and an N95 mask.

Rigid Foam Board

Rigid foam board insulation offers the highest R-value per inch of any material, making it ideal when you have limited cavity depth or want to add a thermal break over studs. The three main types are XPS (extruded polystyrene, R-5 per inch), EPS (expanded polystyrene, R-3.6 to R-4.2 per inch), and polyiso (polyisocyanurate, R-6 to R-6.5 per inch).

Foam board works especially well on garage doors, concrete stem walls, and as continuous insulation over framed walls before drywall. It cuts with a utility knife or fine-tooth saw, and the edges can be sealed with tape designed for foam board. The main drawback is cost — rigid foam is significantly more expensive per square foot than fiberglass batts.

Spray Foam Insulation

Spray foam is the gold standard for air sealing and insulation in one step. Closed-cell spray foam delivers roughly R-6.5 per inch and creates an impermeable air and moisture barrier. Open-cell spray foam is softer, cheaper at about R-3.7 per inch, and better for sound dampening but does not block moisture the way closed-cell does.

The catch is that professional spray foam installation is expensive, and DIY spray foam kits are messy and inconsistent. For most homeowners, spray foam makes the most sense as a spot treatment for rim joists, hard-to-reach areas, or as a complete solution when budget allows. If you are doing a full garage conversion to living space, closed-cell spray foam on the walls and ceiling is hard to beat.

Mineral Wool

Mineral wool batts (sometimes called rock wool) install similarly to fiberglass but offer three distinct advantages: they are fire resistant up to 2,150 degrees Fahrenheit, they provide better sound absorption, and they do not sag over time. Mineral wool carries an R-value of about R-3.3 per inch, slightly higher than standard fiberglass.

I recommend mineral wool for garages used as workshops or home gyms where fire resistance and noise control matter. It costs more than fiberglass but less than spray foam, placing it in a sweet spot for many homeowners.

Cellulose and Blown-In Insulation

Cellulose insulation is made from recycled paper treated with fire retardants and is typically blown into wall cavities or attic spaces. It is an eco-friendly choice with an R-value around R-3.5 per inch, and it fills gaps more completely than batts because it conforms to irregular spaces.

For garages with existing drywall, blown-in cellulose is one of the few options that does not require tearing down walls. Small holes are drilled, the material is blown in, and the holes are patched. The downside is that you generally need to rent a blowing machine or hire a professional, which adds cost.

Reflective Insulation

Reflective insulation (often sold as double bubble or radiant barrier) claims high R-values by reflecting radiant heat, but real-world performance depends heavily on having a proper air gap. Forum users consistently report that Reflectix and similar products provide minimal benefit in garage door applications without that gap. I mention it here because you will see it marketed heavily, but in most climates, rigid foam board outperforms reflective insulation for garage doors.

Understanding R-Values and Climate Zone Requirements

R-value measures a material’s resistance to heat flow. The higher the R-value, the better the insulation performs at slowing heat transfer. But knowing the number is not enough — you need to know what R-value your garage actually needs based on your climate zone and the surface you are insulating.

The International Energy Conservation Code divides the United States into eight climate zones, with Zone 1 being the warmest (South Florida, Hawaii) and Zone 8 being the coldest (parts of Alaska). Here is what the Department of Energy recommends for garage insulation by zone.

Recommended R-Values by Climate Zone

For garage walls, Zones 1 through 3 generally call for R-13 to R-15 insulation. Zones 4 and 5 need R-15 to R-21. Zones 6 through 8 should target R-21 or higher, with some cold-climate builders going up to R-25 using a combination of cavity insulation and continuous rigid foam.

For garage ceilings, the requirements jump significantly because heat rises. Zones 1 through 3 need R-30 to R-38. Zones 4 and 5 should use R-38 to R-49. Zones 6 through 8 call for R-49 to R-60 if the garage has a full attic above it. If the ceiling has limited depth, you can layer rigid foam board below the joists to reach the target.

For garage doors, the practical range is R-6 to R-12 because most residential doors have panels only 1.75 to 2 inches thick. A foam board insulation kit typically adds R-4 to R-8 to a non-insulated door.

Vapor Barrier Placement by Climate

This is where many DIYers make a costly mistake. A vapor barrier (also called a vapor retarder) prevents moisture from traveling through the wall assembly and condensing inside the insulation where it can cause mold and rot. The correct placement depends entirely on your climate.

In cold climates (Zones 4 through 8), the vapor barrier goes on the warm-in-winter side of the insulation — meaning it faces the interior of the garage. In hot-humid climates (Zones 1 through 3), the vapor barrier typically goes on the exterior side, or you use a vapor-permeable approach with no interior vapor barrier at all. In mixed climates (the middle of Zone 3 into Zone 4), a smart vapor retarder that adjusts its permeability based on humidity is often the safest choice.

If you get this wrong, moisture gets trapped in the wall cavity, and you could end up with mold growth behind your drywall within a year or two. Check your local building code for specific requirements before you start.

Tools and Materials You Will Need

Before you start, gather everything in one place so you are not making hardware store runs halfway through the job. Here is a complete checklist.

Safety Gear

N95 respirator mask (mandatory for fiberglass and mineral wool work), safety glasses, work gloves, long-sleeved shirt, and a hat or hood to keep fibers out of your hair. If you are working in a dusty garage, add knee pads because you will spend a lot of time crouched near the floor.

Tools

Utility knife with extra blades (you will go through them cutting fiberglass), measuring tape, straight edge or T-square for clean cuts, staple gun with half-inch staples, caulking gun, putty knife, hammer, and a step ladder or scaffolding for ceiling work. A foam saw or fine-tooth hand saw is needed if you are cutting rigid foam board.

Materials

Your chosen insulation (fiberglass batts, rigid foam board, or mineral wool), vapor barrier plastic sheeting if required by your climate zone, fiberglass mesh tape or foam board tape for sealing seams, expanding spray foam for gaps around windows and penetrations, silicone caulk for small cracks, and your wall covering of choice (drywall, OSB, or PVC panels). Buy about 10 percent more insulation than your square footage calculation to account for waste and mistakes.

How to Insulate Garage Walls: Step by Step

Wall insulation is the core of any garage insulation project, and it is where you will spend most of your time and budget. Follow these steps in order and you will get professional-quality results even if you have never done this before.

Step 1: Clear and Prep the Walls

Remove everything from the garage walls. Take off any existing shelving, pegboard, nails, screws, and old insulation. If there is damaged drywall, remove it now so you can see the stud cavities. You need completely clear access from floor to ceiling along every wall you plan to insulate. Sweep the wall surfaces and vacuum out the stud bays to remove dust and cobwebs.

Step 2: Seal All Air Leaks

This step is more important than the insulation itself. Air leaks account for up to 40 percent of energy loss in uninsulated spaces. Go around every wall with a flashlight and look for gaps around electrical boxes, plumbing penetrations, window frames, and where the wall meets the floor and ceiling.

Fill small gaps (under a quarter inch) with silicone caulk. Fill medium gaps (up to an inch) with minimal expanding spray foam — use the minimal expanding type around windows and doors so it does not bow the frame. Large gaps around the sill plate or rim joist may need backer rod and caulk or canned spray foam. Do not skip this step. Insulation without air sealing is like wearing a winter coat with the zipper open.

Step 3: Install the Vapor Barrier (If Required)

Based on your climate zone, install the vapor barrier on the correct side of the wall. For cold climates, staple 6-mil polyethylene sheeting directly to the interior face of the studs, overlapping seams by at least 6 inches and sealing them with tape rated for poly sheeting. Run the plastic from the floor plate to the top plate and seal all edges with acoustic sealant or tape.

For hot-humid climates, skip the interior vapor barrier entirely or use a vapor-permeable house wrap on the exterior side. For mixed climates, use a smart vapor retarder like MemBrain or Intello Plus that adapts to seasonal conditions. When in doubt, check with your local building department — a five-minute phone call can save you thousands in moisture damage repairs.

Step 4: Measure and Cut the Insulation

Measure each stud cavity individually. Stud spacing is rarely perfectly even, especially in older garages. Measure the width between studs and the height from bottom plate to top plate. Unroll your fiberglass batts on a clean, flat surface and cut them with a utility knife using a straight edge as a guide. Cut the batt about a half-inch wider and a half-inch taller than the cavity measurement so it fits snugly without gaps.

For outlets and switches, press the insulation against the box, mark the outline, and cut a notch. For pipes or wires, split the batt and tuck half behind the obstruction and half in front. Never compress fiberglass to fit around obstacles — compressed fiberglass loses R-value.

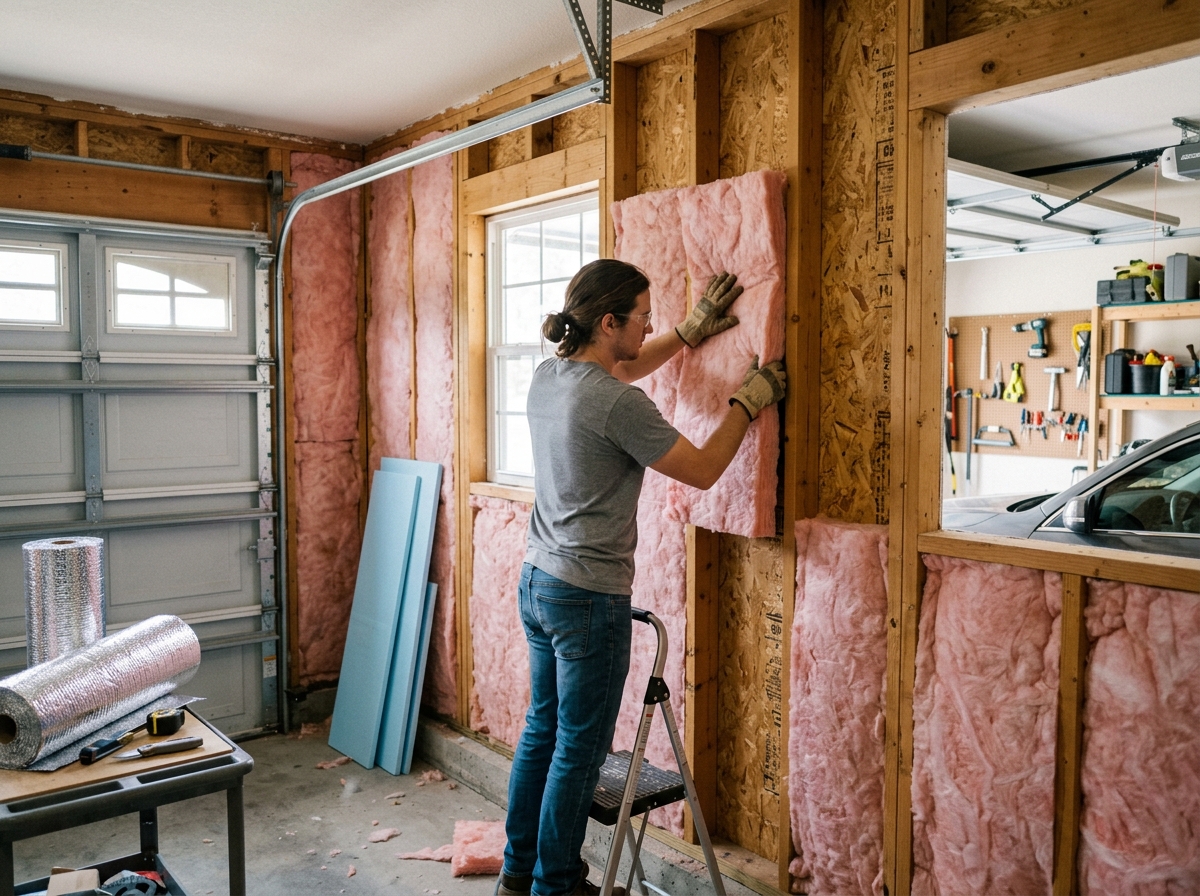

Step 5: Fit Insulation Into Stud Cavities

Start at the top of the cavity and press the insulation in, working your way down. The friction fit should hold the batts in place if you cut them correctly. For batts with a facing (kraft paper or foil), the facing goes toward the warm side — which in cold climates means facing inward toward the garage interior.

Push the insulation all the way into the cavity so it touches the exterior sheathing, but do not compress it. The full thickness needs to be maintained for the rated R-value. Any gaps, voids, or compressed areas create thermal shortcuts that significantly reduce the wall’s overall performance.

Step 6: Secure and Tape Seams

Staple the flanges of faced insulation to the inside edge (not the face) of the studs, spacing staples every 8 to 10 inches. If you are using unfaced batts with a separate vapor barrier, staple the plastic sheeting to the stud faces. Tape all seams in the vapor barrier with contractor tape rated for the material. Seal around electrical boxes by cutting an X in the plastic and folding the flaps around the box, then taping the edges.

Step 7: Install the Wall Covering

Insulation must be covered with an approved wall finish for fire safety. Standard half-inch drywall is the most common choice and provides an additional 30 minutes of fire rating. OSB (oriented strand board) is another popular garage option because it holds screws well for shelving and pegboard. PVC panels are gaining popularity as a drywall alternative because they are waterproof, easy to clean, and install with screws directly over the insulation.

Whichever material you choose, fasten it to the studs with appropriate screws — drywall screws for drywall, deck screws for OSB, and manufacturer-recommended fasteners for PVC panels. Tape and mud the drywall seams as you would in any interior room.

How to Insulate a Garage Ceiling

Ceiling insulation is just as important as wall insulation, and in many cases more so. Hot air rises, which means your ceiling is the primary escape route for heated air in winter. If your garage has an attic space above it, you have more options for reaching higher R-values.

Insulating From the Attic (Preferred Method)

If you have access to the attic above your garage, lay unfaced fiberglass batts between the ceiling joists, then add a second layer perpendicular to the first to achieve your target R-value without gaps. This is called cross-laying, and it eliminates the thermal bridging that occurs where insulation is missing at the joist locations.

Alternatively, blow in cellulose or loose-fill fiberglass to a uniform depth across the entire attic floor. Blown-in insulation conforms around joists and wiring, filling gaps that batts leave behind. Most home improvement stores rent blowing machines for a half-day fee when you buy the insulation from them.

Insulating From Below (No Attic Access)

When there is no attic access — such as with a cathedral ceiling or a finished ceiling below a room — your options narrow. Rigid foam board attached directly to the ceiling surface is the most practical DIY approach. Use construction adhesive and mechanical fasteners to attach two-inch polyiso or XPS panels, tape all seams with foil tape, then cover with drywall or a decorative ceiling system.

For deeper cavities with exposed ceiling joists, fit fiberglass batts between the joists exactly as you did for the walls. If the joists are shallow (2×6 or less), consider furring down the ceiling with additional framing to accommodate thicker insulation, or add a layer of rigid foam below the joists for a continuous thermal break.

Ventilation Matters

Do not block soffit vents or attic ventilation when insulating the ceiling. Proper attic ventilation prevents moisture buildup that can rot the roof deck. Install rafter vents (also called baffles) in every rafter bay where soffit vents exist, pushing insulation back and maintaining an air channel from the soffit to the attic space above the insulation.

How to Insulate a Garage Door

The garage door is often the weakest thermal link in the entire garage. Most standard steel doors have no insulation at all, just two thin sheets of metal with air between them. Even insulated doors from the factory often carry only R-6 to R-8, which is below what the rest of your garage walls will have.

DIY Foam Board Panels

The most effective DIY garage door insulation uses rigid foam board panels cut to fit inside each door panel section. Measure the interior dimensions of each panel section — they are usually not all identical, so measure every one. Cut 1.5-inch or 2-inch thick XPS or EPS panels about a quarter-inch smaller than the opening to allow for expansion. Press each panel into place, using a small amount of construction adhesive or panel retainer clips to keep it secure.

This method adds R-5 to R-10 to your garage door depending on the foam thickness. It is cheap, fast, and makes a noticeable difference. The key consideration is weight — adding 40 to 60 pounds of foam board to a standard garage door means the spring tension needs adjustment. If your door feels heavy or the opener struggles, call a garage door technician to re-tension the springs. This is not optional for safety reasons.

Insulation Kits

Pre-made garage door insulation kits like the Owens Corning Garage Door Insulation Kit come with pre-cut panels and retainer pins. They are faster than cutting your own foam board but generally deliver lower R-values (R-4 to R-6) because the material is thinner. Kits work well for mild climates or as a quick improvement when you do not want to cut custom panels.

Weatherstripping the Perimeter

No amount of door insulation matters if air is pouring through the gaps around the edges. Replace the bottom weatherstrip (the rubber seal along the bottom of the door) if it is cracked or missing. Install or replace the stop molding weatherstrip along the sides and top of the door frame. This alone can cut drafts significantly and takes about 30 minutes with a hammer and nails.

How to Insulate a Garage That Already Has Drywall

This is the scenario most guides ignore, but it comes up constantly in DIY forums. You bought a house with a finished garage, there is no insulation in the walls, and you do not want to tear out perfectly good drywall. You have three options.

Blown-In Insulation

The most common approach is blown-in cellulose or fiberglass. Small holes (typically 2 inches) are drilled into the top of each stud cavity — either through the drywall face or from above if the top plate is accessible in the attic. A blowing machine fills the cavity from bottom to top, and the holes are plugged with plastic caps or patched with drywall compound.

This method works well for uninsulated walls hidden behind drywall. You can rent a blowing machine from most home improvement stores, or hire a professional insulation company for the job. Professional installation typically costs more but is faster and provides a more consistent fill density.

Rigid Foam Over Existing Drywall

Another option is to layer rigid foam board directly over the existing drywall, then add a new layer of drywall on top. This approach adds R-5 to R-10 of continuous insulation without disturbing the existing wall. The downside is that it reduces the interior garage dimensions by 2 to 3 inches on each wall, and you need to extend electrical boxes, window trim, and door frames to accommodate the added depth.

Injection Foam

Injection foam insulation is a specialty product that is pumped into wall cavities through small holes, similar to blown-in cellulose. It expands to fill the cavity completely, providing both insulation and air sealing in one step. Injection foam is more expensive than cellulose but offers higher R-values and better air sealing. It requires professional installation.

Garage Insulation Cost Breakdown

Cost is naturally one of the biggest factors in any garage insulation project. Here is a realistic breakdown based on national averages for material costs and professional installation.

Material Cost Per Square Foot

Fiberglass batts run the cheapest at roughly $0.30 to $0.80 per square foot for R-13 to R-19. Mineral wool batts cost about $0.50 to $1.10 per square foot. Rigid foam board ranges from $0.60 to $1.50 per square foot depending on type and thickness. Spray foam is the most expensive at $1.00 to $2.50 per square foot for open-cell and $1.50 to $3.50 per square foot for closed-cell. Blown-in cellulose sits in the middle at about $0.50 to $1.00 per square foot installed.

Total Project Cost by Garage Size

For a standard single-car garage (approximately 240 square feet of wall and ceiling surface), a complete DIY fiberglass insulation project typically costs between $400 and $800 in materials. A two-car garage (roughly 500 square feet of surface area) runs $800 to $1,600 in materials. Add $300 to $600 for drywall, fasteners, vapor barrier, and miscellaneous supplies.

Professional installation roughly doubles the material cost. Expect to pay $1,500 to $3,000 for a professionally insulated two-car garage with drywall, depending on your location and the insulation type chosen. Spray foam projects push toward the higher end of that range.

DIY vs Professional Installation

Fiberglass batts, rigid foam board, and mineral wool are all realistic DIY materials if you are comfortable with basic tools and measuring. Spray foam and blown-in insulation are better left to professionals unless you have specific experience. The savings from DIY installation on a two-car garage are typically $800 to $1,500 compared to hiring a contractor for the same materials.

Common Mistakes to Avoid When Insulating a Garage

After years of reading forum posts from homeowners who have done this project, a few mistakes come up over and over. Learn from their experience.

Skipping air sealing. This is the number one error. Insulation slows conducted heat, but it does almost nothing to stop air movement. Seal every crack, gap, and penetration before you install any insulation.

Compressing insulation. Fiberglass and mineral wool work by trapping still air in millions of tiny pockets. When you compress the material to fit into a tight space, you eliminate those pockets and the R-value drops. If the cavity is too narrow for the R-value you want, use rigid foam board instead.

Wrong vapor barrier placement. Putting the vapor barrier on the wrong side of the wall traps moisture inside the cavity. In cold climates, it goes on the warm (interior) side. In hot-humid climates, it goes on the exterior or is omitted entirely. Getting this wrong can cause mold within a year.

Ignoring garage door springs. Adding insulation panels to a garage door adds significant weight. If the torsion springs are not adjusted to compensate, the door can become dangerous — it may not stay open, the opener can burn out, or the door can crash down unexpectedly.

Blocking attic ventilation. Stuffing insulation tight against the roof deck or covering soffit vents cuts off the airflow that keeps your attic dry. Always install rafter baffles to maintain ventilation channels.

Conclusion

Learning how to insulate a garage is one of the most rewarding home improvement projects you can take on as a homeowner. The process is straightforward: seal air leaks, choose the right insulation for each surface, install it carefully without compressing or leaving gaps, and cover it with an approved finish. Do not forget to adjust your garage door springs if you add insulation panels, and always place the vapor barrier on the correct side for your climate.

Whether you are insulating exposed stud walls in a bare garage, adding foam board to your garage door, or figuring out how to fill walls that already have drywall, the principles are the same. Measure twice, cut carefully, seal everything, and take your time. Your future self — standing in a garage that is actually comfortable in January — will thank you for the effort you put in today.

Start by assessing your garage, identifying which surfaces need insulation, and calculating your square footage. From there, choosing materials and getting to work is just a weekend away.
