There is nothing quite like turning on the shower and getting hit with a blast of cold water. If you are standing there wondering what went wrong, the fix might be as simple as pressing a single button. Learning how to reset a water heater is one of those home maintenance skills that can save you a service call and get your hot water flowing again in under an hour.

Most electric water heaters have a built-in safety feature called the high-limit switch. When something goes wrong — a power surge, a faulty thermostat, or a overheating event — this switch trips and cuts power to the heating elements. The result is no hot water until you manually reset it.

In this guide, I will walk you through the exact reset process for both electric and gas water heaters. I will also cover why the reset button trips in the first place, what to do when the button will not push back in, and clear warning signs that tell you it is time to call a licensed plumber rather than handle it yourself.

What Is the Water Heater Reset Button

The reset button on a water heater is part of a safety device known as the high-limit switch, also called the ECO (energy cutoff) switch. Its job is straightforward: shut off power to the heating elements when the water temperature climbs above a safe threshold, typically around 180 degrees Fahrenheit.

Think of it like a circuit breaker inside your water heater. Under normal conditions, electricity flows through the thermostat to the heating elements, keeping your water at the set temperature (usually 120 degrees). But if the thermostat malfunctions or a component fails, water temperature can spike dangerously. The high-limit switch detects this and trips, breaking the electrical circuit.

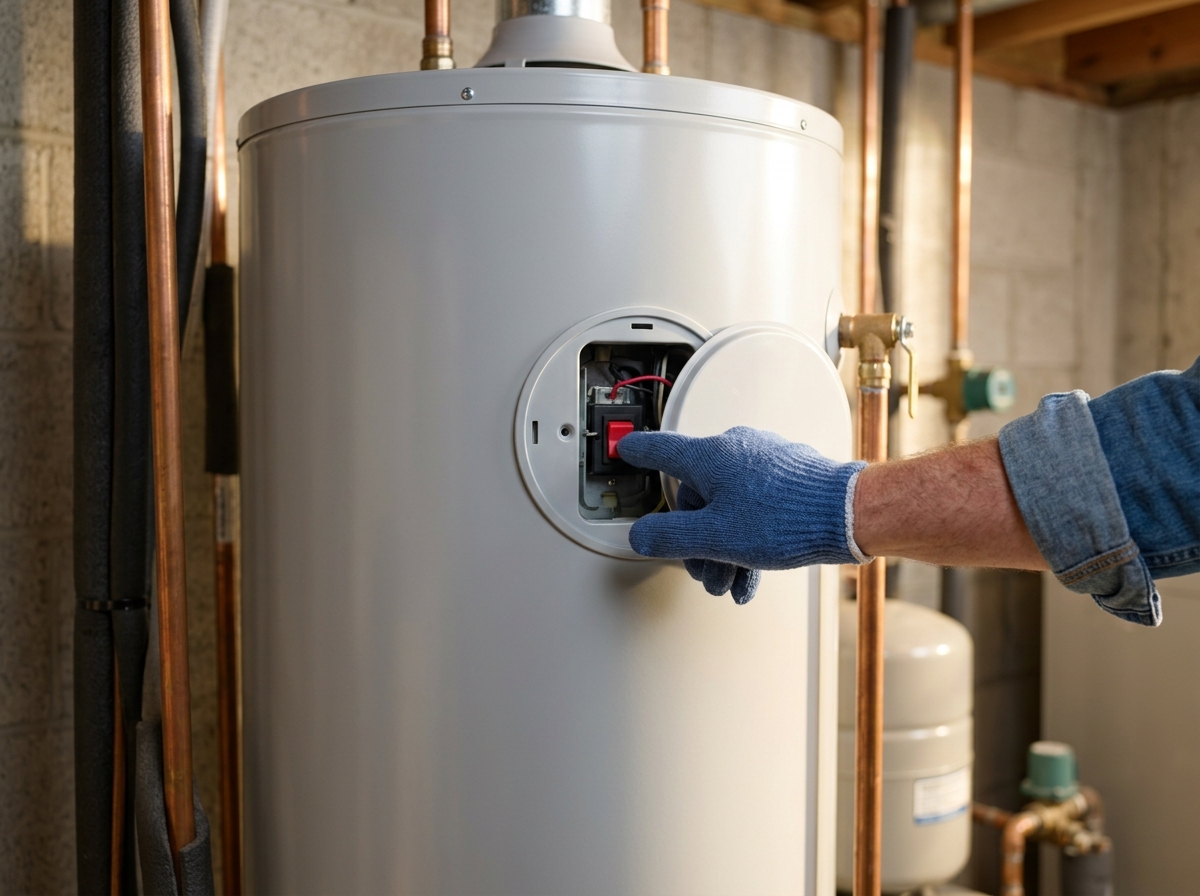

On most electric water heaters, the reset button is a small red button located behind the upper access panel. You will find it mounted directly on the upper thermostat. Some models may have a second reset button on the lower thermostat behind a second access panel near the bottom of the tank.

Gas water heaters work differently. Instead of an electrical reset button, they rely on a pilot light and a thermocouple or flame sensor. When the pilot light goes out, the gas valve shuts off automatically as a safety measure. Resetting a gas water heater means relighting that pilot light rather than pressing a button.

Safety First: Turn Off Power Before You Start

Before you touch anything on your water heater, you must kill the power. This is not optional. Water heaters run on 240-volt circuits, and contact with live wires can cause serious injury or worse.

Head to your electrical panel and find the breaker labeled for the water heater. Flip it to the OFF position. If your panel is not clearly labeled, look for a double-pole breaker (two switches connected together) — that is almost certainly your water heater circuit.

Once the breaker is off, verify the power is actually dead. The safest way is using a non-contact voltage tester or a multimeter at the water heater connections. If you do not have either tool, simply try running a hot faucet for a few minutes. If the water does not get hot after a few minutes and the unit is completely silent, the power is likely off. However, I strongly recommend investing in a basic voltage tester — they cost around 15 dollars and take the guesswork out of this step.

For gas water heaters, you do not need to shut off the electrical breaker, but you should turn the gas control valve to the PILOT or OFF position before doing any work on the unit.

How to Reset an Electric Water Heater (Step-by-Step)

Resetting an electric water heater is a simple process once the power is off. Here is the exact step-by-step procedure I follow every time.

Step 1: Confirm the Power Is Off

Double-check that the circuit breaker for the water heater is in the OFF position. I cannot stress this enough — never remove an access panel or touch any wiring with the power still on. Use a voltage tester at the junction box on top of the heater to confirm there is no live current.

Step 2: Remove the Upper Access Panel

Locate the metal access panel on the side of the water heater near the top. It is usually held in place by one or two screws. Remove the screws and take off the panel. Behind it, you will see insulation and possibly a plastic cover. Push the insulation aside carefully to reveal the upper thermostat.

Step 3: Find and Press the Red Reset Button

Look at the face of the upper thermostat. You should see a small red button, usually labeled “RESET” or marked with a raised ridge. Press this button firmly. You should feel a click when it engages. That click tells you the high-limit switch has been reset and the electrical circuit is reconnected.

If the button is already depressed (flush with the thermostat face), it was not tripped. In that case, your no-hot-water problem lies elsewhere — possibly a tripped breaker, a failed heating element, or a bad thermostat.

Step 4: Replace the Panel and Restore Power

Put the insulation and plastic cover back in place. Reinstall the metal access panel and tighten the screws. Then go back to your electrical panel and flip the water heater breaker back to the ON position.

Step 5: Wait for the Water to Heat Up

A standard 40- to 50-gallon electric water heater takes about 60 to 90 minutes to fully reheat from cold. You should start feeling warm water at the tap within 30 to 45 minutes, but full recovery takes longer. Resist the urge to keep checking — every time you run hot water, you introduce cold water into the tank, which extends the recovery time.

How to Reset a Gas Water Heater (Pilot Light Reset)

Gas water heaters do not have a reset button in the same way electric models do. When a gas heater stops working, the problem is almost always a blown-out pilot light or a tripped thermal switch. Here is how to get it running again.

Relighting the Pilot Light

Find the gas control valve at the bottom front of the water heater. Turn the knob to the OFF position and wait about five minutes to let any residual gas dissipate. Then turn the knob to the PILOT position.

For newer models with a piezo igniter: Press and hold the pilot button while repeatedly clicking the igniter until you see the pilot flame through the viewing window. Continue holding the pilot button for 30 to 60 seconds after the flame lights, then release it slowly. If the flame stays lit, turn the gas control knob to the ON position.

For older models without an igniter: You will need a long lighter or match. Remove the outer and inner access covers at the bottom of the heater. Hold a flame near the pilot tube while pressing the pilot button. Once lit, hold the button for 60 seconds and release. Replace the covers and turn the knob to ON.

If the Pilot Will Not Stay Lit

If the pilot flame goes out the moment you release the button, the thermocouple is likely faulty. The thermocouple is a small sensor that detects the pilot flame and keeps the gas valve open. When it fails, the gas valve shuts off as a safety measure. Replacing a thermocouple is a relatively inexpensive repair, but if you are not comfortable working with gas lines, this is a good time to call a professional.

Some newer gas water heaters use a sealed combustion system with a flame sensor rod instead of a traditional thermocouple. These can sometimes be cleaned with fine sandpaper to restore proper function, but a bad sensor will need replacement.

Common Reasons the Reset Button Trips

Understanding why the high-limit switch tripped helps you decide whether a simple reset fixes the problem or if something deeper is going on. Here are the most common causes.

Power Surge or Electrical Spike

A thunderstorm, a utility grid fluctuation, or a lightning strike nearby can send a voltage spike through your electrical system. The high-limit switch trips as a protective response. If this is the cause, a single reset usually solves the problem and you are good to go.

Sediment Buildup in the Tank

Over time, minerals in your water supply settle at the bottom of the tank. This sediment layer acts as insulation between the heating element and the water, causing the element to overheat. The high-limit switch detects the excess heat and trips. If your water heater pops, bangs, or rumbles during heating, sediment buildup is likely the culprit.

Faulty Heating Element

Electric water heaters have two heating elements — one upper and one lower. When an element cracks or its electrical insulation breaks down, it can short to ground through the water. This electrical fault trips the high-limit switch almost immediately after you reset it. If the reset button trips repeatedly, a grounded heating element is one of the first things to check.

Bad Thermostat

The thermostat controls when the heating elements turn on and off. If it sticks in the ON position, the elements keep heating nonstop, the water temperature climbs past the safe limit, and the high-limit switch trips. A sticking thermostat will cause the reset button to trip again and again until the thermostat is replaced.

Loose or Corroded Wiring

Loose wire connections at the thermostat, heating elements, or junction box can create electrical resistance. That resistance generates heat, which can trip the high-limit switch. Corroded connections have the same effect. A visual inspection often reveals melted wire nuts or discolored terminals when this is the problem.

What to Do If the Reset Button Won’t Push In

One of the most frustrating situations is pressing the reset button and finding that it will not click into place. This almost always means the fault that caused the trip is still active.

The most common reason is a grounded heating element. When the element’s electrical insulation fails, current leaks to the tank through the water. As long as that short circuit exists, the high-limit switch cannot reset. You can test for this with a multimeter: disconnect the wires from the element, set your meter to measure resistance, and check between each element terminal and the tank ground. Any reading other than infinite resistance means the element is grounded and needs replacement.

Another possibility is that the thermostat itself is defective. If the internal contacts are welded shut from arcing, the thermostat continuously calls for heat and the switch cannot reset. In this case, replacing the thermostat solves the problem.

If the button pushes in but immediately pops back out the moment you restore power, stop trying. Repeated reset attempts on a heater with an active fault can damage other components and create a fire hazard. This is the point where I recommend calling a licensed plumber or electrician.

How to Prevent Future Reset Button Trips

A little routine maintenance goes a long way toward keeping your water heater running smoothly and avoiding repeated reset button trips.

Flush the tank annually. Drain several gallons from the bottom of the tank once a year to remove sediment before it builds up. Connect a garden hose to the drain valve at the bottom, run it to a floor drain or outside, and let the water flow until it runs clear. This single step prevents the overheating issues that cause most reset trips.

Set the temperature to 120 degrees Fahrenheit. Higher temperature settings force the heating elements to work harder and more frequently, which increases the chance of overheating and sediment formation. 120 degrees is hot enough for household use and reduces the strain on your system.

Check the anode rod every two to three years. The anode rod sacrifices itself to prevent corrosion inside the tank. When it is fully consumed, the tank itself starts corroding. A corroded tank can cause electrical faults that trigger the high-limit switch. If the rod is more than half worn away, replace it.

Use a surge protector. If your area is prone to power fluctuations, consider having an electrician install a whole-house surge protector. This protects the water heater’s electrical components from voltage spikes that can trip the reset button or damage the thermostat.

When to Call a Professional Plumber

Not every water heater problem is a DIY fix. Here are clear signs that you should stop and bring in a professional.

If the reset button trips again within hours or days after you reset it, there is an underlying component failure that needs professional diagnosis. Continuing to reset it risks damaging the tank, the wiring, or worse.

Visible corrosion on the tank exterior, water pooling around the base, or a burning smell near the unit are all red flags. Corrosion can mean the tank is failing internally, and a burning smell can indicate an electrical hazard. Either situation requires immediate professional attention.

If your water heater is more than 10 to 12 years old and keeps having issues, replacement may be more cost-effective than repeated repairs. A plumber can assess the unit and give you an honest recommendation on repair versus replacement.

Finally, if you are not comfortable working with electrical wiring or gas connections, there is no shame in calling for help. A botched repair on a water heater can cause property damage, scalding injuries, or gas leaks. Professional diagnosis typically costs between 75 and 200 dollars — a worthwhile investment for safety and peace of mind.

Knowing how to reset your water heater is a practical skill that every homeowner should have. The process is straightforward: turn off the power, find the red reset button behind the upper access panel, press it until it clicks, reassemble everything, and restore power. For gas models, the equivalent procedure is relighting the pilot light.

The real key is understanding why the reset button tripped in the first place. A one-time trip from a power outage is nothing to worry about. But repeated trips point to an underlying issue — sediment buildup, a failing heating element, or a bad thermostat — that will not fix itself. If your water heater keeps shutting off or the reset button will not stay engaged, it is time to bring in a professional rather than risk further damage or a safety hazard.
